CAMSHAFT - VALVE

GV1400GD 1988 (J) (E01)

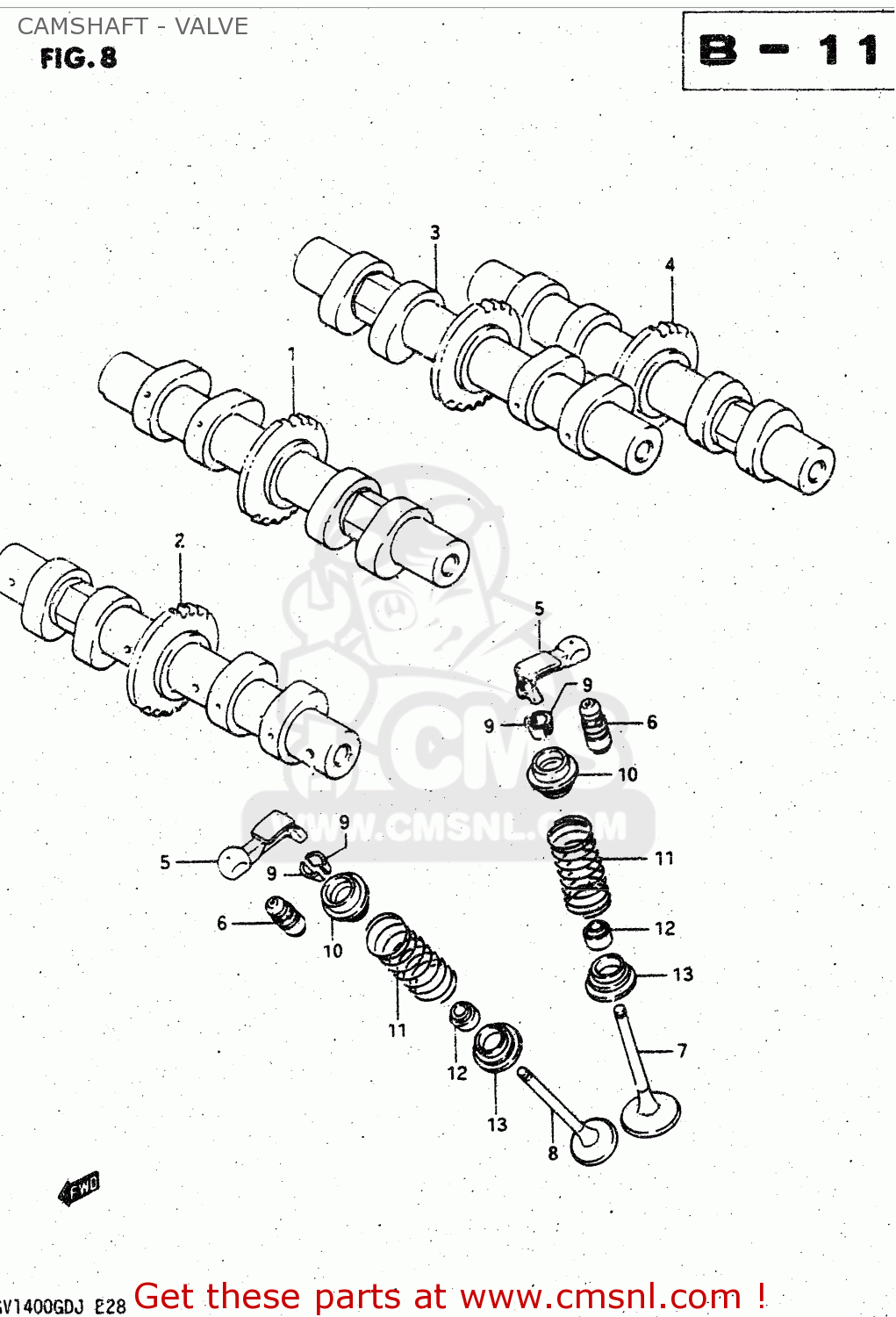

Camshaft - valve Schemat GV1400GD 1988 (J) (E01)

CAMSHAFT - VALVE GV1400GD 1988 (J) (E01)
CAMSHAFT - VALVE GV1400GD 1988 (J) (E01)
ceny są w EUR
Ref
Część #
opis
Ilość
1
1271024A01
Ref: 1
SHAFT COMP,INTAKE FRONT CAM
€ 165.50
2
1272024A01
Ref: 2
SHAFT,EXHAUST FRONT CAM
€ 202.00
3
1271224A01
Ref: 3
SHAFT COMP,INTAKE REAR CAM
€ 176.50
4
1272224A01
Ref: 4
SHAFT,EXHAUST REAR CAM
€ 202.00
5
1284124A00
Ref: 5
ARM,VALVE ROCKER
€ 20.50
6
1286005A00
Ref: 6
ADJUSTER,HYDRAULIC VALVE
€ 45.50
7
1291124A00
Ref: 7
VALVE,INTAKE
1291124A00
€ 14.00
8
1291224A00
Ref: 8
VALVE,EXHAUST
1291224A00
€ 23.50
9
1293227A00
Ref: 9
COTTER VALVE
1293227A00
€ 1.50
10
1293124A01
Ref: 10
RETAINER,VALVE SPRING
€ 6.50
11
1292124A00
Ref: 11
SPRING,VALVE
€ 5.00
12
0928905008
Ref: 12
SEAL,OIL(5X10.5X8.4)
0928905008
€ 4.50
13
1293333200
Ref: 13
SEAT,VALVE SPRING
€ 4.50
