Twój online partscatalog

CLUTCH HOSE

GV1400GC 1987 (H) (E01)

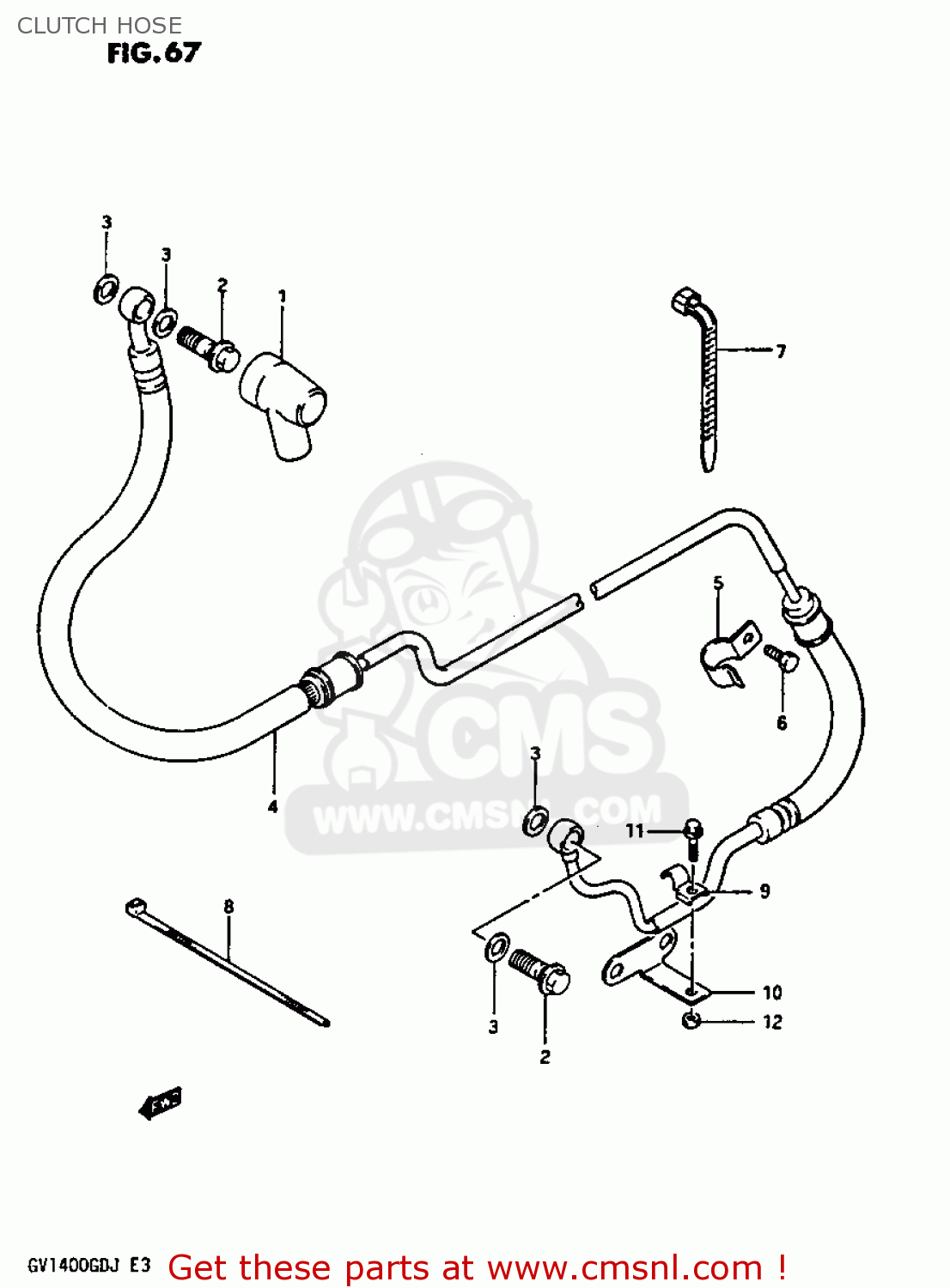

Clutch hose Schemat GV1400GC 1987 (H) (E01)

CLUTCH HOSE GV1400GC 1987 (H) (E01)
CLUTCH HOSE GV1400GC 1987 (H) (E01)
ceny są w EUR
Ref
Część #
opis
Ilość
1
5971118400
Ref: 1
BOOT,MASTER CYLINDER
5971118400
€ 8.00
2
0936010017
Ref: 2
BOLT UNION
0936010017
€ 5.50
3
0916110009
Ref: 3
WASHER(10X15X1.5)
0916110009
€ 1.50
4-1
5991024A04
Ref: 4-1
GV1400GDG/GTG/GDH/GD
HOSE,CLUTCH
€ 341.00
4-2
5991024A20
Ref: 4-2
GV1400GCG/GCH
HOSE,CLUTCH
€ 257.50
5
5954124A10
Ref: 5
GUIDE
€ 3.50
6
0154705087
Ref: 6
BOLT
0154705087
€ 2.00
7
0940718402
Ref: 7
CLAMP(L:165)
0940718402
€ 2.00
8
0940725402
Ref: 8
CLAMP(L:250)
0940725402
€ 4.50
9
5954124A20
Ref: 9
CLAMP, CLUTCH HOSE/GEAR CASE
€ 0.00
10
5954224A00
Ref: 10
CLAMP,CLUTCH HOSE
€ 0.00
11
0151706125
Ref: 11
BOLT 6X12
0151706125
€ 2.00
12
0831931065
Ref: 12
NUT
0831931065
€ 2.00
