TRANSMISSION

GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

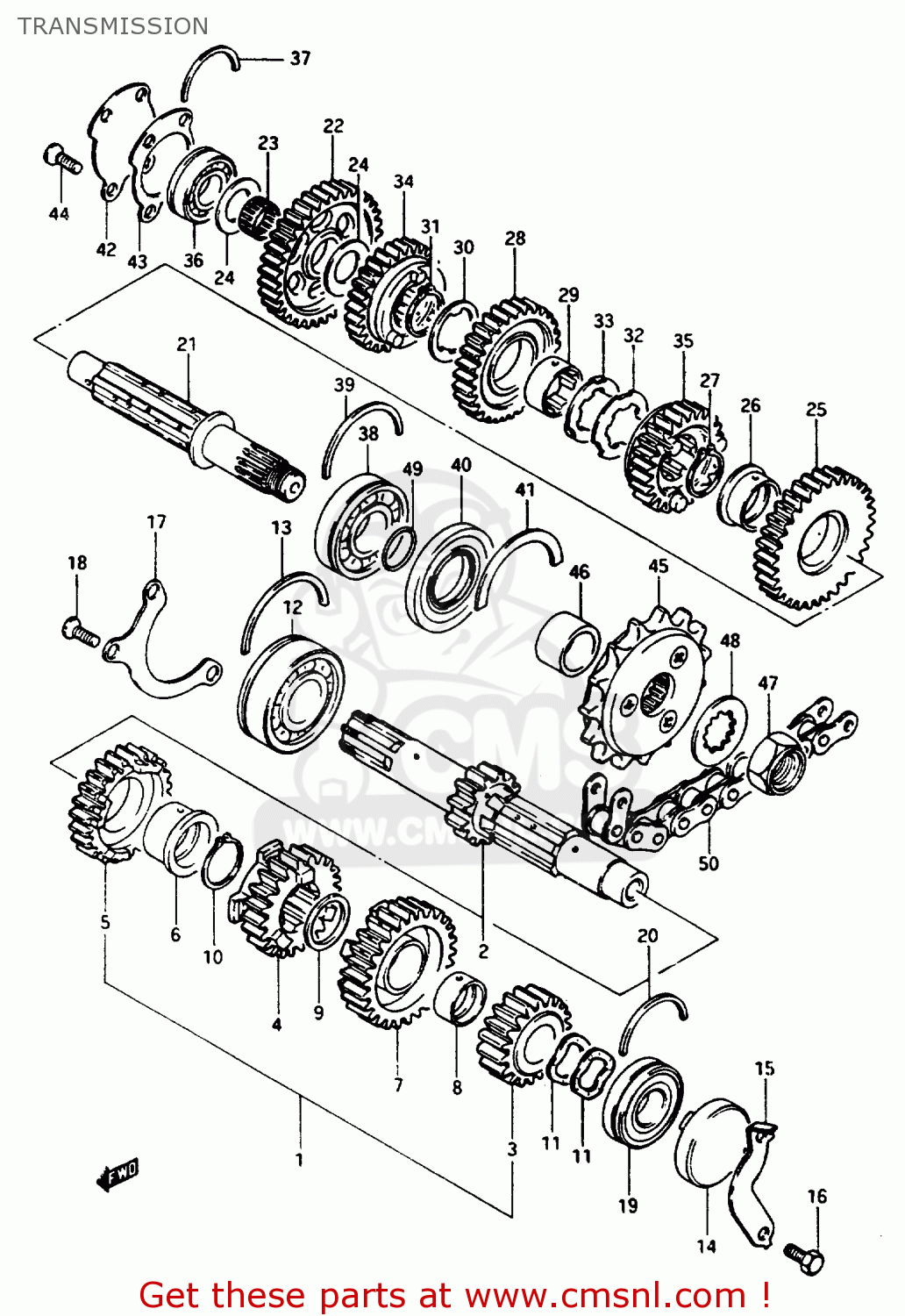

Transmission Schemat GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

TRANSMISSION GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)
TRANSMISSION GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)
ceny są w EUR
Ref
Część #
opis
Ilość
1
2412000A01
Ref: 1
SHAFT,COUNTER
€ 247.50
2
2410000811
Ref: 2
SHAFT,COUNTER
2410000811
€ 180.50
3
2422149202
Ref: 3
GEAR,2ND DRIVE(NT:18)
2422149202
€ 112.50
4
2423149200
Ref: 4
GEAR,3RD DRIVE(NT:21)
2423149200
€ 107.00
5
2424100A00
Ref: 5
GEAR,4TH DRIVE(NT:24)
2424100A00
€ 119.50
6
0930128001
Ref: 6
BUSH(28X32X2)
0930128001
€ 19.50
7
2425100A00
Ref: 7
GEAR,5TH DRIVE(NT:26)
2425100A00
€ 173.00
8
0930022005
Ref: 8
BUSHING
€ 20.50
9
0821122321
Ref: 9
WASHER
0821122321
€ 3.00
10
0833111289
Ref: 10
CIRCLIP
€ 1.50
11
0916420004
Ref: 11
WASHER
0916420004
€ 5.00
12
0926225051
Ref: 12
BEARING(25X62X17)
0926225051
€ 57.50
13
0939062006
Ref: 13
C-RING
0939062006
€ 4.50
14
0924147004
Ref: 14
PLUG
0924147004
€ 12.00
15
2311745000
Ref: 15
RETAINER,CL PUSH ROD OIL SEAL
2311745000
€ 13.00
16
0110706128
Ref: 16
BOLT
0110706128
€ 2.00
17
2474145000
Ref: 17
RETAINER,CNTR SHAFT BEARING
2474145000
€ 7.50
18
0212206168
Ref: 18
SCREW
0212206168
€ 1.50
19
0926220044
Ref: 19
BEARING(20X47X14)
0926220044
€ 29.50
20
0939047003
Ref: 20
C RING
0939047003
€ 2.00
21
2413100A00
Ref: 21
SHAFT,DRIVE
2413100A00
€ 209.50
22
2431149200
Ref: 22
GEAR,FIRST DRIVEN (NT:35)
€ 109.50
23
0926320018
Ref: 23
BEARING(20X24X10).8
0926320018
€ 13.00
24
0821120341
Ref: 24
WASHER
0821120341
€ 2.00
25
2432100A00
Ref: 25
GEAR,2ND DRIVEN(NT:32)
2432100A00
€ 120.50
26
0930128001
Ref: 26
BUSH(28X32X2)
0930128001
€ 19.50
27
0833111289
Ref: 27
CIRCLIP
€ 1.50
28
2433149201
Ref: 28
GEAR,THIRD DRIVEN
€ 116.50
29
2433249000
Ref: 29
BUSH,3RD DRIVEN GEAR
2433249000
€ 14.00
30
0916728001
Ref: 30
WASHER,LOCK
0916728001
€ 3.00
31
0833111289
Ref: 31
CIRCLIP
€ 1.50
32
0916728002
Ref: 32
WASHER,LOCK
0916728002
€ 3.00
33
0916928001
Ref: 33
WASHER
0916928001
€ 3.00
34
2434100A00
Ref: 34
GEAR,4TH DRIVEN(NT:27)
2434100A00
€ 112.50
35
2435100A00
Ref: 35
GEAR,5TH DRIVEN(NT:25)
2435100A00
€ 117.50
36
0926220041
Ref: 36
BEARING
0926220041
€ 29.50
37
0939047003
Ref: 37
C RING
0939047003
€ 2.00
38
0926225068
Ref: 38
BEARING
€ 72.50
39
0939062006
Ref: 39
C-RING
0939062006
€ 4.50
40
0928332027
Ref: 40
SEAL,OIL(32X62X5)
0928332027
€ 13.00
41
0939062008
Ref: 41
C RING
0939062008
€ 3.00
42
2476145000
Ref: 42
PLATE,DRIVE SHAFT
2476145000
€ 4.50
43
2476245000
Ref: 43
GASKET,DRIVESHAFT PLATE (MCA)
2476245000
€ 2.50
44
0212206168
Ref: 44
SCREW
0212206168
€ 1.50
45
2751049011
Ref: 45
SPROCKET,ENGINE
2751049011
€ 59.50
46
0918025074
Ref: 46
SPACER (25X32X21.6)
0918025074
€ 15.50
47
0915920001
Ref: 47
NUT
0915920001
€ 9.50
48
0916725014
Ref: 48
WASHER
0916725014
€ 2.00
49
0928025001
Ref: 49
O RING(D:1,ID:24.5)
0928025001
€ 2.00
50
2760000A20
Ref: 50
CHAIN ASSEMBLY,DRIVE
€ 290.50
