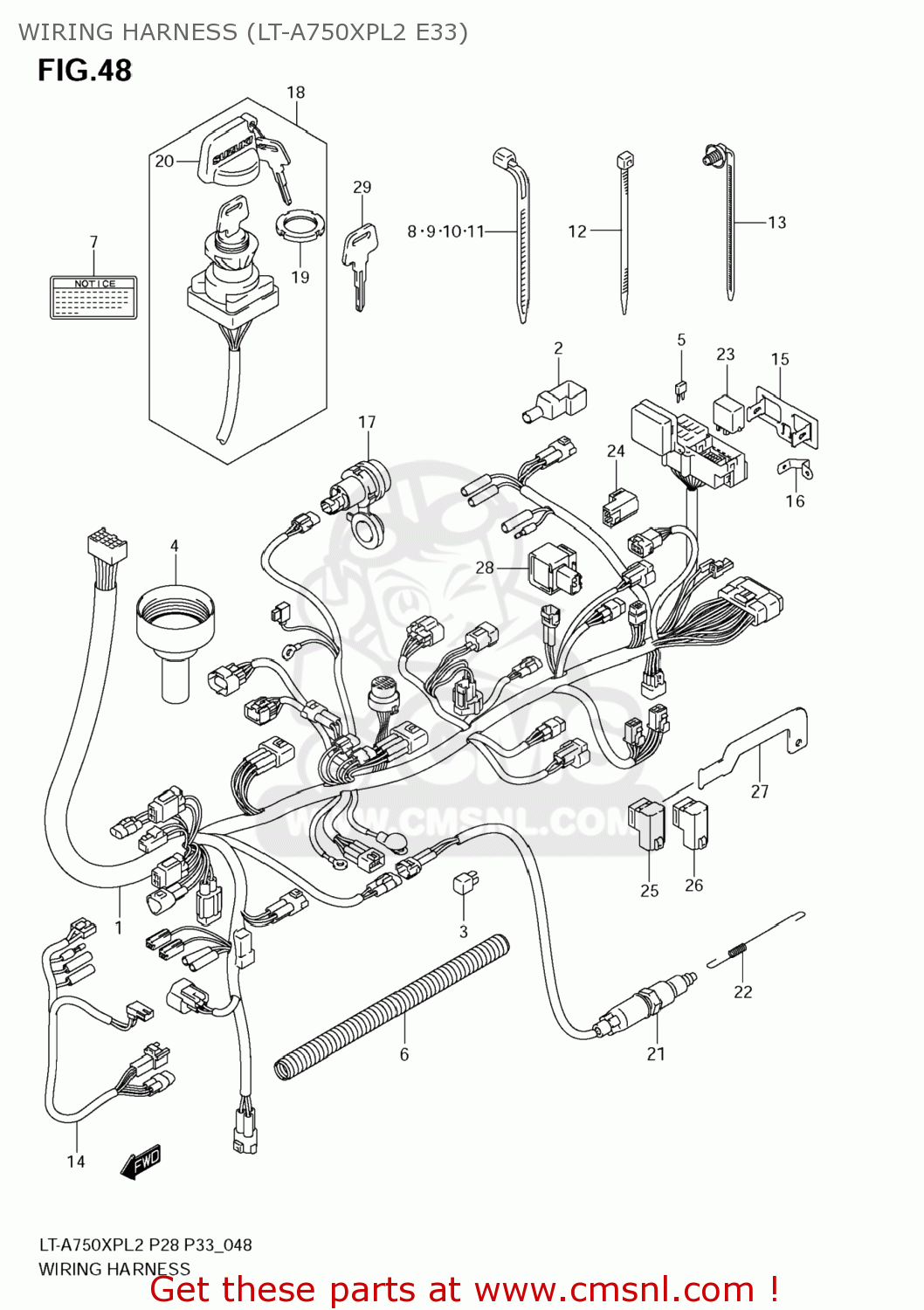

WIRING HARNESS (LT-A750XPL2 E33)

LT-A700XP KING QUAD 2012 (L2) USA (E03) KINGQUAD KING-QUAD

Wiring harness (lt-a750xpl2 e33) Schemat LT-A700XP KING QUAD 2012 (L2) USA (E03) KINGQUAD KING-QUAD

WIRING HARNESS (LT-A750XPL2 E33) LT-A700XP KING QUAD 2012 (L2) USA (E03) KINGQUAD KING-QUAD

ceny są w EUR

Ref

Część #

opis

Ilość

1

3661031GB2
Ref: 1

HARNESS,WIRING

€ 668.50

2

3661831G10
Ref: 2

COVER,CONNECTOR

€ 8.00

3

3280016A00
Ref: 3

RECTIFIER ASSY

€ 9.50

4

3661831G00
Ref: 4

COVER,SPEED

€ 7.00

5-1

0948110501
Ref: 5-1

FUSE(10A)

€ 2.00

5-2

0948115501
Ref: 5-2

FUSE(15A)

€ 1.00

6

3661931G00
Ref: 6

GUIDE,WIRING HARNESS

€ 9.50

7

3885209F50
Ref: 7

LABEL,POWER SOURCE TERMINAL

€ 4.00

8

0940711401
Ref: 8

CLAMP(L:95)

€ 2.50

9

0940714403
Ref: 9

CLAMP(L:125)

€ 2.50

10

0940719401
Ref: 10

CLAMP(L:190)

€ 2.00

11

0940725401
Ref: 11

CLAMP(L:235)

€ 4.00

12

0940714407
Ref: 12

CLAMP(L:145)

€ 3.00

13

0940717403
Ref: 13

CLAMP(L:154)

€ 4.50

14

3685731G00
Ref: 14

WIRE,FR BRAKE SW LEAD

€ 32.50

15

3674431G00
Ref: 15

BRACKET,FUSE BOX

€ 13.50

16

3674431G10
Ref: 16

BRACKET,FUSE

€ 7.00

17

3885003G10
Ref: 17

TERMINAL,POWER SOURCE

€ 107.50

18

3711031G00
Ref: 18

SWITCH ASSY,IGNITION

€ 95.00

19

3711224500
Ref: 19

NUT,IGNITION SWITCH

€ 5.00

20

3714219B00
Ref: 20

MASCOT,KEY

€ 3.50

21

3774038F01
Ref: 21

SWITCH ASSY,STOP LAMP

€ 53.50

22

0944306080
Ref: 22

SPRING

€ 3.50

23

3873009F00
Ref: 23

RELAY,NEUTRAL START

€ 25.00

24

3874031G01
Ref: 24

RELAY ASSY,FUEL PUMP

€ 25.50

25

3874031G01
Ref: 25

RELAY ASSY,FUEL PUMP

€ 25.50

26

3874031G01
Ref: 26

RELAY ASSY,FUEL PUMP

€ 25.50

27

3874131G20
Ref: 27

BRACKET,RELAY

€ 10.50

28

3875031G00
Ref: 28

RELAY ASSY,DRIVE

€ 84.50

29-1

3714619B00
Ref: 29-1

KEY,BLANK(TYPE:C)

€ 5.00

29-2

3714619B10
Ref: 29-2

KEY,BLANK(TYPE:D)

€ 5.00
