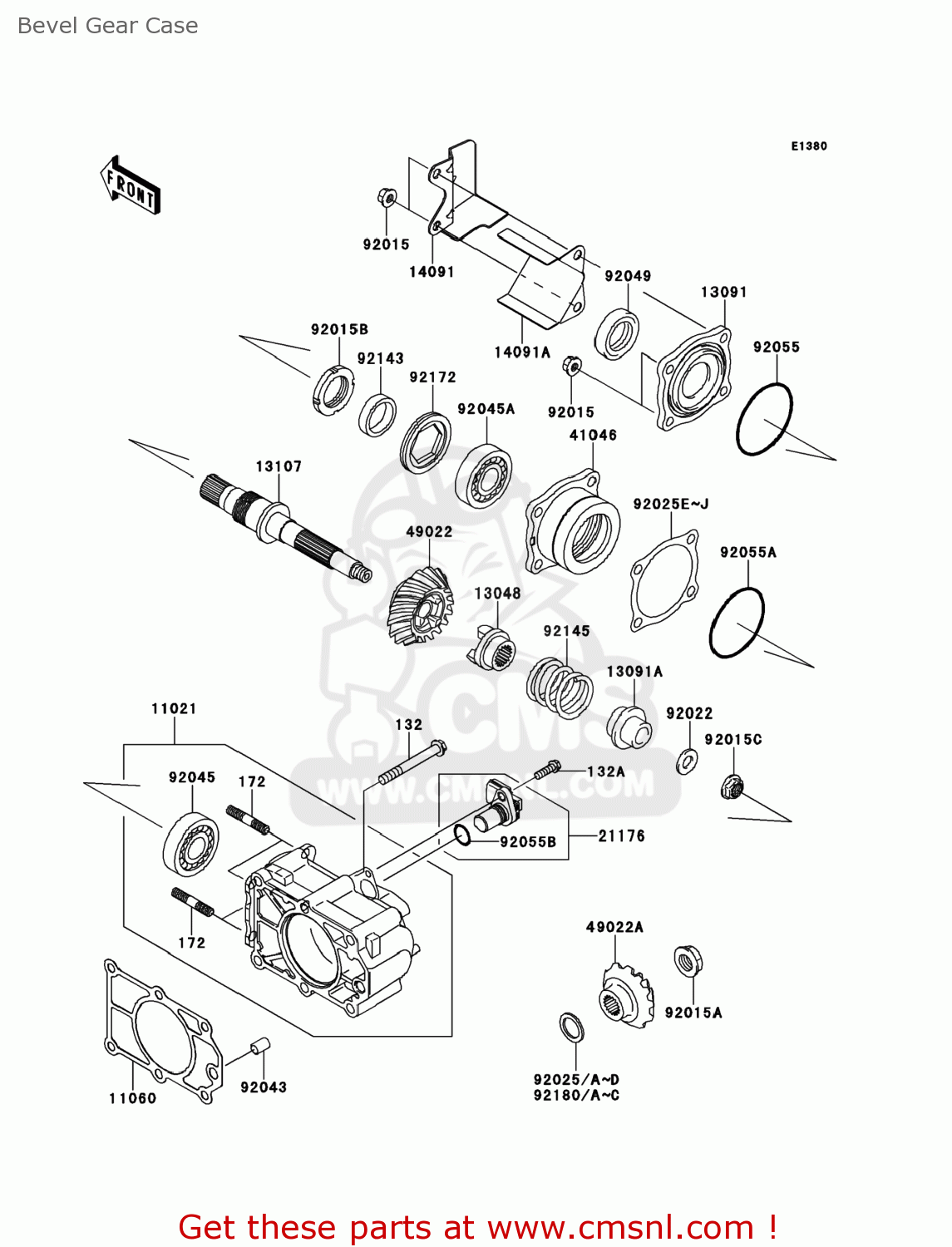

Bevel Gear Case

Ref

Część #

opis

Ilość

11021

110210016
Ref: 11021

CASE-ASSY

€ 837.00

11060

110601311
Ref: 11060

GASKET,GEAR CASE (NAS)

€ 6.00

13048

130481089
Ref: 13048

CAM-DAMPER

€ 36.00

13091

130911620
Ref: 13091

HOLDER,GEAR CASE

€ 29.50

13091A

130911810
Ref: 13091A

HOLDER,CAM DAMPER

€ 33.50

13107

131071523
Ref: 13107

SHAFT,BEVEL GEAR

€ 176.00

132

132BA0870
Ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132BD0620
Ref: 132A

BOLT-FLANGED-SMALL

€ 2.00

14091

140910939
Ref: 14091

COVER

€ 19.50

14091A

140911672
Ref: 14091A

COVER

€ 11.00

172

172BA0830
Ref: 172

STUD,8X30

€ 1.00

21176

211761104
Ref: 21176

SENSOR,SPEED

€ 85.00

41046

410461083
Ref: 41046

HOUSING-BEARING

€ 105.00

49022

490221204
Ref: 49022

GEAR-BEVEL,18T

€ 188.50

49022A

490221205
Ref: 49022A

GEAR-BEVEL,15T

€ 188.50

92015

920151402
Ref: 92015

NUT,8MM

€ 3.00

92015A

920151581
Ref: 92015A

NUT,16MM

€ 12.50

92015B

920151858
Ref: 92015B

NUT,30MM

€ 22.00

92015C

920151920
Ref: 92015C

NUT

€ 4.00

92022

920221890
Ref: 92022

WASHER,12X24X2.3

€ 3.00

92025

920251533
Ref: 92025

SHIM,20.3X28X1.3

€ 4.00

92025A

920251534
Ref: 92025A

SHIM,20.3X28X0.7

€ 3.00

92025B

920251573
Ref: 92025B

SHIM,20.3X28X0.15

€ 3.00

92025C

920251574
Ref: 92025C

SHIM,20.3X28X0.20

€ 3.00

92025D

920251575
Ref: 92025D

SHIM,20.3X28X1.1

€ 3.00

92025E

920251858
Ref: 92025E

SHIM,T=1.00

€ 4.00

92025F

920251859
Ref: 92025F

SHIM,T=0.10

€ 3.50

92025G

920251860
Ref: 92025G

SHIM,T=0.15

€ 3.50

92025H

920251861
Ref: 92025H

SHIM,T=0.50

€ 3.50

92025I

920251862
Ref: 92025I

SHIM,T=0.80

€ 3.50

92025J

920251863
Ref: 92025J

SHIM,T=1.20

€ 3.50

92043

920431037
Ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92045

920451200
Ref: 92045

BEARING-BALL,6205CM

€ 21.00

92045A

920451201
Ref: 92045A

BEARING-BALL,6006CM

€ 22.00

92049

920491288
Ref: 92049

SEAL-OIL

€ 7.00

92055

920551287
Ref: 92055

RING-O,66.5MM

€ 4.00

92055A

920551294
Ref: 92055A

RING-O,63MM

€ 6.00

92055B

920551718
Ref: 92055B

RING-O

€ 1.50

92143

921431600
Ref: 92143

COLLAR

€ 11.50

92145

921451542
Ref: 92145

SPRING

€ 12.00

92172

921720316
Ref: 92172

SCREW,SET,58X10

€ 17.00

92180

921800288
Ref: 92180

SHIM,20.3X28X0.8

€ 4.00

92180A

921800289
Ref: 92180A

SHIM,20.3X28X0.9

€ 6.00

92180B

921800290
Ref: 92180B

SHIM,20.3X28X1.0

€ 4.00

92180C

921800291
Ref: 92180C

SHIM,20.3X28X1.2

€ 4.00
