Fenders

KAF620-RBF MULE4010 2011 USA / TRANS4X4

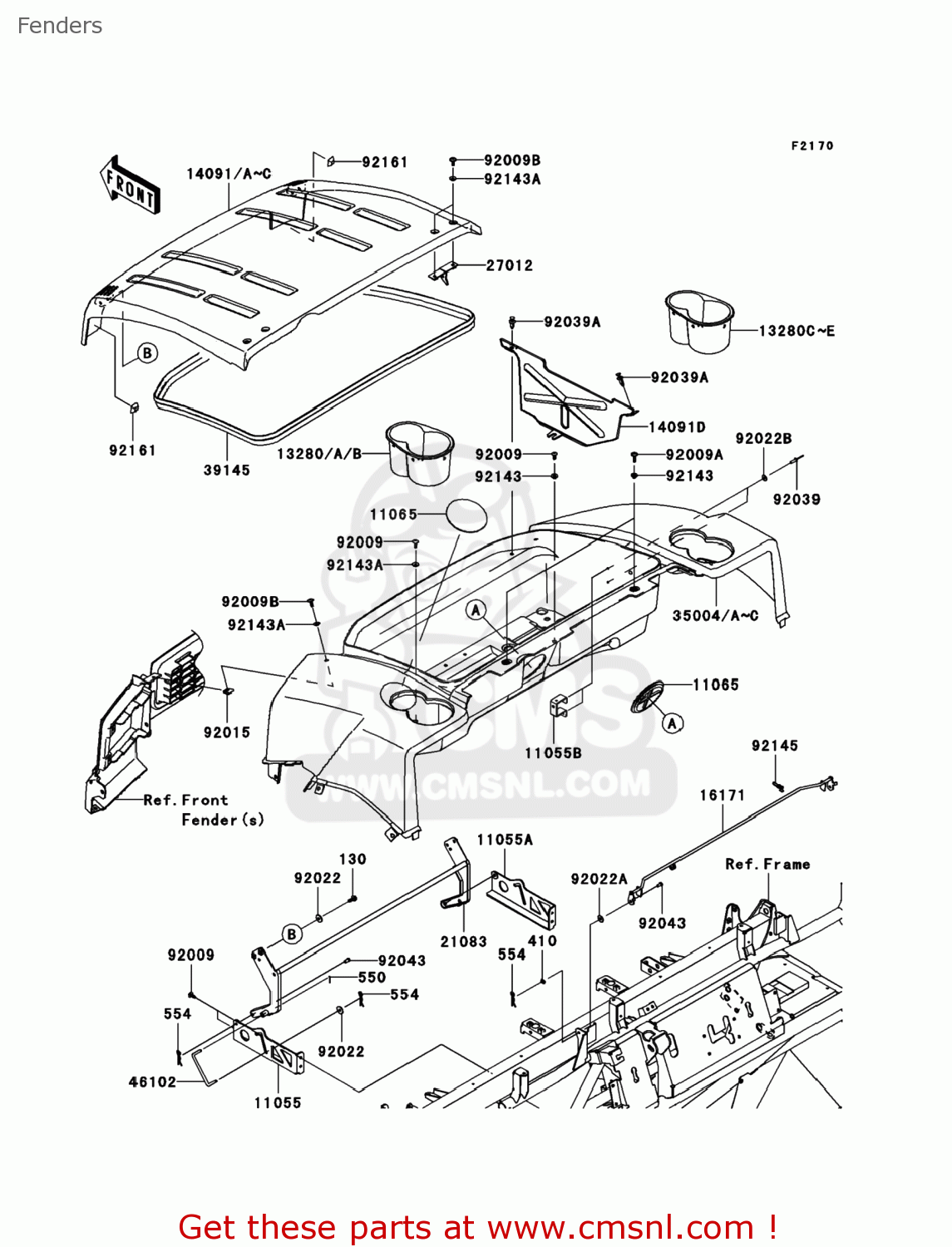

Fenders Schemat KAF620-RBF MULE4010 2011 USA / TRANS4X4

Fenders KAF620-RBF MULE4010 2011 USA / TRANS4X4
Fenders KAF620-RBF MULE4010 2011 USA / TRANS4X4
ceny są w EUR
Ref
Część #
opis
Ilość
11055
110550037
Ref: 11055
BRACKET,HINGE,LH
€ 24.00
11055A
110550038
Ref: 11055A
BRACKET,HINGE,RH
€ 24.00
11055B
110550124
Ref: 11055B
BRACKET,RESERVOIR TAN
€ 5.00
11065
1106510536Z
Ref: 11065
CAP,F.BLACK
€ 9.00
130
130BB0616
Ref: 130
BOLT-FLANGED,6X16
130BB0616
€ 1.50
13280
13280026516L
Ref: 13280
HOLDER,CUP HOLDER,LH,
€ 15.00
13280A
132800265286
Ref: 13280A
HOLDER,CUP HOLDER,LH,
€ 14.00
13280C
13280026616L
Ref: 13280C
HOLDER,CUP HOLDER,RH,
€ 15.00
13280D
132800266286
Ref: 13280D
HOLDER,CUP HOLDER,RH,
€ 14.00
14091
14091082916L
Ref: 14091
COVER,FRONT FENDER,D.
€ 199.00
14091A
140910829286
Ref: 14091A
COVER,FRONT FENDER,W.
€ 192.50
14091D
140911715
Ref: 14091D
COVER,RESERVOIR TANK
€ 33.00
16171
161710013
Ref: 16171
LINK
€ 35.00
21083
210830051
Ref: 21083
ARM,HOOD
€ 92.00
27012
270120119
Ref: 27012
HOOK,HOOD
270120119
€ 6.00
35004
35004009616L
Ref: 35004
FENDER-FRONT,CNT,D.R.
€ 393.50
35004A
350040096286
Ref: 35004A
FENDER-FRONT,CNT,W.GR
€ 378.00
39145
391450032
Ref: 39145
TRIM-SEAL,L=2350
391450032
€ 58.00
410
410AA0600
Ref: 410
WASHER-PLAIN-SMALL
410AA0600
€ 0.50
46102
461020103
Ref: 46102
ROD
€ 4.00
550
550AA1615
Ref: 550
PIN-COTTER,1.6X15
550AA1615
€ 1.50
554
554DA0600
Ref: 554
PIN-SNAP,1.2X21.2
554DA0600
€ 0.50
92009
920091166
Ref: 92009
SCREW
920091166
€ 3.50
92009A
920091256
Ref: 92009A
SCREW,6X22,BLACK
920091256
€ 1.50
92009B
920091621
Ref: 92009B
SCREW
920091621
€ 1.50
92015
920151678
Ref: 92015
NUT
920151678
€ 3.50
92022
920221346
Ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022A
920221545
Ref: 92022A
WASHER,7X18X1.2
920221545
€ 0.50
92022B
920221949
Ref: 92022B
WASHER,4.3X12.5X1
920221949
€ 2.00
92039
920391150
Ref: 92039
RIVET
€ 2.00
92039A
920391229
Ref: 92039A
RIVET
920391229
€ 1.50
92043
920431626
Ref: 92043
PIN,6X9
€ 1.50
92143
921431057
Ref: 92143
COLLAR
921431057
€ 3.00
92143A
921431087
Ref: 92143A
COLLAR
921431087
€ 2.50
92145
921450215
Ref: 92145
SPRING
€ 3.00
92161
921610790
Ref: 92161
DAMPER,FR HOOD
921610790
€ 2.00
