FRAME FITTINGS(COVER)

KAF620-A3 MULE 1997 USA, CANADA

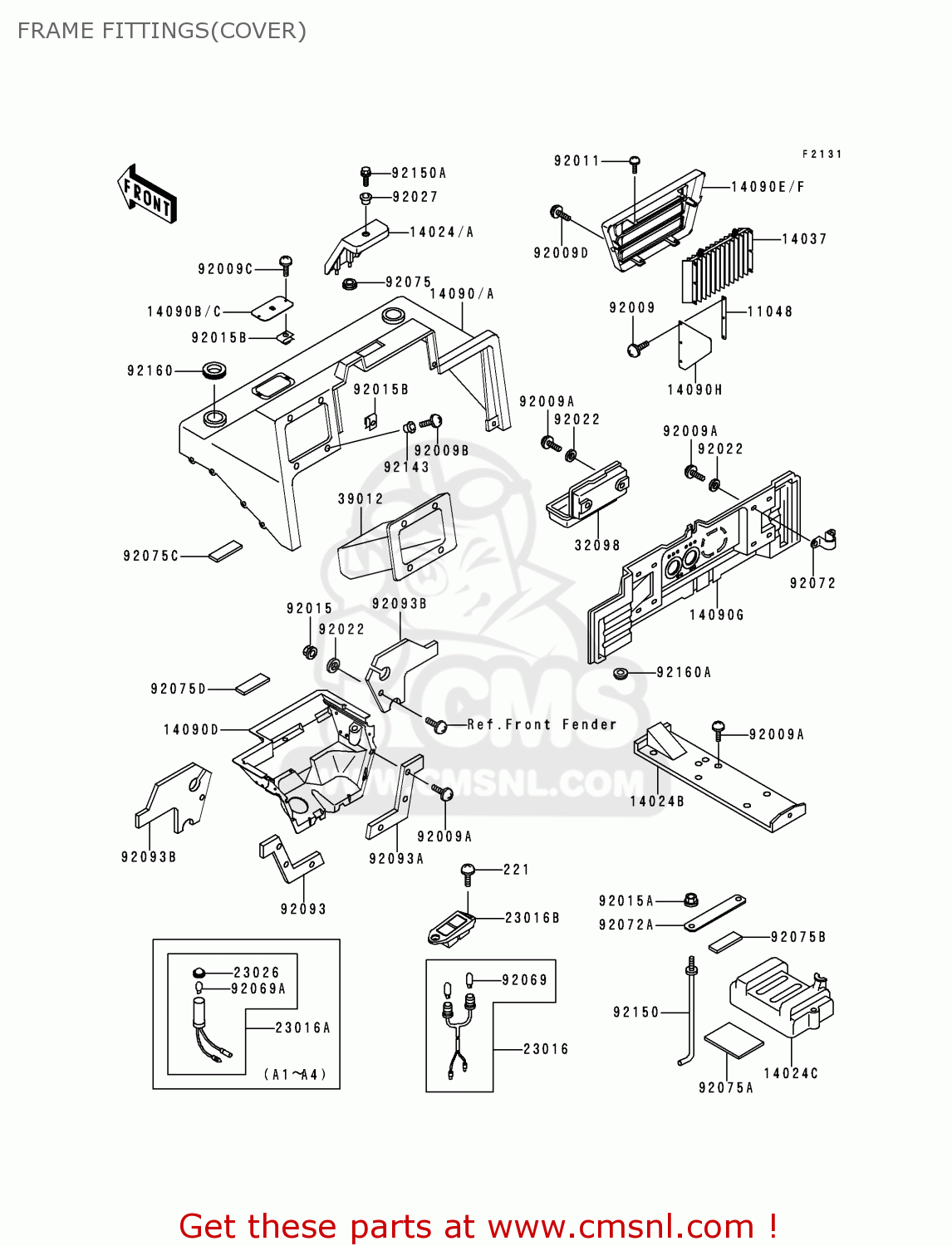

Frame fittings(cover) Schemat KAF620-A3 MULE 1997 USA, CANADA

FRAME FITTINGS(COVER) KAF620-A3 MULE 1997 USA, CANADA
FRAME FITTINGS(COVER) KAF620-A3 MULE 1997 USA, CANADA
ceny są w EUR
Ref
Część #
opis
Ilość
11048
110481085
Ref: 11048
BRACKET,SCREEN
€ 14.50
14024A
1402417886L
Ref: 14024A
COVER,MAINTENANCE,F.R
€ 68.50
14024B
140241791
Ref: 14024B
COVER,FLOOR,CNT
€ 126.00
14024C
140241792
Ref: 14024C
COVER,BATTERY
€ 48.00
14037
140371177
Ref: 14037
SCREEN
€ 41.00
14090A
1409012406L
Ref: 14090A
COVER,UPP,F.RED
€ 565.00
14090B
140901241B1
Ref: 14090B
COVER,RADIATOR CAP,F.
€ 15.50
14090D
140901242
Ref: 14090D
COVER,LWR
€ 155.50
14090F
1409012436L
Ref: 14090F
COVER,FRONT GRILL,F.R
€ 126.50
14090G
140901271
Ref: 14090G
COVER,SEAT UNDER
€ 205.50
14090H
140901326
Ref: 14090H
COVER,SCREEN
€ 9.50
23016A
230161128
Ref: 23016A
LAMP-ASSY,TEMP
€ 38.00
23026
230261157
Ref: 23026
LENS,TEMP LAMP
€ 3.00
32098
320981052
Ref: 32098
CASE-TOOL
320981052
€ 19.50
39012
390121053
Ref: 39012
CASE-STORAGE
€ 78.50
92009
920091111
Ref: 92009
SCREW,6X18
920091111
€ 3.00
92009A
920091166
Ref: 92009A
SCREW
920091166
€ 3.50
92009B
920091181
Ref: 92009B
SCREW,6X18
920091181
€ 1.50
92009C
920091288
Ref: 92009C
SCREW,6X14
920091288
€ 1.50
92009D
920091353
Ref: 92009D
SCREW,6X55
920091353
€ 3.00
92011
92011562
Ref: 92011
SCREW 0.16X0.5
92011562
€ 1.50
92015
920151386
Ref: 92015
NUT,6MM
920151386
€ 3.00
92015A
920151406
Ref: 92015A
NUT,8MM
920151406
€ 3.00
92015B
920151678
Ref: 92015B
NUT
920151678
€ 3.50
92022
920221346
Ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92027
920271920
Ref: 92027
COLLAR
920271920
€ 4.00
92069A
920691059
Ref: 92069A
BULB,12V 1.7W
920691059
€ 2.50
92072
920721252
Ref: 92072
BAND
920721252
€ 7.00
92072A
920721255
Ref: 92072A
BAND,BATTERY
920721255
€ 4.50
92075
920751067
Ref: 92075
DAMPER,SIDE COVER
920751067
€ 2.50
92075A
920751076
Ref: 92075A
DAMPER,BATTERY BASE
920751076
€ 5.50
92075B
920751214
Ref: 92075B
DAMPER ENGINE GUARD
€ 3.00
92075C
920751658
Ref: 92075C
DAMPER
920751658
€ 3.00
92075D
920751903
Ref: 92075D
DAMPER,BATTERY BAND
920751903
€ 2.50
92093
920931293
Ref: 92093
SEAL,FRONT FENDER,LH
€ 6.00
92093A
920931294
Ref: 92093A
SEAL,FRONT FENDER,RH
€ 6.50
92093B
920931295
Ref: 92093B
SEAL,LOWER COVER
€ 16.50
92143
921431087
Ref: 92143
COLLAR
921431087
€ 2.50
92150
921501293
Ref: 92150
BOLT,BATTERY
921501293
€ 6.50
92150A
921501360
Ref: 92150A
BOLT,6X25
921501360
€ 2.50
92160
921601142
Ref: 92160
DAMPER
€ 6.50
92160A
921601148
Ref: 92160A
DAMPER
€ 2.50
