OIL PUMP

VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

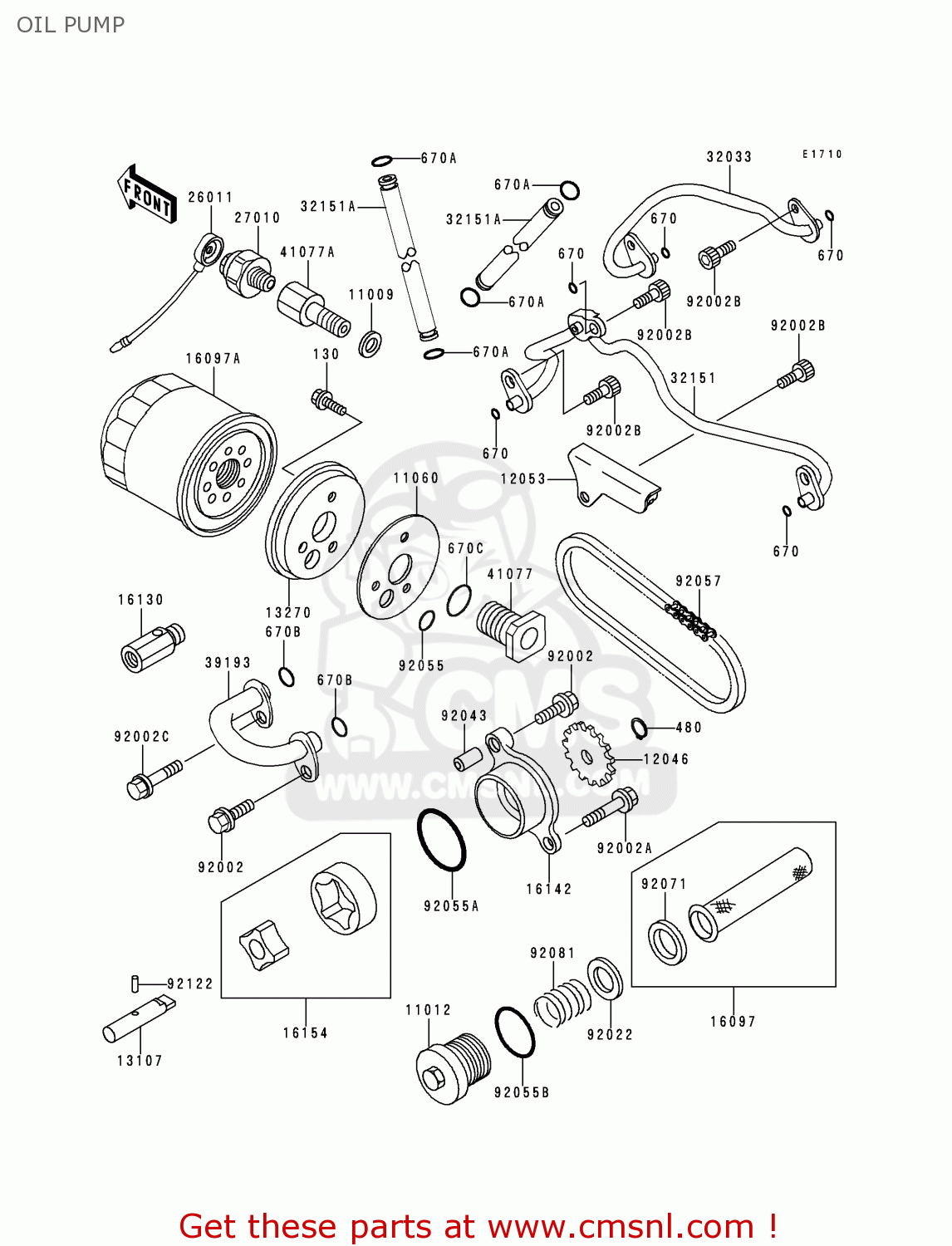

Oil pump Schemat VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

OIL PUMP VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST
OIL PUMP VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST
ceny są w EUR
Ref
Część #
opis
Ilość
130
130P0514
Ref: 130
BOLT-FLANGED
130P0514
€ 2.00
480
480J1100
Ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
670
670D1506
Ref: 670
O RING,6MM
670D1506
€ 1.00
670A
670D1507
Ref: 670A
O RING,7MM
670D1507
€ 1.00
670B
670D2012
Ref: 670B
O RING,12MM
670D2012
€ 1.00
670C
670D2020
Ref: 670C
O RING,20MM
670D2020
€ 3.50
11009
110091105
Ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11012
110121461
Ref: 11012
CAP,OIL FILTER
110121461
€ 30.00
11060
110601092
Ref: 11060
GASKET,OIL FILTER (NAS)
110601092
€ 5.00
12046
120461079
Ref: 12046
SPROCKET,OIL PUMP,19T
120461079
€ 15.00
12053
120531356
Ref: 12053
GUIDE-CHAIN
120531356
€ 22.00
13107
131071131
Ref: 13107
SHAFT,OIL PUMP
131071131
€ 17.50
13270
132701170
Ref: 13270
PLATE,OIL FILTER
132701170
€ 18.00
16097
160971058
Ref: 16097
FILTER-ASSY-OIL
160971058
€ 9.00
16097A
160971063
Ref: 16097A
FILTER-ASSY-OIL
160971063
€ 10.00
16130
161301001
Ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 44.50
16142
161421061
Ref: 16142
COVER-PUMP,OIL
161421061
€ 40.50
16154
161541056
Ref: 16154
ROTOR-PUMP
161541056
€ 46.00
26011
260111626
Ref: 26011
WIRE-LEAD
€ 11.00
27010
270101313
Ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 26.00
32033
320331742
Ref: 32033
PIPE,OIL,FILTER-CRANK
€ 27.00
32151
321511894
Ref: 32151
PIPE
€ 55.00
32151A
321511895
Ref: 32151A
PIPE
€ 9.00
39193
391931021
Ref: 39193
PIPE-OIL,PUMP-FILTER
€ 29.50
41077
410771052
Ref: 41077
ADAPTER,OIL FILTER
410771052
€ 22.00
41077A
410771084
Ref: 41077A
ADAPTER,PRESSURE SWIT
410771084
€ 8.50
92002
920021439
Ref: 92002
BOLT,6X16
920021439
€ 3.00
92002A
920021534
Ref: 92002A
BOLT,6X30
920021534
€ 4.00
92002B
920021592
Ref: 92002B
BOLT,6X12
920021592
€ 2.50
92002C
920021612
Ref: 92002C
BOLT
920021612
€ 3.00
92022
92022169
Ref: 92022
WASHER-PLAIN
92022169
€ 3.00
92043
920431263
Ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551021
Ref: 92055
RING-O,13X1.9
920551021
€ 4.50
92055A
920551279
Ref: 92055A
RING-O,45MM
920551279
€ 4.00
92055B
920551358
Ref: 92055B
RING-O
920551358
€ 4.00
92057
920571183
Ref: 92057
CHAIN,PUMP,BS25HX50L
920571183
€ 11.00
92071
92071100
Ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.00
92081
920811862
Ref: 92081
SPRING,OIL FILTER
920811862
€ 8.00
92122
921221126
Ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
