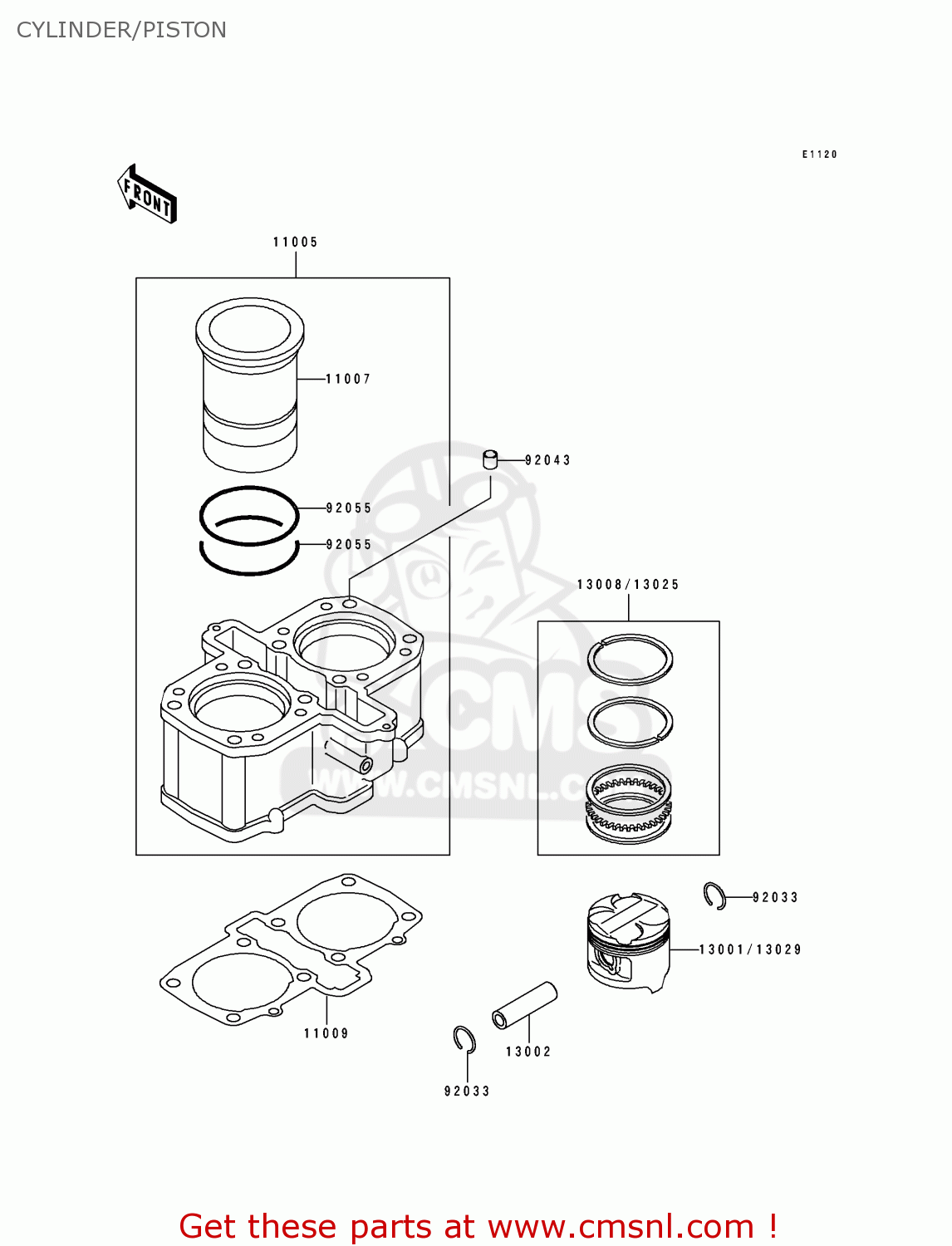

CYLINDER/PISTON

EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

Cylinder/piston Schemat EX500B5 GPZ500S 1992 EUROPE FR FG GR IT NR SP

ceny są w EUR

Ref

Część #

opis

Ilość

11005

110051517
Ref: 11005

CYLINDER-ENGINE

€ 1,094.50

11007

110071096
Ref: 11007

LINER-CYLINDER

€ 89.00

11009

110091640
Ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 30.50

13001

130011251
Ref: 13001

PISTON-ENGINE,STD

€ 68.00

13002

130021058
Ref: 13002

PIN-PISTON

€ 16.00

13008

130081084
Ref: 13008

RING-SET-PISTON,STD

€ 58.50

13025

130251084
Ref: 13025

RING-SET-PISTON L,O/S

€ 69.50

13029

130291160
Ref: 13029

PISTON-ENGINE L,O/S 0

€ 73.50

92033

920331099
Ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431279
Ref: 92043

PIN,11.5X14X14

€ 3.00

92055

920551247
Ref: 92055

RING-O,80.6X2.4

€ 7.50
