Swingarm

KVF650-D9F BRUTE FORCE 650 4X4 2009 USA

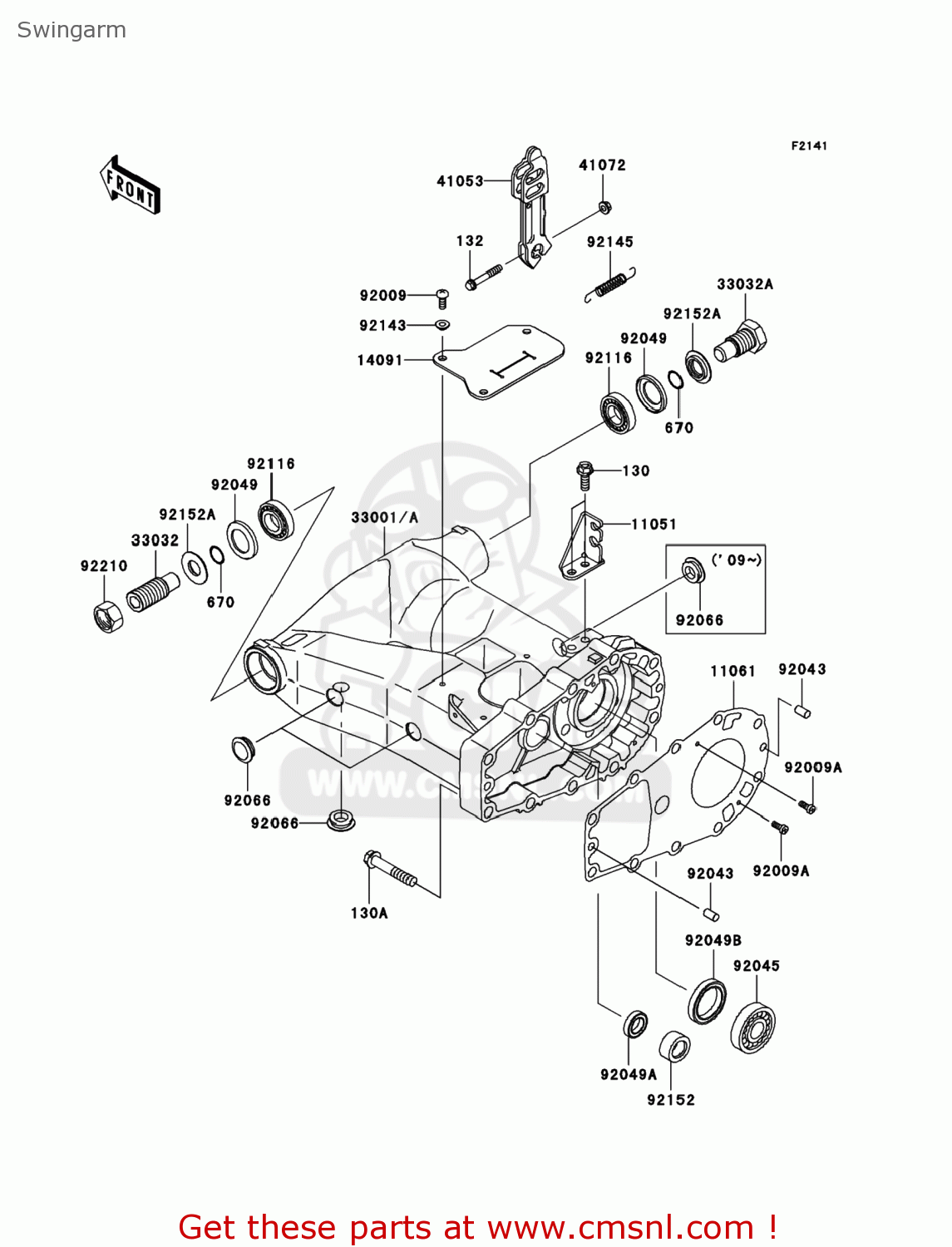

Swingarm Schemat KVF650-D9F BRUTE FORCE 650 4X4 2009 USA

Swingarm KVF650-D9F BRUTE FORCE 650 4X4 2009 USA
Swingarm KVF650-D9F BRUTE FORCE 650 4X4 2009 USA
ceny są w EUR
Ref
Część #
opis
Ilość
11051
110511762
Ref: 11051
BRACKET,CABLE
€ 10.00
11061
110611065
Ref: 11061
GASKET,SWING ARM (NAS)
110611065
€ 32.50
130
130BB0822
Ref: 130
BOLT-FLANGED
€ 1.00
130A
130CA1055
Ref: 130A
BOLT-FLANGED
€ 2.00
132
132BA0640
Ref: 132
BOLT-FLANGED-SMALL
132BA0640
€ 2.50
14091
140917508
Ref: 14091
COVER
140917508
€ 6.00
33001A
330010152
Ref: 33001A
ARM-COMP-SWING
330010152
€ 733.50
33032
330321197
Ref: 33032
SHAFT-SWING ARM,LEFT
330321197
€ 26.50
33032A
330321200
Ref: 33032A
SHAFT-SWING ARM,RIGHT
330321200
€ 26.50
41053
410531094
Ref: 41053
LEVER-BRAKE CAM
€ 42.50
41072
41072007
Ref: 41072
NUT,6MM
41072007
€ 2.50
670
670B2016
Ref: 670
O RING,16MM
670B2016
€ 1.00
92009
920091166
Ref: 92009
SCREW
920091166
€ 3.50
92009A
920091936
Ref: 92009A
SCREW,4X10
920091936
€ 1.00
92043
920431567
Ref: 92043
PIN,8X14
920431567
€ 1.50
92045
920450093
Ref: 92045
BEARING-BALL,TMBO/28C
€ 29.00
92049
920491030
Ref: 92049
OIL SEAL,26406
920491030
€ 6.00
92049A
920491537
Ref: 92049A
SEAL-OIL,TC17X28X6
920491537
€ 7.50
92049B
920491538
Ref: 92049B
SEAL-OIL,HTC35X48X7
920491538
€ 9.50
92066
920661534
Ref: 92066
PLUG
920661534
€ 2.00
92116
921161001
Ref: 92116
BEARING,R,4T30203E1
921161001
€ 36.00
92143
921431331
Ref: 92143
COLLAR
921431331
€ 2.00
92145
921451313
Ref: 92145
SPRING,BRAKE LEVER RE
921451313
€ 3.00
92152
921521240
Ref: 92152
COLLAR
921521240
€ 9.50
92152A
921521356
Ref: 92152A
COLLAR
921521356
€ 6.50
92210
922100190
Ref: 92210
NUT,22MM
€ 4.50
