FRAME FITTINGS

KVF300-B1 1999 AUSTRALIA

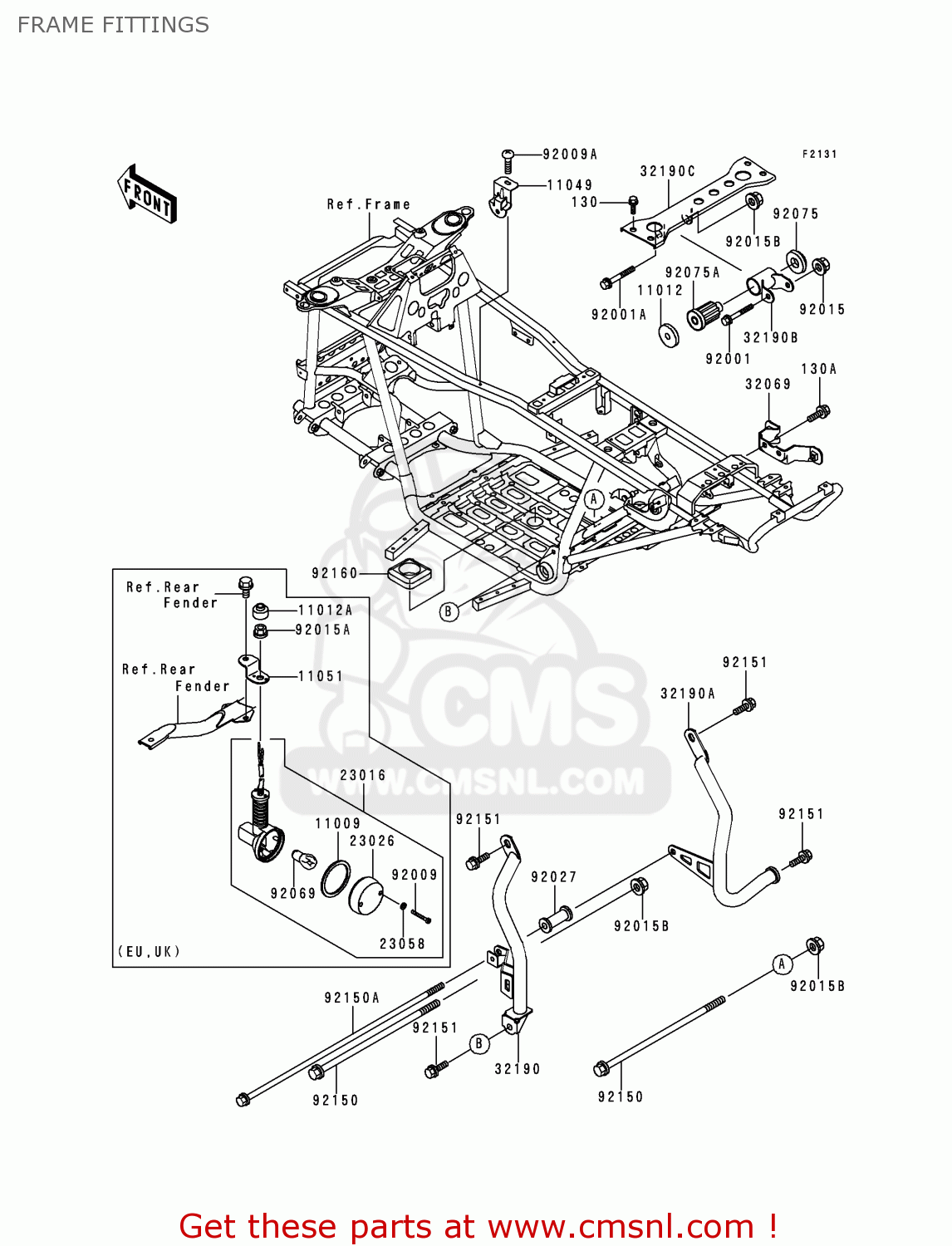

Frame fittings Schemat KVF300-B1 1999 AUSTRALIA

FRAME FITTINGS KVF300-B1 1999 AUSTRALIA
FRAME FITTINGS KVF300-B1 1999 AUSTRALIA
ceny są w EUR
Ref
Część #
opis
Ilość
130
130J0812
Ref: 130
BOLT-FLANGED
130J0812
€ 0.50
130A
130J0814
Ref: 130A
BOLT-FLANGED,8X14
€ 2.00
11012
110121228
Ref: 11012
CAP,ENGINE BRACKET
110121228
€ 4.00
11049
110491738
Ref: 11049
BRACKET
€ 5.50
32069
320691547
Ref: 32069
BRACKET-MUFFLER
320691547
€ 10.50
32190
321901130
Ref: 32190
BRACKET-ENGINE,LH
€ 33.50
32190A
321901132
Ref: 32190A
BRACKET-ENGINE,RH
€ 33.50
32190B
321901141
Ref: 32190B
BRACKET-ENGINE
€ 20.50
32190C
321901181
Ref: 32190C
BRACKET-ENGINE
€ 79.00
92001
920011615
Ref: 92001
BOLT,FLANGED,8X60
920011615
€ 4.00
92001A
920011709
Ref: 92001A
BOLT,FLANGED,10X80
920011709
€ 6.50
92009A
920091166
Ref: 92009A
SCREW
920091166
€ 3.50
92015
920151397
Ref: 92015
NUT,FLANGED,8MM
920151397
€ 2.50
92015B
920151727
Ref: 92015B
NUT
920151727
€ 2.50
92027
92027275
Ref: 92027
COLLAR,L=54
92027275
€ 11.00
92075
920751274
Ref: 92075
DAMPER,ENG MOUNT,SIDE
920751274
€ 10.50
92075A
920751377
Ref: 92075A
DAMPER,ENGINE BRACKET
920751377
€ 18.00
92150
921501686
Ref: 92150
BOLT,FLANGED,10X150
921501686
€ 10.50
92150A
921501899
Ref: 92150A
BOLT,FLANGED,10X205
921501899
€ 10.50
92151
921511137
Ref: 92151
BOLT,FLANGED,10X16
€ 2.00
92160
921601772
Ref: 92160
DAMPER
921601772
€ 8.00
