Twój online partscatalog

E-6

XZ50 APE DELUXE 2003 (3) JAPAN AC16-120

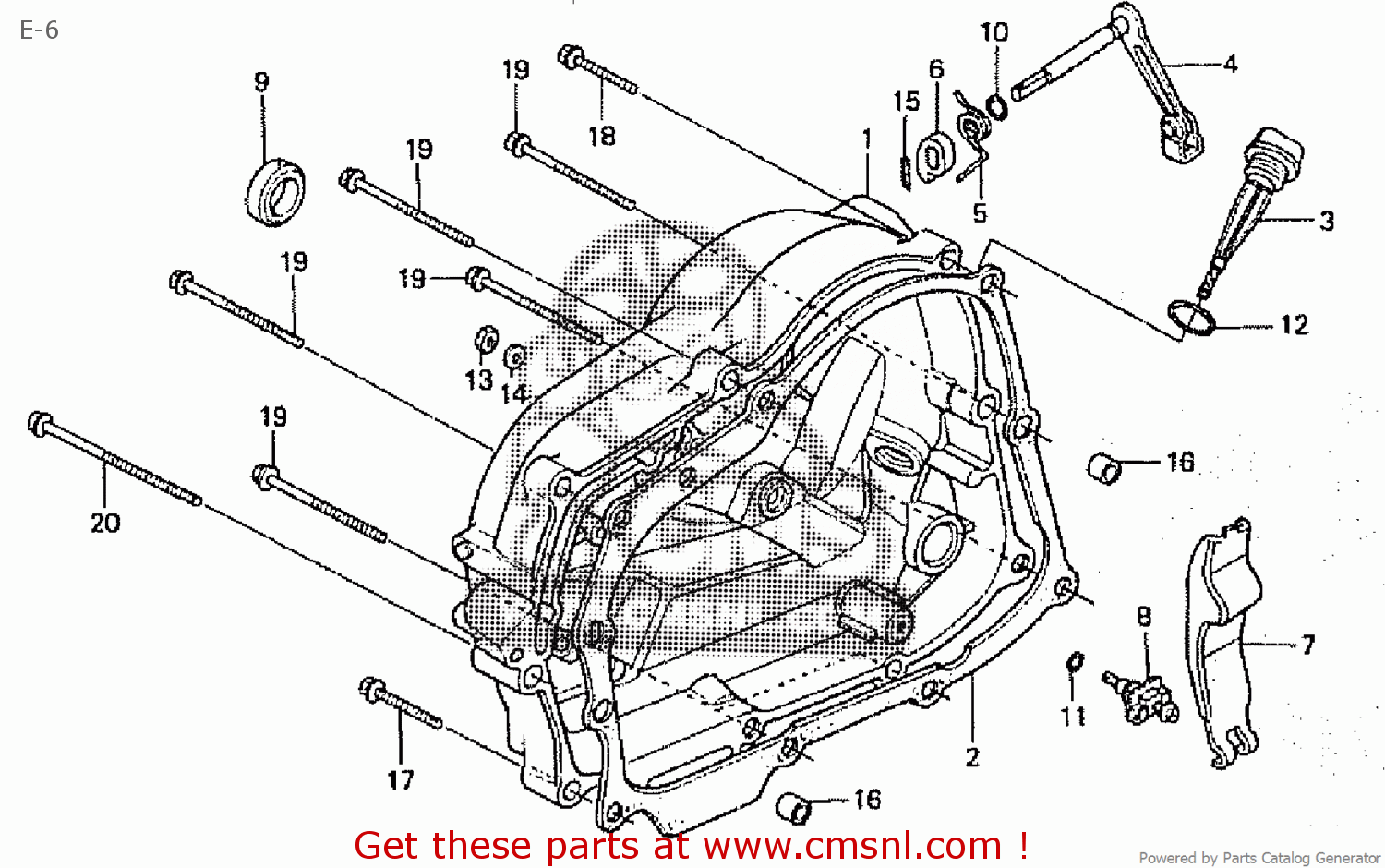

E-6 Schemat XZ50 APE DELUXE 2003 (3) JAPAN AC16-120

E-6 XZ50 APE DELUXE 2003 (3) JAPAN AC16-120
E-6 XZ50 APE DELUXE 2003 (3) JAPAN AC16-120
ceny są w EUR
Ref
Część #
opis
Ilość
1
11330GEY910
Ref: 1
11330GEY306
€ 196.56
2
11393KN4750
Ref: 2
GASKET,R.CRANKCAS (NAS)
11393KN4750
€ 18.50
3
15650KA9680
Ref: 3
GAUGE,OIL LEVEL
15650KA9680
€ 7.00
4
22810GN1760
Ref: 4
LEVER COMP,CLUTCH
22810GN1760
€ 20.00
5
22815149000
Ref: 5
SPG.,CLUTCH LEVER
22815149000
€ 2.50
6
22821116000
Ref: 6
CAM,CLUTCH LIFTER
22821116000
€ 8.50
7
22830436000
Ref: 7
LEVER,CLUTCH
22830436000
€ 10.00
8
22831436000
Ref: 8
SCREW,CLUTCH ADJ
22831436000
€ 11.50
9
91204286003
Ref: 9
OIL SEAL,18X29X7
91204286003
€ 4.50
10
91301027000
Ref: 10
ORING,6.8X1.9
91301027000
€ 3.50
11
91301704000
Ref: 11
O RING, 6M/M
91301704000
€ 2.00
12
91307035000
Ref: 12
ORING 183
91307035000
€ 2.00
13
94001060000S
Ref: 13
NUT,HEX 6MM
94001060000S
€ 1.00
14
9410106000
Ref: 14
WASHER,PLAIN, 6MM
9410106000
€ 0.50
15
9420120150
Ref: 15
PIN,COTTER 2.0X15
9420120150
€ 1.00
17
960010603500
Ref: 17
BOLT,FLANGE,6X35
960010603500
€ 1.50
18
960010604000
Ref: 18
BOLT,FLANGE,SH,6X40
960010604000
€ 1.50
19
960010608000
Ref: 19
BOLT,FLANGE,6X80
960010608000
€ 2.00
20
960010610000
Ref: 20
BOLT,FLANGE,6X100
960010610000
€ 2.50
