SWINGARM

VTX1300S 2004 (4) AUSTRALIA

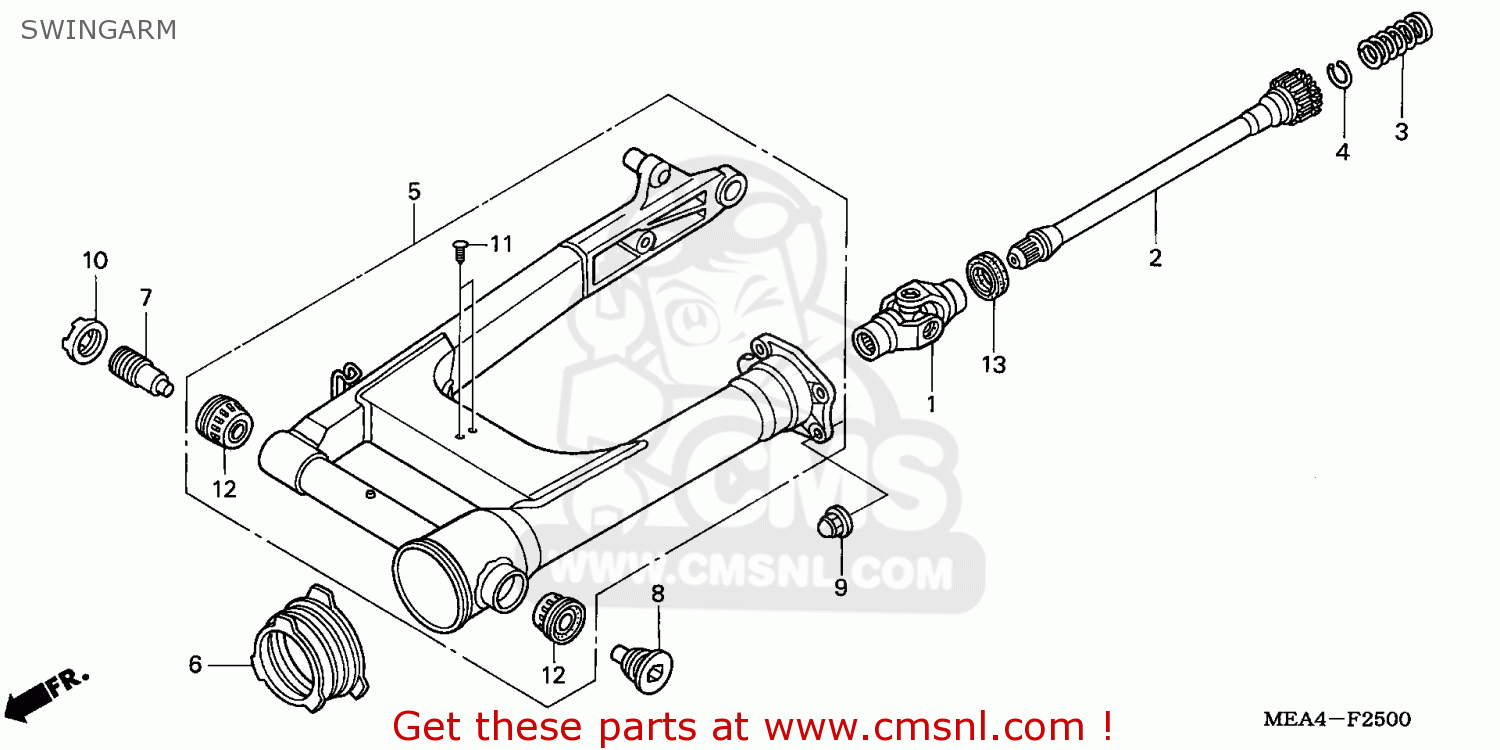

Swingarm Schemat VTX1300S 2004 (4) AUSTRALIA

ceny są w EUR

Ref

Część #

opis

Ilość

40200MCH000
Ref: 1

JOINT COMP,YOKE

€ 336.00

40201MCH000
Ref: 2

SHAFT,PROP

€ 153.00

40215ME9003
Ref: 3

SPRING,SHAFT

€ 5.00

40221MB0000
Ref: 4

RING,STOPPER

€ 4.00

52100MEA670
Ref: 5

SWINGARM ASSY,RR

€ 805.50

52104MCH000
Ref: 6

BOOT,JOINT

€ 9.00

90121MAHA00
Ref: 7

BOLT R,SWINGARM P

€ 17.50

90121MAMA60
Ref: 8

BOLT R,SWINGARM P

€ 38.50

90308MS9000
Ref: 9

NUT HEX,CAP 10MM

€ 2.50

90355469000
Ref: 10

NUT,RR.FORK PIVOT

€ 15.00

90651MT3000
Ref: 11

CLIP

€ 1.50

91066HA7672
Ref: 12

BRG,TAP.17X40X13.

€ 44.00

91261ME9005
Ref: 13

OIL SEAL,27X43X7

€ 11.00
