FUEL TANK/FUEL PUMP

VT750C2 SHADOW 2001 (1) ENGLAND

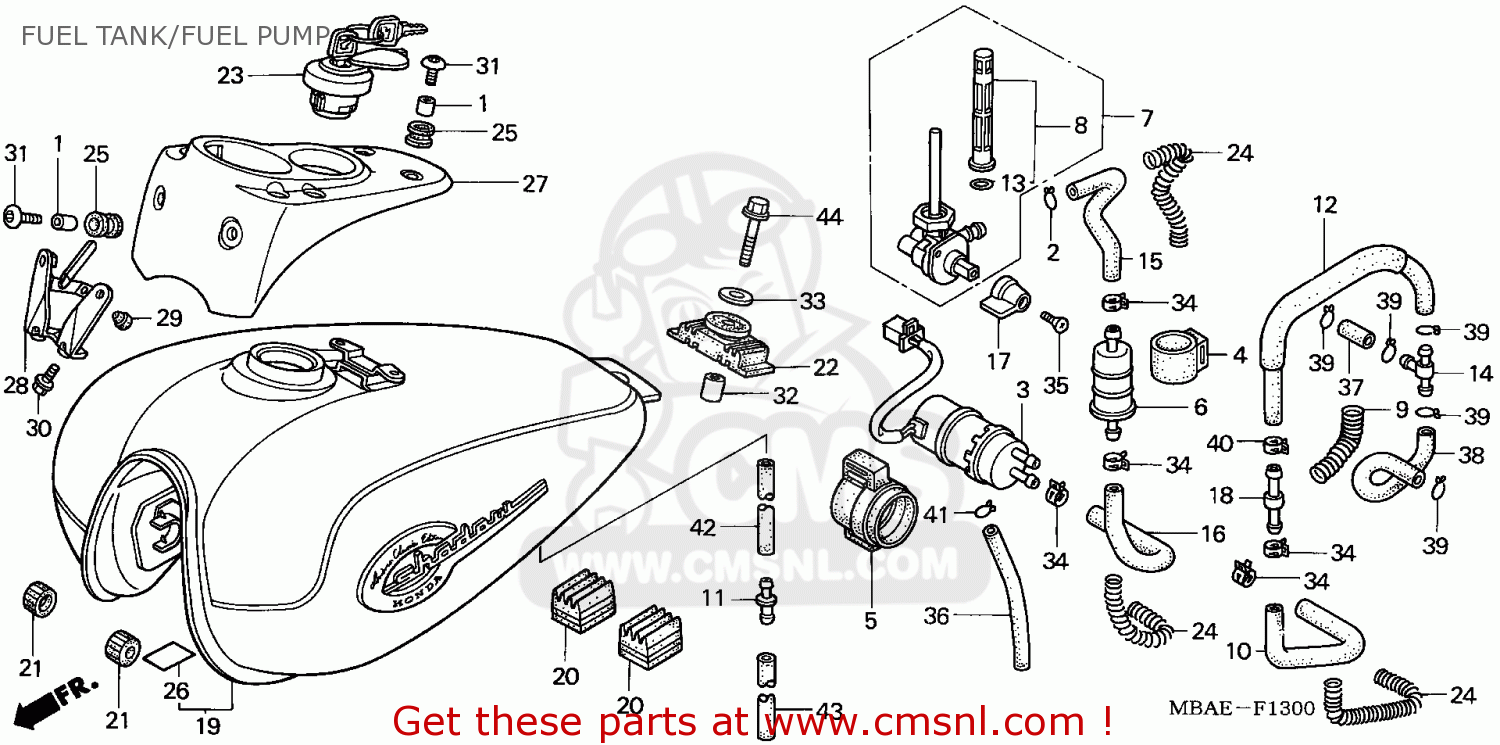

Fuel tank/fuel pump Schemat VT750C2 SHADOW 2001 (1) ENGLAND

FUEL TANK/FUEL PUMP VT750C2 SHADOW 2001 (1) ENGLAND
FUEL TANK/FUEL PUMP VT750C2 SHADOW 2001 (1) ENGLAND
ceny są w EUR
Ref
Część #
opis
Ilość
1
11346371300
Ref: 1
COLLAR,ADJUST
11346371300
€ 7.50
2
15771KV6000
Ref: 2
CLIP,OIL DRAIN TU
15771KV6000
€ 2.50
3
16710MBA611
Ref: 3
FUEL PUMP ASSY
€ 265.50
4
16711MF2000
Ref: 4
HOLDER,STRAINER
16711MF2000
€ 14.50
5
16711MZ7000
Ref: 5
RUBBER FUEL PUMP
16711MZ7000
€ 18.50
6
16900MG8003
Ref: 6
STRN.COMP.,FUEL
16900MG8003
€ 23.00
7
16950MBA023
Ref: 7
COCK ASSY,FUEL
16950MBA023
€ 101.50
8
16952MBA003
Ref: 8
SCREEN SET,FUEL S
16952MBA003
€ 21.50
9
16952MF5000
Ref: 9
WIREB,GUARD
16952MF5000
€ 8.50
10
16953MBA000
Ref: 10
TUBE.C,FUEL
16953MBA000
€ 8.00
11
16953891810
Ref: 11
JOINT,FUEL TUBE
€ 6.50
12
16955MBA000
Ref: 12
TUBE D,FUEL
16955MBA000
€ 8.00
13
16958KM9005
Ref: 13
O-RING
16958KM9005
€ 4.00
14
16958MB0000
Ref: 14
JOINT,FUEL TUBE
16958MB0000
€ 13.50
15
16961MBA000
Ref: 15
TUBE.A,FUEL
16961MBA000
€ 5.00
16
16962MBA000
Ref: 16
TUBE.B,FUEL
16962MBA000
€ 7.00
17
16963MY5610
Ref: 17
LEVER,FUEL COCK
16963MY5610
€ 11.50
18
16966MR1000
Ref: 18
JOINT,FUEL TUBE
16966MR1000
€ 8.00
19
17520MBAD20ZA
Ref: 19
SET ILLUS*TYPE12*
€ 789.50
19
17520MBAE20ZA
Ref: 19
SET ILLUS*TYPE11*
€ 723.00
20
17611MBA000
Ref: 20
CUSH.FUEL TANK
17611MBA000
€ 5.50
21
17611286000
Ref: 21
CUSHION,FUEL TANK
17611286000
€ 7.50
22
17613KY1000
Ref: 22
CUSHION,FUEL TANK
17613KY1000
€ 8.00
23
17620KR3751
Ref: 23
CAP COMP,FUEL FIL
17620KR3751
€ 80.50
24
17672MY1000
Ref: 24
WIRE,GUARD
17672MY1000
€ 10.50
25
18293GN2000
Ref: 25
RUBBER,PKG.PROTR. (NAS)
18293GN2000
€ 3.00
26
64301MN5300
Ref: 26
TAPE A
64301MN5300
€ 2.00
27
83510MBA000
Ref: 27
COVER,METER
83510MBA000
€ 112.50
28
83511MBA000
Ref: 28
STAY,FR.METER
83511MBA000
€ 16.50
29
84702MF2670
Ref: 29
RUB.,NO.BRKT.CUSH
84702MF2670
€ 3.50
30
90003KL4000
Ref: 30
BOLT,FLANGE
90003KL4000
€ 2.50
31
90118MR1000
Ref: 31
SCREW,PAN,6X14
90118MR1000
€ 3.00
32
52486074000
Ref: 32
COLLAR RR CUSHION
52486074000
€ 3.50
33
90534MV4000
Ref: 33
WASHER,8.5X28
90534MV4000
€ 2.00
34
90682SA0671
Ref: 34
CLAMP. CNSTR HOSE
90682SA0671
€ 4.00
35
93700050120G
Ref: 35
SCREW,PAN 5X12
93700050120G
€ 0.50
36
950014510040
Ref: 36
TUBE,FUEL,4.5X100
€ 2.00
37
950017503540
Ref: 37
TUBE,FUEL,7.3X35
€ 3.50
38
950017520040
Ref: 38
TUBE,FUEL,7.5X200
€ 4.50
39
9500202120
Ref: 39
CLIP B12,TUBE
9500202120
€ 1.00
40
950024120008
Ref: 40
CLAMP D 12.0 TUBE
950024120008
€ 2.00
41
9500250000
Ref: 41
CLIP,TUBE 5.0MM
9500250000
€ 1.00
42
950054552020
Ref: 42
TUBE 45X520
€ 12.00
43
950057550020
Ref: 43
TUBE,7.3X500
€ 13.00
44
957010803500
Ref: 44
BOLT,FLANGE,8X35
957010803500
€ 1.50
