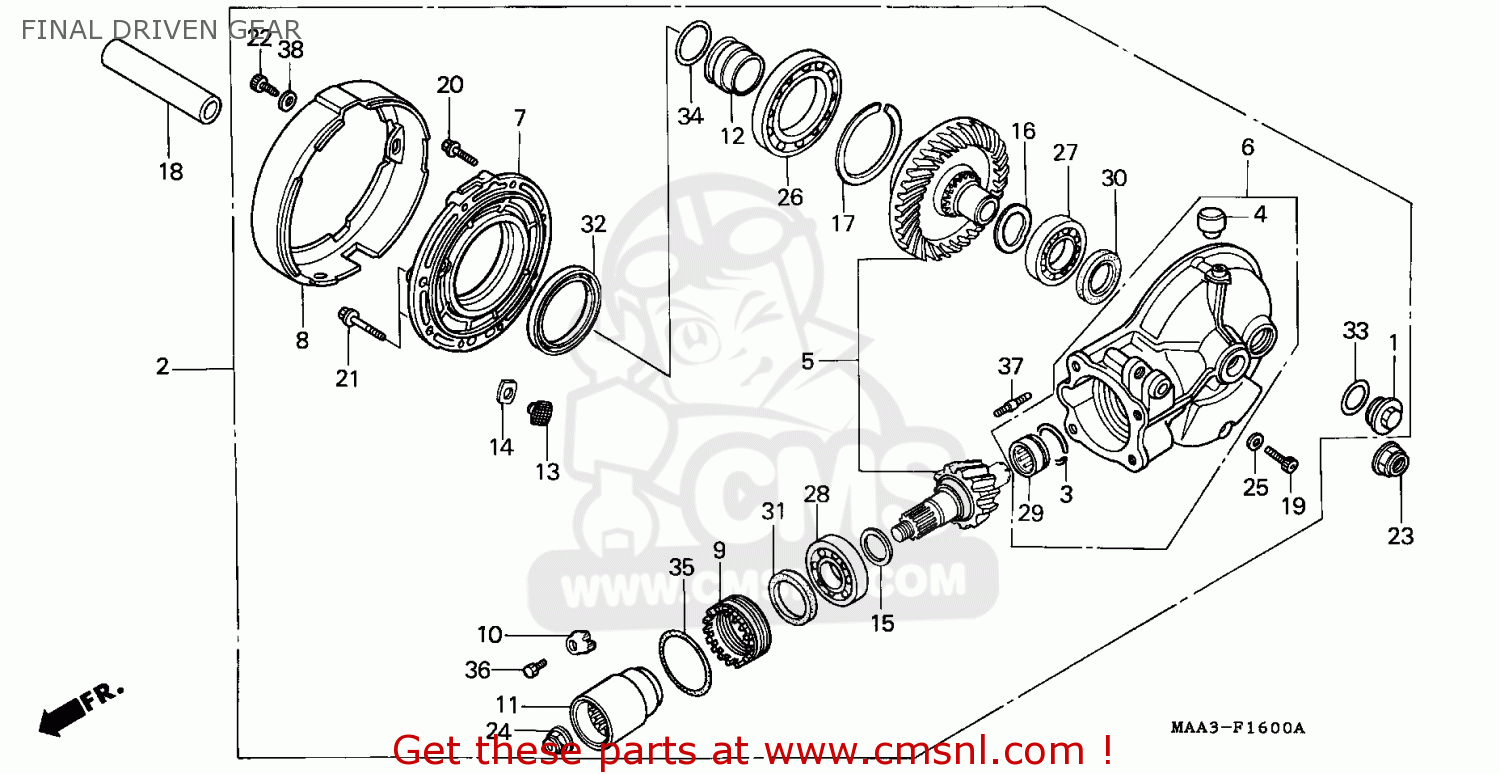

FINAL DRIVEN GEAR

Ref

Część #

opis

Ilość

1

12361035000
Ref: 1

CAP, TAPPET

€ 5.00

2

41300MAH000
Ref: 2

GEAR ASSY,FINAL

€ 2,454.00

3

41305MB4770
Ref: 3

RING,STOPPER

€ 5.50

4

41306MB0010
Ref: 4

CAP,BREATHER

€ 13.00

5

41310MM8305
Ref: 5

GEAR SET,FINAL

€ 585.50

6

41311MM8305
Ref: 6

CASE SET,FINAL

€ 1,106.00

7

41321ME5770
Ref: 7

COVER,GEAR CASE

€ 229.00

8

41324MAH000
Ref: 8

PLATE,DUST GUARD

€ 101.00

9

41331ME9010
Ref: 9

RETAINER,BEARING

€ 107.50

10

41332415000
Ref: 10

LOCK A BEARING AD

€ 2.00

10

41333415000
Ref: 10

LOCK B BEARING AD

€ 2.00

11

41410ME9770
Ref: 11

JOINT,PINION

€ 113.00

12

41433MB0010
Ref: 12

HOLDER,O-RING

€ 10.50

13

41436MB0310
Ref: 13

PIN,RING STOPPER

€ 20.00

14

41437MB0310
Ref: 14

SHIM A,STOP,PIN

€ 4.50

14

41438MB0310
Ref: 14

SHIM B,STOP.PIN

€ 4.50

15

41450MG8000
Ref: 15

SHIM A,PINION GEA

€ 7.50

15

41451MG8000
Ref: 15

SHIM B,PINION GEA

€ 7.50

15

41452MG8000
Ref: 15

SHIM C,PINION GEA

€ 7.50

15

41453MG8000
Ref: 15

SHIM D,PINION GEA

€ 7.50

15

41454MG8000
Ref: 15

SHIM E,PINION GEA

€ 7.50

15

41455MG8000
Ref: 15

SHIM F,PINION GEA

€ 7.50

15

41456MG8000
Ref: 15

SHIM G,PINION GEA

€ 7.50

16

41510MB0003
Ref: 16

WASHER,SPECIAL,

€ 8.50

17

41530MB0000
Ref: 17

SPACER.A.RINGGEAR

€ 13.00

17

41531MB0000
Ref: 17

SPACER B.RINGGEAR

€ 13.00

17

41532MB0000
Ref: 17

SPACER C,RINGGEAR

€ 13.00

17

41533MB0000
Ref: 17

SPACER.D,RINGGEAR

€ 13.00

17

41534MB0000
Ref: 17

SPACER.E,RINGGEAR

€ 13.00

17

41535MB0000
Ref: 17

SPACER.F.RINGGEAR

€ 13.00

17

41536MB0000
Ref: 17

SPACER.G.RINGGEAR

€ 13.00

17

41537MB0000
Ref: 17

SPACER,H.RINGGEAR

€ 13.00

17

41538MB0000
Ref: 17

SPACER,I,RINGGEAR

€ 13.00

18

42625MAH000
Ref: 18

COLLAR B,RR DIST

€ 27.00

19

90109ME5770
Ref: 19

BOLT,SOCKET,8X11

€ 6.50

20

90133MB0000
Ref: 20

BOLT,FLANGE,8X27

€ 8.50

21

90134HA0000
Ref: 21

BOLT,FLANG 10X35

€ 8.00

22

90170MB0000
Ref: 22

BOLT,HEX.,6X16

€ 3.50

23

90305MB4003
Ref: 23

NUT,FLANGE,18MM

€ 10.50

24

90381MT3000
Ref: 24

NUT,HEX,16MM

€ 6.00

25

90471580000
Ref: 25

PACKING 8MM

€ 2.00

26

91051MG8005
Ref: 26

B/BRG RAD N/COM

€ 84.50

27

91052MG8005
Ref: 27

B/BRG RAD N/COM

€ 38.00

28

91061MG8005
Ref: 28

B/BRG RAD N/COM

€ 79.50

29

91062MB4773
Ref: 29

NEEDLE BRG

€ 47.50

29

91062MG8005
Ref: 29

NEEDLE BRG

€ 47.50

30

91261MB0003
Ref: 30

OIL SEAL,34X50X7

€ 10.00

30

91261MB0005
Ref: 30

OILSEAL,34X50X7

€ 10.00

31

91262ME9003
Ref: 31

OIL SEAL,39X51X7

€ 12.50

31

91262ME9005
Ref: 31

OIL SEAL,39X51X7

€ 12.50

32

91265MB0003
Ref: 32

OIL SEAL.60X80X8

€ 15.00

33

91302001020
Ref: 33

O RING, 30.8M/M

€ 3.00

34

91356MB0005
Ref: 34

O-RING,35.2X2.4

€ 4.50

35

91359MB0000
Ref: 35

O-RING,58.5X3.5

€ 4.50

36

92101060120A
Ref: 36

BOLT,HEX.,6X12

€ 1.00

37

92900100320E
Ref: 37

BOLT,STUD,10X32

€ 3.50
