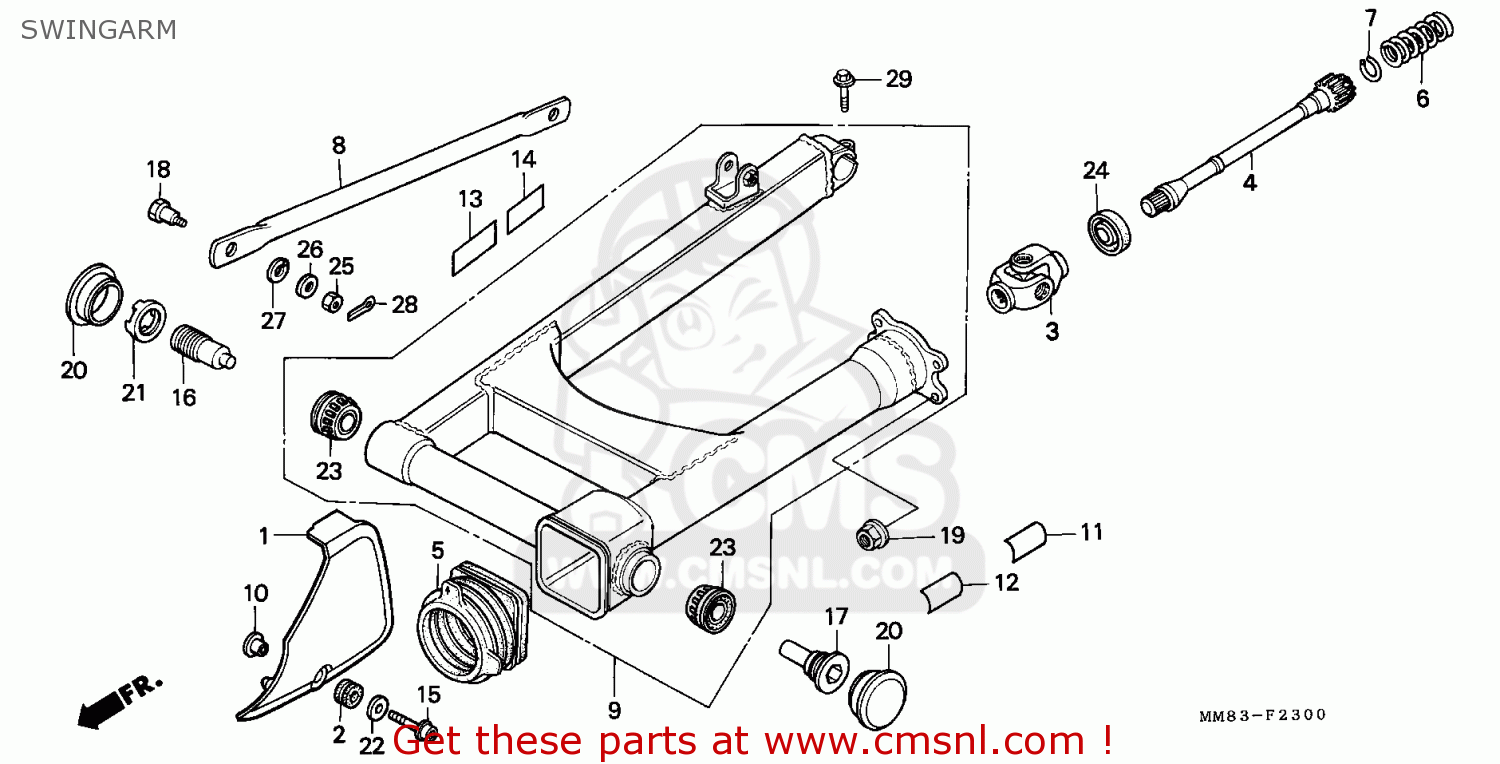

SWINGARM

Ref

Część #

opis

Ilość

1

11341MAA000
Ref: 1

COVER COMP,L REAR

€ 106.00

2

17622GB7900
Ref: 2

RUBBER,CUSHION

€ 3.50

3

40200MG8003
Ref: 3

JOINT COMP,YOKE

€ 198.00

4

40201MG8003
Ref: 4

SHAFT,PROP.

€ 196.50

5

40207MG8000
Ref: 5

BOOT,JOINT

€ 31.50

6

40215ME9003
Ref: 6

SPRING,SHAFT

€ 5.00

7

40221MB0000
Ref: 7

RING,STOPPER

€ 4.00

8

43431ME9010
Ref: 8

ARM,RR.BRAKE STOP

€ 22.00

9

52100MM8000ZA
Ref: 9

ARM ASSY.,S*NH-1*

€ 881.50

10

52159KB7000
Ref: 10

COLLAR,CHAINGUARD

€ 6.00

12

87505MAA610
Ref: 12

LABEL,TIRE

€ 5.00

14

87512MY0870
Ref: 14

LABEL,ACCESSORY L

€ 6.00

15

90080MG8000
Ref: 15

BOLT,FLANGE,SOCKE

€ 4.00

16

90121HA6000
Ref: 16

BOLT,R(RR.FORK) P

€ 45.50

17

90122MB0000
Ref: 17

BOLT,L.RR.FORK

€ 30.00

18

90133286000
Ref: 18

BOLT,STOPPER ARM

€ 4.50

19

90308357000
Ref: 19

NUT,HEX.,10MM

€ 4.00

20

90312MB0700
Ref: 20

CAP,R.LOCK NUT

€ 16.00

21

90355469000
Ref: 21

NUT,RR.FORK PIVOT

€ 15.00

22

90503SA0000
Ref: 22

WASH PLAIN 9MM

€ 3.00

23

91066HA7672
Ref: 23

BRG,TAP.17X40X13.

€ 44.00

24

91261ME9005
Ref: 24

OIL SEAL,27X43X7

€ 11.00

26

9410108000
Ref: 26

WASHER,PLAIN,8MM

€ 1.00

27

9411110000
Ref: 27

SPG-WASHER 10MM

€ 1.00

28

9420120150
Ref: 28

PIN,COTTER 2.0X15

€ 1.00

29

957010803200
Ref: 29

BOLT,FLANGE,8X32

€ 1.50

wszystkie zespoły
