FRONT ARM (2)

T500

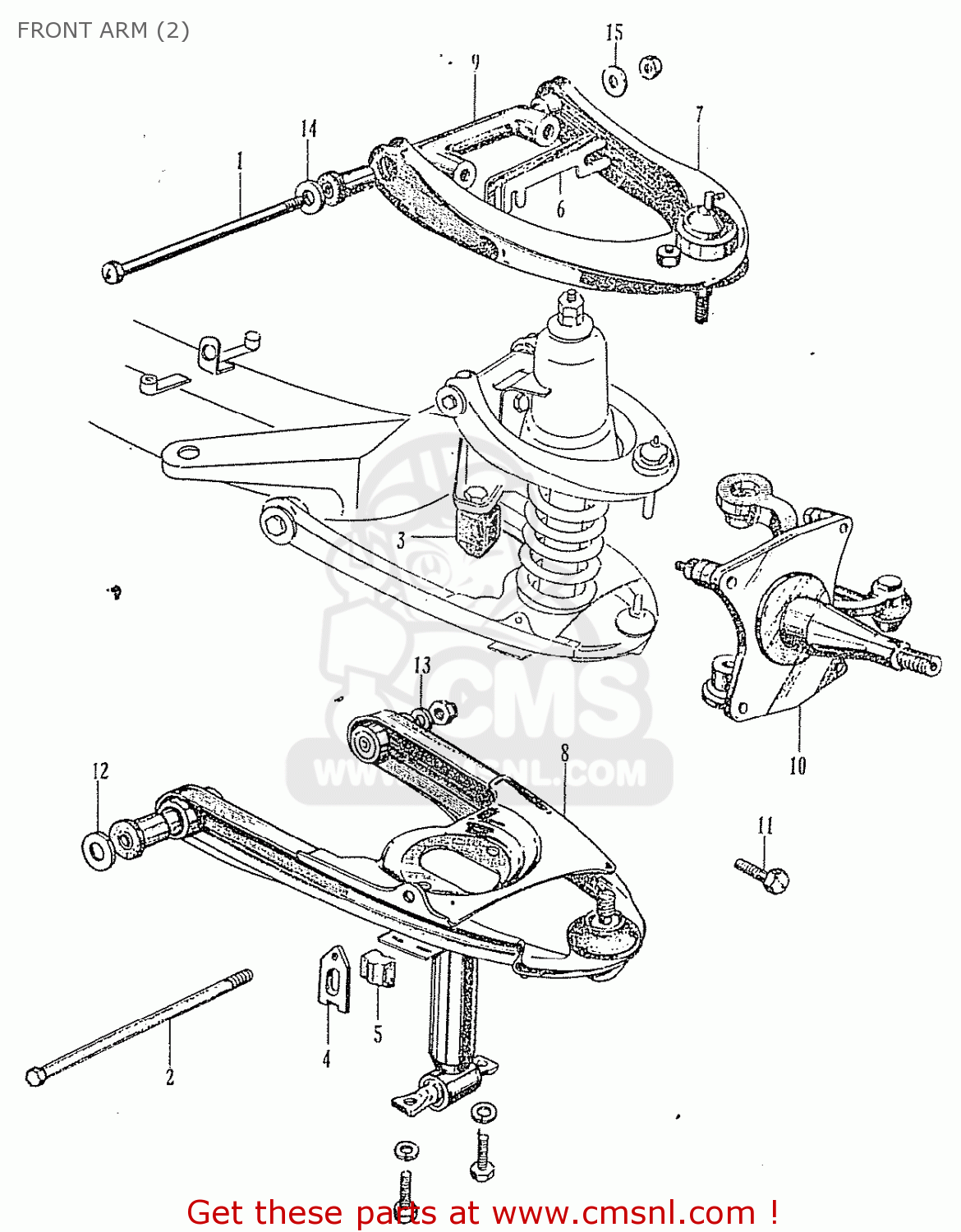

Front arm (2) Schemat T500

FRONT ARM (2) T500
FRONT ARM (2) T500
ceny są w EUR
Ref
Część #
opis
Ilość
1
51381500030
Ref: 1
AK280-1001090
SHAFT, UPPER ARM
€ 0.00
1
51381500040
Ref: 1
AK280F-1003950
SHAFT, UPPER ARM
51381500040
€ 36.50
2
51391500010
Ref: 2
AK280-1001090
SHAFT, UPPER ARM
51391500010
€ 36.50
3
51901500010
Ref: 3
AK280-1001090
STOPPER, FRONT BUMPER
€ 0.00
4
51753500020
Ref: 4
AK280-1001090
PLATE, STABILISER END
€ 0.00
5
51761500010
Ref: 5
AK280-1001090
RUBBER, STABILISER END
€ 0.00
6
51393500010
Ref: 6
AK280-1001090
SHIM, UPPER ARM
€ 0.00
6
51330500000
Ref: 6
AK280-1001090
ARM, RIGHT UPPER
€ 0.00
7
51340500000
Ref: 7
AK280-1001090
ARM, LEFT UPPER
€ 0.00
7
51360500000
Ref: 7
AK280-1001090
ARM, RIGHT UPPER
€ 0.00
8
51370500000
Ref: 8
AK280-1001090
ARM, LEFT UPPER
€ 0.00
9
51348500000
Ref: 9
AK280-1001090
BRACKET, UPPER ARM
€ 0.00
9
51211500050
Ref: 9
AK280-1001090
KNUCKLE, RIGHT
€ 0.00
10
51212500010
Ref: 10
AK280-1001090
KNUCKLE, LEFT
€ 0.00
11
90127500303
Ref: 11
AK280-1001090
AK280-1002977
BOLT, UPPER ARM
€ 0.00
11
90127500010
Ref: 11
AK280-1002978
BOLT, UPPER ARM
€ 0.00
12
90503500010
Ref: 12
AK280-1001090
WASHER A, SIDE
€ 0.00
13
90509500010
Ref: 13
AK280-1001090
WASHER B SIDE
€ 0.00
14
90522500000
Ref: 14
AK280-1001090
WASHER A, UPPER ARM
90522500000
€ 2.00
15
90523500000
Ref: 15
AK280-1001090
WASHER B, UPPER ARM
€ 0.00
15
90523500010
Ref: 15
AK280F-1020644
WASHER B, UPPER ARM
€ 0.00
15
90951500000
Ref: 15
AK280-1001090
NIPPLE, GREASE
€ 0.00
15
9401212000
Ref: 15
AK280F-1003950
NUT, SLOTTED, 12 MM
€ 1.50
