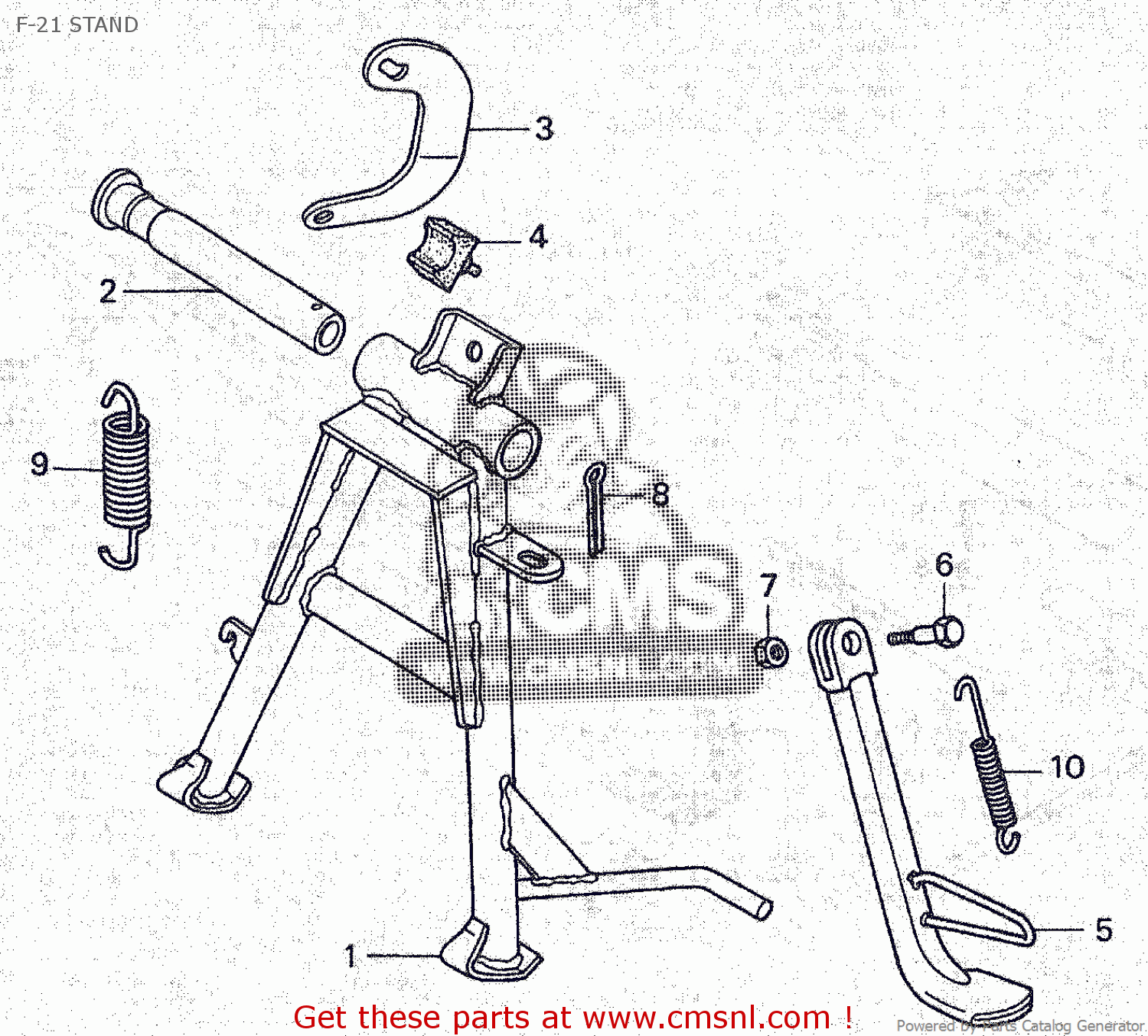

F-21 STAND

NF100T WAVE 1994 (R)

F-21 stand Schemat NF100T WAVE 1994 (R)

F-21 STAND NF100T WAVE 1994 (R)

ceny są w EUR

Ref

Część #

opis

Ilość

1

50500KPH900
Ref: 1

STAND COMP,MAIN

€ 53.50

2

50512KPH900
Ref: 2

SHAFT,RR BRK PIVO

€ 13.00

3

50523KPH900
Ref: 3

HOOK,MAIN STAND S

€ 5.50

4

50524397000
Ref: 4

RUBBER,STAND STOP

€ 4.50

5

50530KPH900
Ref: 5

BARCOMPSIDESTAND

€ 0.00

6

90108223000
Ref: 6

SCREW,STAND PIVOT

€ 4.50

7

94002100000S
Ref: 7

NUT,HEX.,10MM

€ 1.00

8

9420130250
Ref: 8

PIN,SPLIT,3X25

€ 1.00

9

9501471102
Ref: 9

SPG.A,MAIN STAND

€ 2.50

10

9501472102
Ref: 10

SPRING,SIDE STAND

€ 4.50
