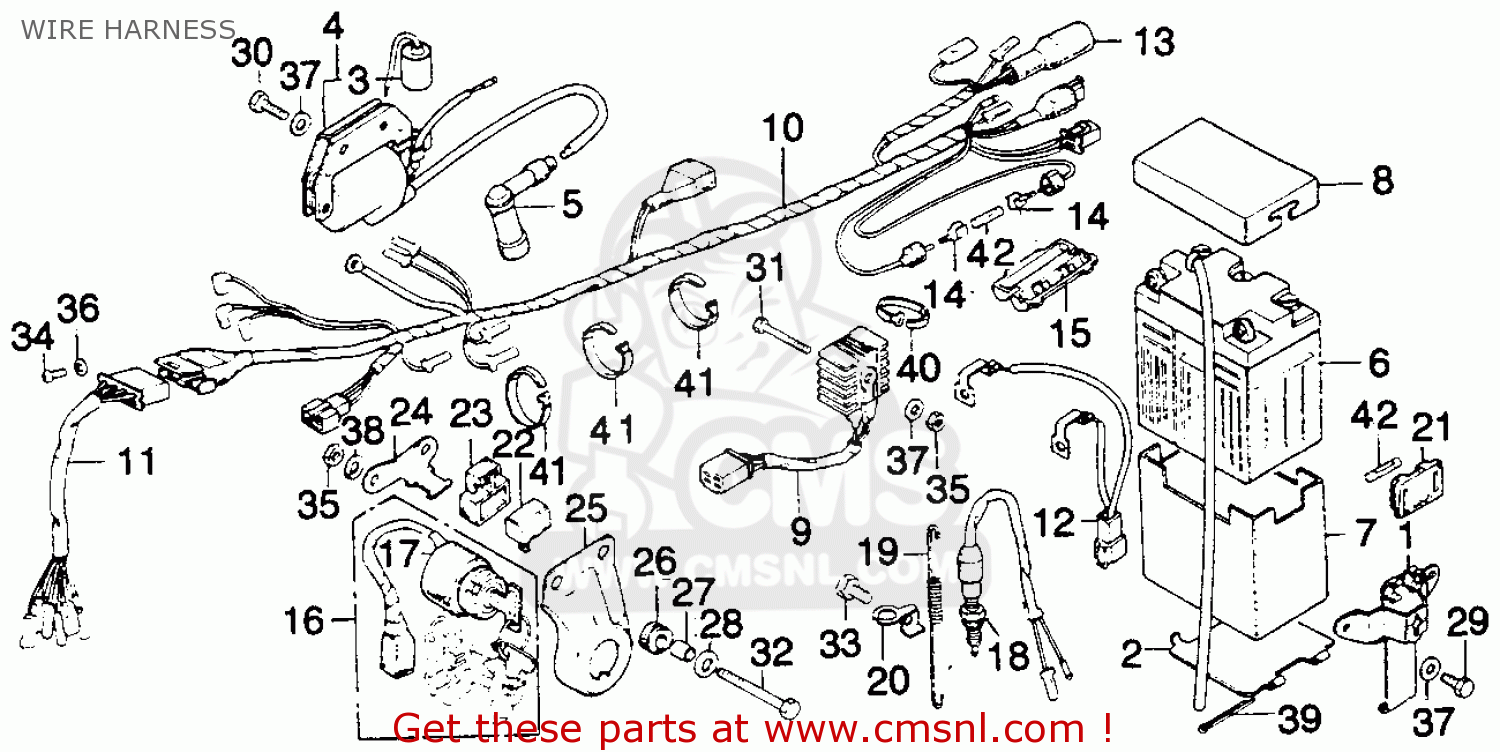

WIRE HARNESS

Ref

Część #

opis

Ilość

1

17234358000
Ref: 1

PLATE, BATTERY HINGE

€ 15.50

2

17235358000
Ref: 2

PLATE, HINGE HOOK

€ 8.00

3

30250329305
Ref: 3

CONDENSER ASSY.

€ 29.50

4

30500358003
Ref: 4

COIL, IGNITION

€ 117.00

4

30500950405
Ref: 4

COIL ASSY.AC IGN

€ 117.00

5

30700098153
Ref: 5

CAP,SUPPRESSOR

€ 19.00

5

30700098158
Ref: 5

CAP ASSY.

€ 19.00

5

30700098163
Ref: 5

CAP ASSY NOISE SU

€ 19.00

5

30700259810
Ref: 5

CAP

€ 19.00

6

31500329671
Ref: 6

BATTERY,6N6

€ 35.50

6

31500324601
Ref: 6

BATTERY ASSY.

€ 35.50

6

31500329677
Ref: 6

BATT,ASSY 6N6-3B

€ 35.50

6

9820263260
Ref: 6

BATTERY 6N6-3B

€ 35.50

6

9820363250
Ref: 6

BATTERY 6N6

€ 35.50

6

9820363260
Ref: 6

BATTERY ASSY,6N6

€ 35.50

7

31532358000
Ref: 7

COVER A, BATTERY

€ 9.00

8

31533358000
Ref: 8

COVER B, BATTERY

€ 10.50

9

31700358013
Ref: 9

RECTIFIER ASSY.

€ 93.00

9

31700358305
Ref: 9

RECTIFIER,SILICON

€ 93.00

10

32100358000
Ref: 10

HARNESS A,WIRE

€ 219.00

11

32105358000
Ref: 11

WIRE HARNESS B

€ 35.50

12

32106358000
Ref: 12

WIRE

€ 8.00

13

32108046000
Ref: 13

CONNECTOR,HARNESS

€ 5.50

14

32112230000
Ref: 14

CONNECTOR,FUSE

€ 6.00

15

32120329000
Ref: 15

CASE,FUSE CONN.

€ 4.50

16

35010361007
Ref: 16

KEY SET

€ 176.50

16

35011329670
Ref: 16

KEY-SET

€ 176.50

16

35011356305
Ref: 16

KEY SET

€ 176.50

18

35350KJ9405
Ref: 18

SWITCH ASSY.,RR.S

€ 21.50

18

35350336000
Ref: 18

SWITCH,STOP LAMP

€ 21.50

19

35357358000
Ref: 19

SPRING, STOP SW.

€ 12.50

20

35358358000
Ref: 20

STAY, STOP SWITCH

€ 2.50

21

38205115000
Ref: 21

CASE,FUSE

€ 4.50

22

38300GF0405
Ref: 22

RELAY ASSY WINKER

€ 39.50

22

38300089671
Ref: 22

RELAY ASSY,WINKER

€ 39.50

22

38300243670
Ref: 22

SIGNAL STAT

€ 31.50

22

38300428004
Ref: 22

RELAY ASSY,WINKER

€ 39.50

22

38301428671
Ref: 22

RELAY COMP,WINKER

€ 39.50

22

38310428671
Ref: 22

RELAY SET,WINKER

€ 39.50

23

38306107670
Ref: 23

SUSPENSION,WINKER

€ 24.00

24

38555358000
Ref: 24

STAY

€ 5.00

25

50375292020B
Ref: 25

BRACKET SWITCH

€ 14.50

26

84905333000
Ref: 26

RUBBER,CUSHION

€ 4.00

27

84906118000
Ref: 27

COLLAR,NO.BRACKET

€ 2.00

28

90525030000
Ref: 28

WASHER, HANDLE

€ 3.00

29

9200006012
Ref: 29

BOLT,HEX 6X12

€ 1.00

29

9210106012
Ref: 29

BOLT,HEX.,6X12

€ 1.00

29

92101060120A
Ref: 29

BOLT,HEX.,6X12

€ 1.00

30

9200006020
Ref: 30

BOLT,HEX 6X20

€ 1.00

30

92101060200A
Ref: 30

BOLT,HEX.,6X20

€ 1.00

31

9200006036
Ref: 31

BOLT,HEX 6X36

€ 1.50

31

9220006035
Ref: 31

BOLT, HEX., 6X35

€ 1.50

31

92201060350A
Ref: 31

BOLT,HEX,6X35

€ 1.50

32

9200006045
Ref: 32

BOLT,HEX 6X45

€ 1.00

32

92000060450A
Ref: 32

BOLT,HEX.,6X45

€ 1.00

32

92101060450A
Ref: 32

BOLT,HEX,6X45

€ 1.00

33

92000080100A
Ref: 33

BOLT,HEX.,8X10

€ 1.00

33

92100080100A
Ref: 33

BOLT,HEX.,8X10

€ 1.00

33

92101080100A
Ref: 33

BOLT HEX,8X10

€ 1.00

34

9390124110
Ref: 34

SCREW,4X8

€ 0.50

35

90310KA3711
Ref: 35

NUT HEX 6MM

€ 1.00

35

94000060000S
Ref: 35

NUT,HEX.,6MM

€ 1.00

35

9400106000
Ref: 35

NUT,HEX 6MM

€ 1.00

35

94001060000S
Ref: 35

NUT,HEX 6MM

€ 1.00

35

94001060080S
Ref: 35

NUT,HEX.,6MM

€ 1.00

35

94001062000S
Ref: 35

NUT,HEX.,6MM

€ 1.00

35

9403006000
Ref: 35

NUT,HEX 6MM

€ 1.00

36

9410104000
Ref: 36

WASHER,4MM

€ 1.00

37

9410106000
Ref: 37

WASHER,PLAIN, 6MM

€ 0.50

37

9410106080
Ref: 37

WASHER PLAIN 6MM

€ 1.00

38

9411106000
Ref: 38

WASHER,SPRING,6MM

€ 1.00

39

9420130500
Ref: 39

PIN COTTER 3.0MM

€ 0.50

40

32161404000
Ref: 40

BAND,BI WIRE

€ 3.50

40

9501461100
Ref: 40

BAND A1,WIRE

€ 3.50

41

9501461300
Ref: 41

BAND A3,WIRE

€ 2.00

42

9820011000
Ref: 42

FUSE,10A,25MM

€ 1.00
