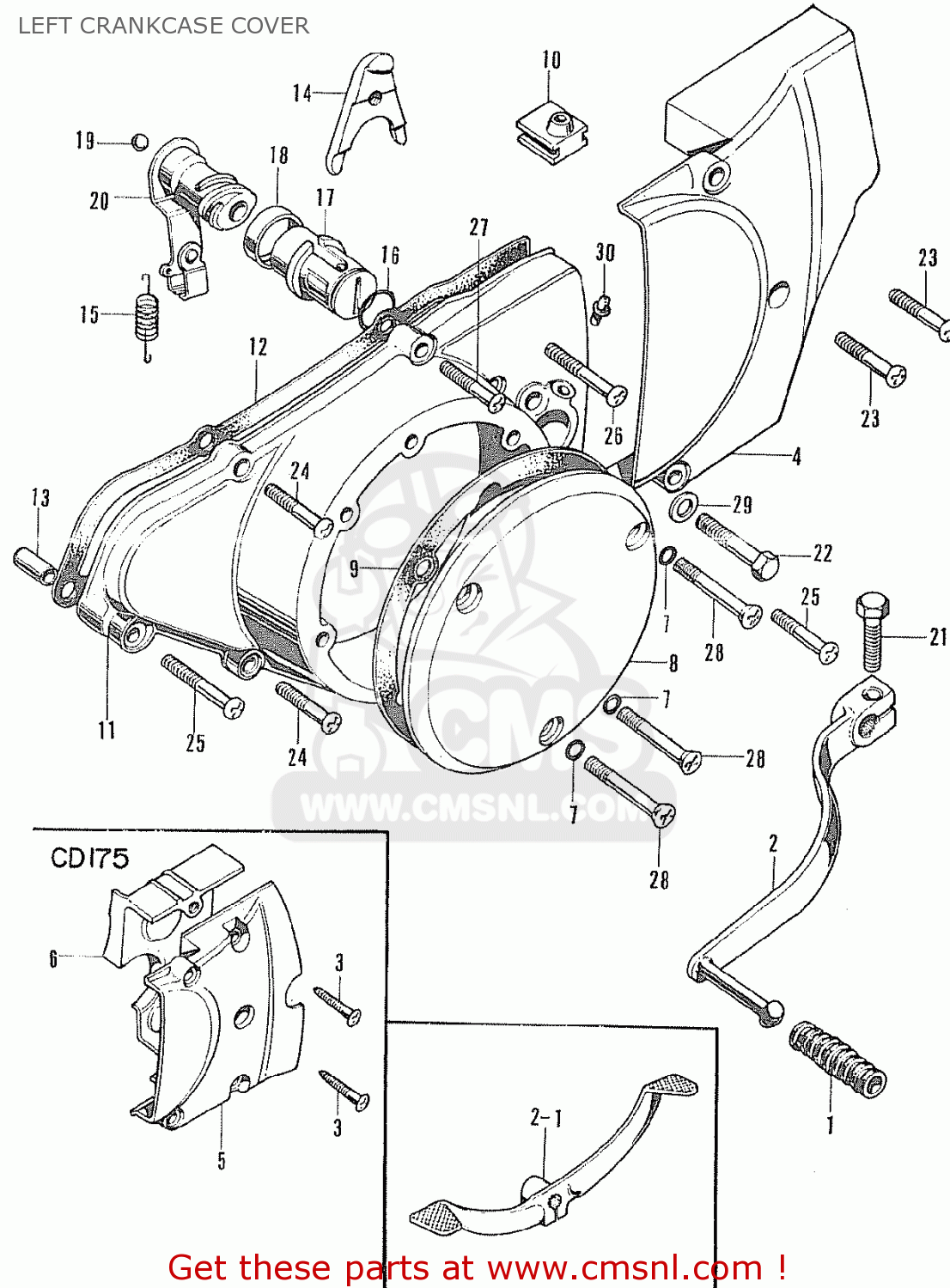

LEFT CRANKCASE COVER

Ref

Część #

opis

Ilość

1

24781205000
Ref: 1

RUBBER,PEDAL

€ 1.50

2

24700307000
Ref: 2

PEDAL,GEAR CHANGE

€ 88.00

2

24700304010
Ref: 2

PEDAL,GEAR CHANGE

€ 88.00

4

11661306010
Ref: 4

COVER,A,CHAIN

€ 45.00

7

91301216000
Ref: 7

O RING, 5.5X1.5

€ 3.00

8

11431302000
Ref: 8

COVER,DYNAMO

€ 62.00

8

11431338000
Ref: 8

COVER,DYNAMO

€ 62.00

9

11691216000
Ref: 9

GASKET, DYNAMO (MCA)

€ 2.50

10

22875216000
Ref: 10

JOINT CLUTCH

€ 5.50

11

11340302020
Ref: 11

COVER,L CRANKCASE

€ 124.50

12

11395302010
Ref: 12

GASKET,L COVER (MCA)

€ 16.00

13

90703200000
Ref: 13

PIN,KNOCK 10X14

€ 2.00

14

22844200000
Ref: 14

ADJUSTER FIXING

€ 8.00

14

22844200010
Ref: 14

PIECE,ADJ.FIXING

€ 8.00

15

22815216010
Ref: 15

SPRING LEVER

€ 3.50

16

91354702000
Ref: 16

O RING,23MM

€ 3.50

17

22841216030
Ref: 17

ADJUSTER,CLUTCH

€ 44.50

18

91205222005
Ref: 18

OIL-SEAL

€ 4.00

19

90901230000
Ref: 19

BALL, STEEL, 5/16

€ 1.00

20

22810216030
Ref: 20

THREAD CLUTCH

€ 16.00

21

9200006020
Ref: 21

BOLT,HEX 6X20

€ 1.00

22

9200006036
Ref: 22

BOLT,HEX 6X36

€ 1.50

23

9350006020
Ref: 23

SCREW,CROSS 6X20

€ 1.00

24

9350006025
Ref: 24

BOLT,HEX 6X25

€ 1.00

25

9350006032
Ref: 25

SCREW,CROSS 6X32

€ 1.00

26

9350006036
Ref: 26

SCREW,CROSS 6X36

€ 1.50

27

9350006040
Ref: 27

SCREW,CROSS 6X40

€ 1.00

28

9371506040
Ref: 28

SCREW,OVAL 6X40

€ 1.50

29

9410106000
Ref: 29

WASHER,PLAIN, 6MM

€ 0.50

30

9620130000
Ref: 30

NIPPLE,GREASE4.5

€ 2.50

wszystkie zespoły
