REAR FENDER

CBR1000F 1991 (M) ENGLAND

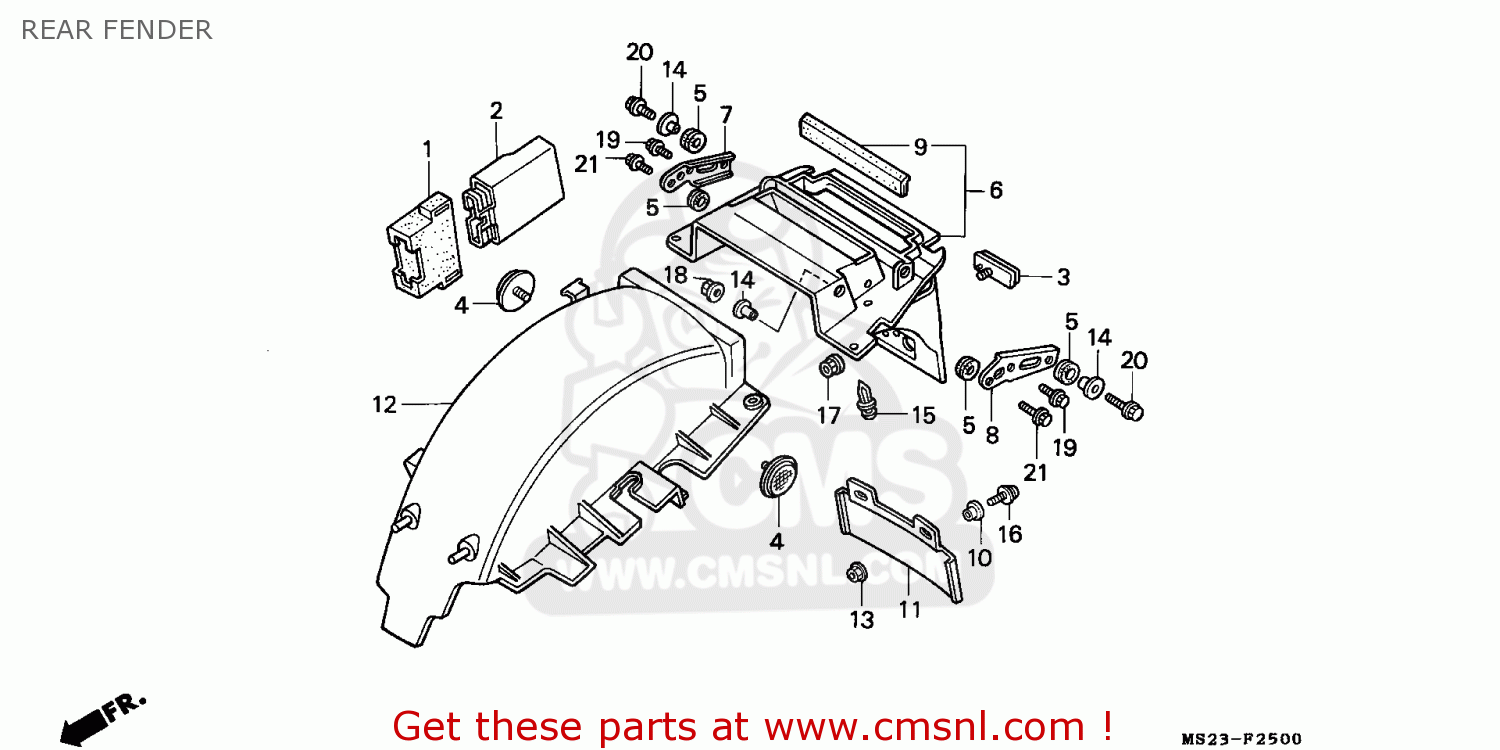

Rear fender Schemat CBR1000F 1991 (M) ENGLAND

REAR FENDER CBR1000F 1991 (M) ENGLAND
REAR FENDER CBR1000F 1991 (M) ENGLAND
ceny są w EUR
Ref
Część #
opis
Ilość
1
30405MT6000
Ref: 1
CUSHION,SPARK UNI
30405MT6000
€ 20.00
2
30410MS2010
Ref: 2
SPARK UNIT
30410MS2010
€ 622.50
3
33741MC7612
Ref: 3
REFLECTOR,REFLEX
33741MC7612
€ 17.50
5
61304415000
Ref: 5
RUBB,LIGHT MOUNT
61304415000
€ 3.50
6
80100MS2010
Ref: 6
FENDER A,RR
€ 82.00
7
80101MS2000
Ref: 7
STAY,R.RR.FENDER
80101MS2000
€ 9.00
8
80102MS2000
Ref: 8
STAY,L.RR.FENDER
80102MS2000
€ 9.00
9
80105MS2300
Ref: 9
RUBBER,FENDER SEA
€ 7.00
12
80200MS2000
Ref: 12
FENDER COMP.(B)
80200MS2000
€ 74.50
14
90501425000
Ref: 14
COLLAR,6.2X12
90501425000
€ 5.00
15
90683GR1003
Ref: 15
CLIP,BODY COVER
90683GR1003
€ 2.50
17
9405005080
Ref: 17
NUT,FLANGE,5MM
9405005080
€ 1.00
21
957010602500
Ref: 21
BOLT,FLANGE,6X25
957010602500
€ 1.50
