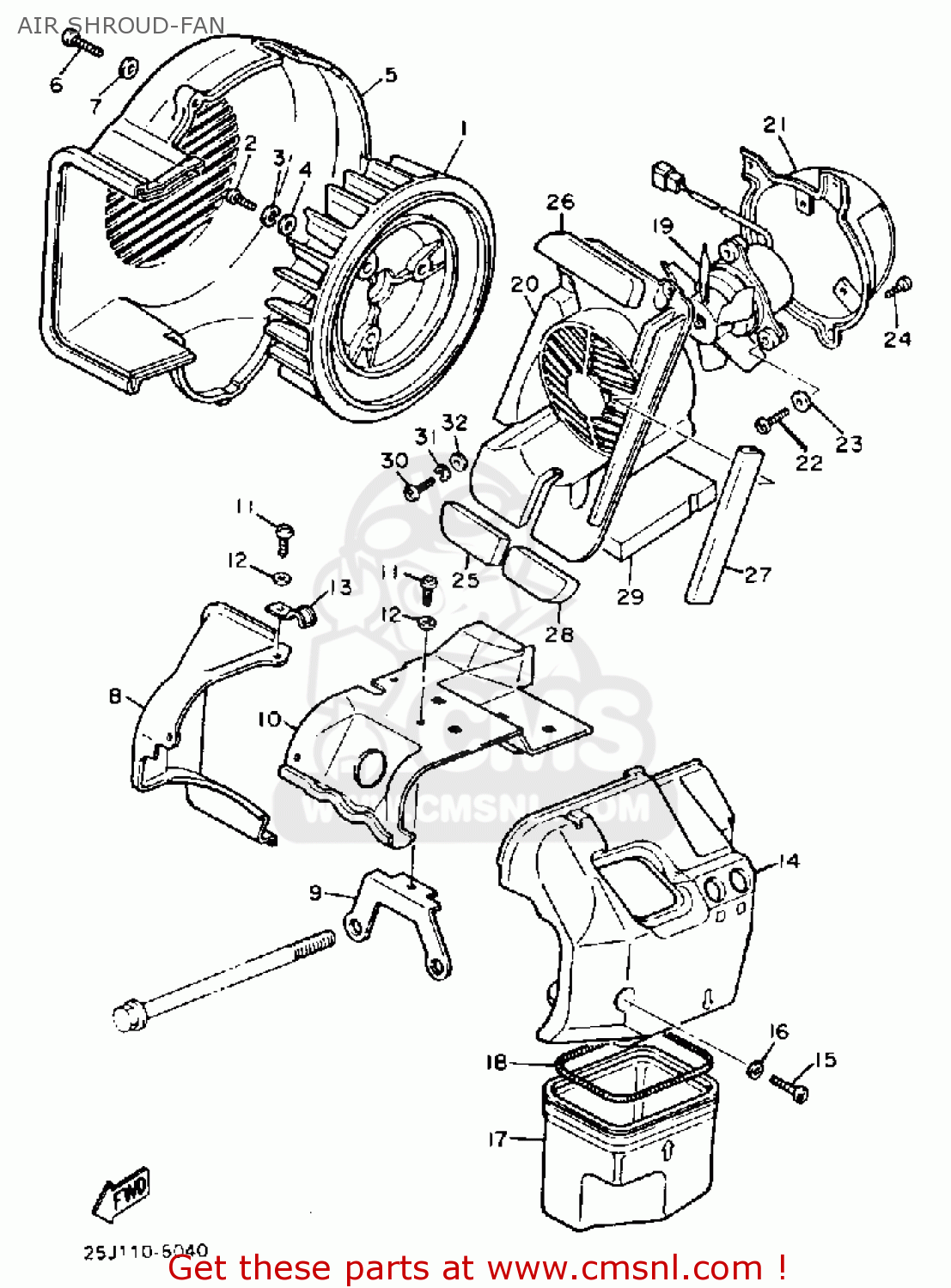

AIR SHROUD-FAN

ref

onderdeelnr

omschrijving

hoeveelheid

1

25G1261100
ref: 1

FAN

€ 44.00

2

9858006018
ref: 2

SCREW, PAN HEAD (N151)

€ 2.00

3

9299506100
ref: 3

WASHER(6A1)

€ 0.50

4

90201061A5
ref: 4

WASHER, PLATE (4H7)

€ 1.50

5

25G1261600
ref: 5

COVER, FAN CASE

€ 23.50

6

9850606025
ref: 6

SCREW PAN HEAD

€ 1.00

7

9290606600
ref: 7

WASHER, PLATE (898 FRAME)

€ 1.00

8

25G1265100
ref: 8

AIR SHROUD, CYLINDER 1

€ 30.00

9

25G1263700
ref: 9

STAY 1

€ 8.50

10

25H1265200
ref: 10

AIR SHROUD, CYLINDER 2

€ 24.00

11

9858006010
ref: 11

SCREW PAN HEAD

€ 2.50

12

90201061A5
ref: 12

WASHER, PLATE (4H7)

€ 1.50

13

9046206054
ref: 13

CLAMP (7G5)

€ 3.00

14

25G1265300
ref: 14

AIR SHROUD, CYLINDER 3

€ 18.00

15

9858006020
ref: 15

SCREW PAN HEAD

€ 2.50

16

90201061A5
ref: 16

WASHER, PLATE (4H7)

€ 1.50

17

25G1266100
ref: 17

DUCT

€ 16.00

18

9050106725
ref: 18

SPRING, COMPRESSION (25G)

€ 3.50

19

25G1263000
ref: 19

MOTOR ASSY

€ 262.50

20

25G1262100
ref: 20

CASE, FAN

€ 32.50

21

25G1262200
ref: 21

CASE, FAN 2

€ 57.00

22

9850604018
ref: 22

SCREW, PANHEAD

€ 1.00

23

9020904232
ref: 23

WASHER (25G)

€ 2.00

24

9778050125
ref: 24

YBS83-525 SCREW,PANH.TAPPING

€ 1.50

25

25G1262600
ref: 25

PAD, FAN CASE

€ 3.00

26

25G1262700
ref: 26

PAD, FAN CASE 2

€ 6.00

27

25G1266900
ref: 27

DAMPER, SHROUD 4

€ 11.00

28

25G1262J00
ref: 28

PAD, FAN CASE 3

€ 2.00

29

25G1267800
ref: 29

DAMPER, SHROUD 5

€ 7.00

30

9850606016
ref: 30

SCREW PAN HEAD

€ 1.00

31

9290606100
ref: 31

WASHER,SPRING

€ 0.50

32

9290606600
ref: 32

WASHER, PLATE (898 FRAME)

€ 1.00

alle samenstellingen
