De online onderdelen catalogus

REAR CUSHION LEVER

AN400 BURGMAN 2008 (K8) USA (E03)

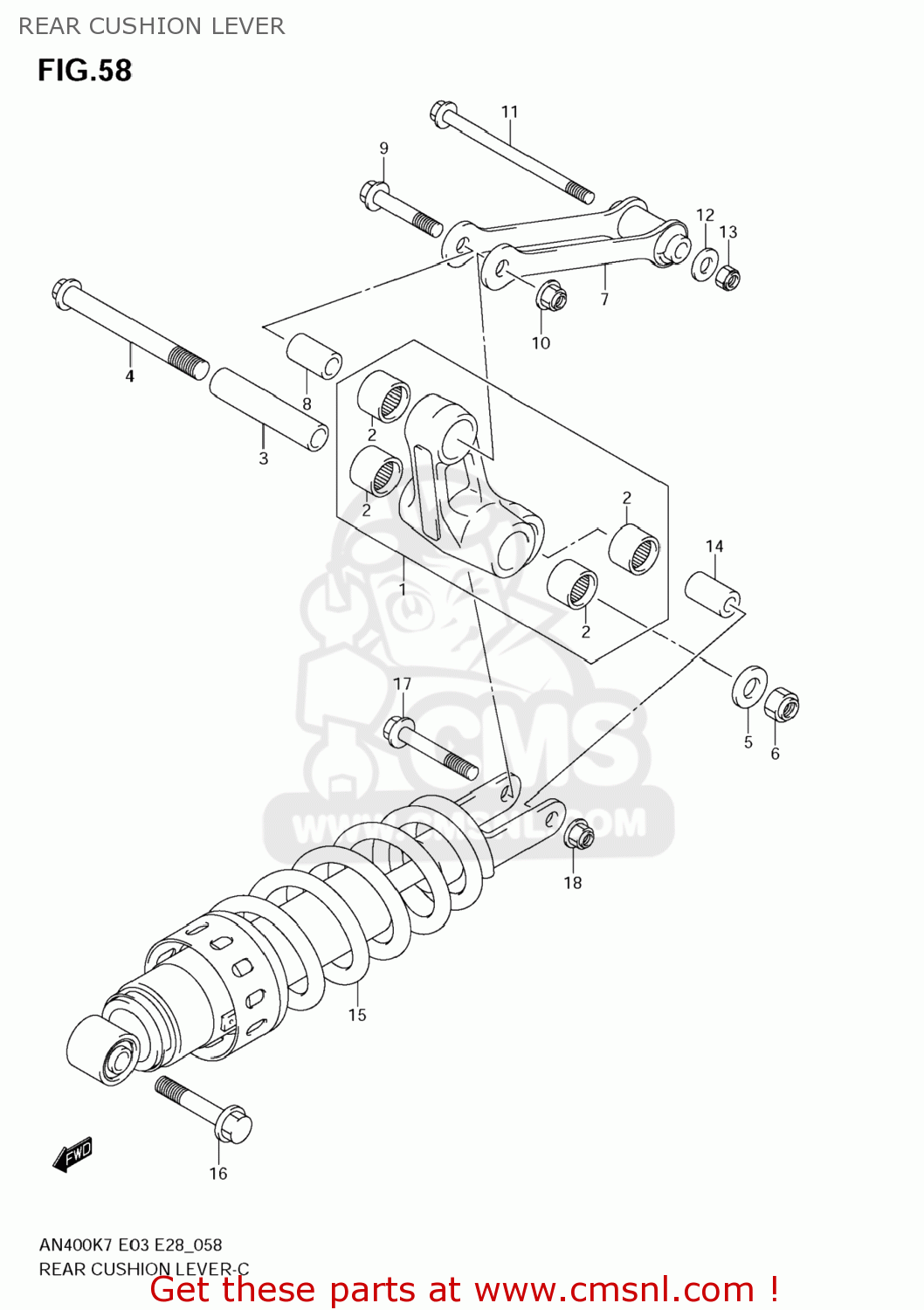

Rear cushion lever technisch schema AN400 BURGMAN 2008 (K8) USA (E03)

REAR CUSHION LEVER AN400 BURGMAN 2008 (K8) USA (E03)
REAR CUSHION LEVER AN400 BURGMAN 2008 (K8) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
6260105820
ref: 1
LEVER SET,RR CUSHION
€ 138.50
2
0926317034
ref: 2
BEARING(17X24X26)
0926317034
€ 19.00
3
6264608G00
ref: 3
SPACER,RR CUSHION ROD
6264608G00
€ 22.00
4
6262119D00
ref: 4
BOLT,RR CUSHION ROD
6262119D00
€ 11.50
5
0916012080
ref: 5
WASHER(12X25X4)
0916012080
€ 4.50
6
083192112A
ref: 6
NUT
083192112A
€ 3.00
7
6264014F30
ref: 7
ROD,RR CUSHION LEVER
€ 54.50
8
6268440A10
ref: 8
SPACER,RR CUSHION LEVER
6268440A10
€ 9.00
9
0910310101
ref: 9
BOLT(10X54)
0910310101
€ 3.00
10
083193110A
ref: 10
NUT
083193110A
€ 2.50
11
0910310198
ref: 11
BOLT(10X132)
0910310198
€ 6.00
12
0916010039
ref: 12
WASHER(10.5X22X2.3)
0916010039
€ 2.00
13
0915910027
ref: 13
NUT
0915910027
€ 3.00
14
6268440A10
ref: 14
SPACER,RR CUSHION LEVER
6268440A10
€ 9.00
15-1
6210005H10
ref: 15-1
ABSORBER ASSY,RR SHOCK
6210005H10
€ 662.50
15-2
6210005H20
ref: 15-2
ABSORBER ASSY,RR SHOCK
€ 554.50
16
0910310126
ref: 16
BOLT(10X48)
0910310126
€ 3.50
17
0910310143
ref: 17
BOLT(10X55)
0910310143
€ 3.50
18
083193110A
ref: 18
NUT
083193110A
€ 2.50
