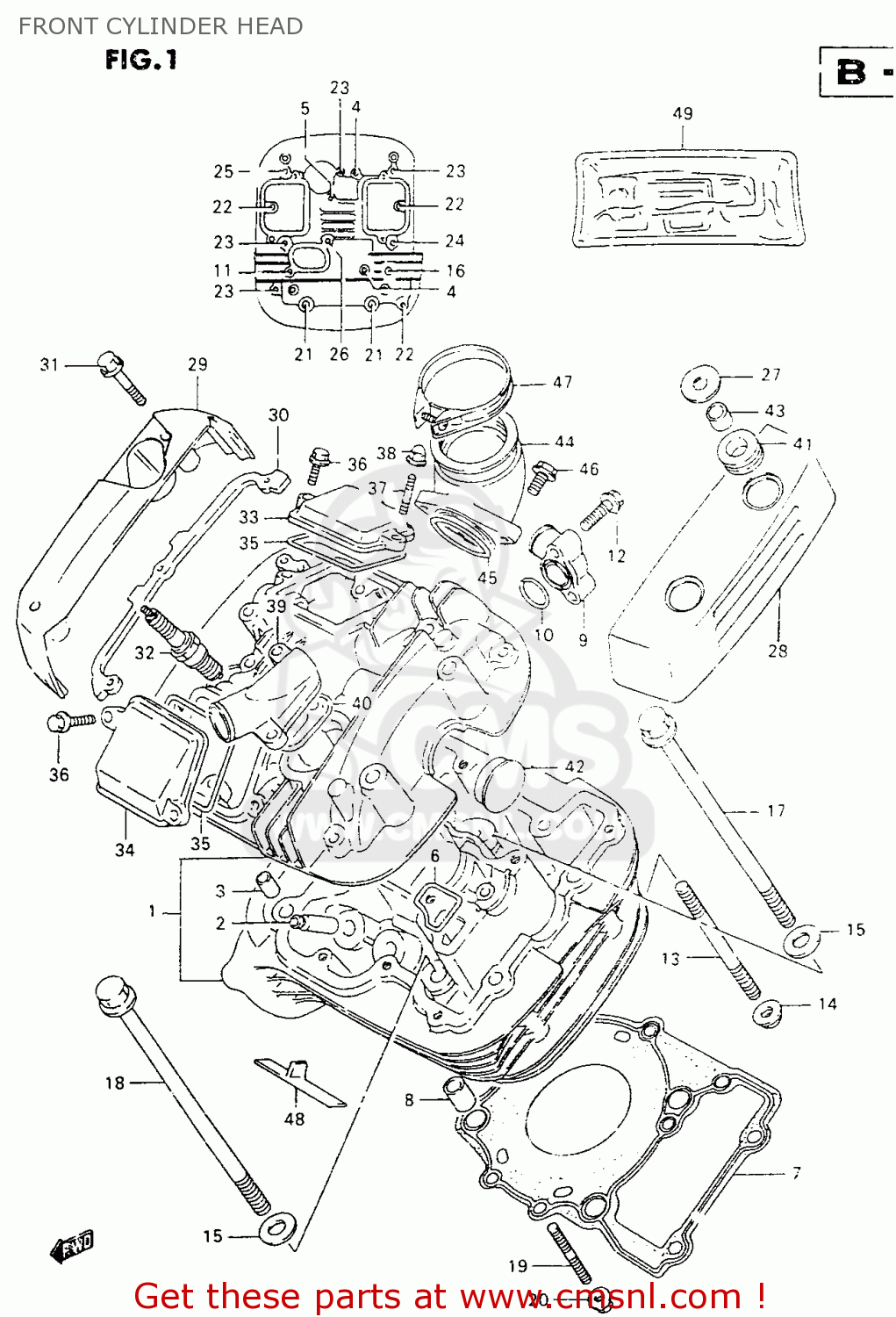

FRONT CYLINDER HEAD

ref

onderdeelnr

omschrijving

hoeveelheid

1-1

1110148E50
ref: 1-1

HEAD ASSY,CYLINDER FR

€ 978.50

1-2

1110148E60
ref: 1-2
E18

HEAD ASSY,CYLINDER FR

€ 803.00

2

1111538A71
ref: 2

GUIDE,VALVE

€ 18.50

3

0920611004
ref: 3

PIN(8.4X11X14)

€ 4.50

4

0910306101
ref: 4

BOLT(6X50)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.00

6

1112338A00
ref: 6

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

7

1114145C00
ref: 7

GASKET,CYLINDER HEAD FR (NAS)

€ 45.50

8

0421113189
ref: 8

PIN

€ 2.00

9

1116945C10
ref: 9

UNION,CYLINDER HEAD WATER

€ 27.00

10-1

0928018010
ref: 10-1
MODEL V

O-RING (D:2.4 ID:17.8)

€ 4.00

10-2

0928018004
ref: 10-2
MODEL W

O RING(D:2.4,ID:17.8)

€ 4.00

11

0155006207
ref: 11

BOLT

€ 2.00

12

0154706253
ref: 12

SCREW

€ 2.00

13

0910808144
ref: 13

BOLT,STUD

€ 4.00

14

0831610087
ref: 14

NUT

€ 2.00

15

0916010060
ref: 15

WASHER (10.5X22X2.3)

€ 2.00

16

0910308040
ref: 16

BOLT(8X140)

€ 4.00

17

0910310133
ref: 17

BOLT(10X155)

€ 7.50

18

0910310134
ref: 18

BOLT(10X165)

€ 7.50

19

0142106408
ref: 19

STUD BOLT

€ 2.50

20

0831610067
ref: 20

NUT

€ 2.00

21

0910308180
ref: 21

BOLT(8X245)

€ 13.00

22-1

0155006257
ref: 22-1
MODEL V

BOLT

€ 1.50

22-2

0155006253
ref: 22-2
MODEL W

BOLT

€ 1.50

23

0155006307
ref: 23

BOLT

€ 2.00

24

0712006307
ref: 24

BOLT

€ 2.50

25

0155006407
ref: 25

BOLT

€ 3.00

26

0910306102
ref: 26

BOLT(6X55)

€ 2.00

27-1

0916008098
ref: 27-1
MODEL V

WASHER (8.2X24X1.6)

€ 1.50

27-2

0916008130
ref: 27-2
MODEL W

WASHER(8.5X24X1.6)

€ 1.50

28

1117148E00
ref: 28

CAP,CYL HEAD COVER,FL & RR

€ 71.00

29

1117248E00
ref: 29

CAP,CYLINDER HEAD COVER,F-R

€ 84.50

30

1127238A00
ref: 30

CUSHION,FR,R CAP

€ 10.00

31

0910306193
ref: 31

BOLT(6X40)

€ 3.00

32-1

0948200334
ref: 32-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

32-2

0948200335111
ref: 32-2

SPARK PLUG X24EPR-U9

€ 4.00

32-3

0948200354
ref: 32-3
OPT

PLUG,SPARK(DPR7EA-9)

€ 4.00

32-4

0948200355111
ref: 32-4
OPT

SPARK PLUG X22EPR-U9

€ 4.00

32-5

0948200330
ref: 32-5
OPT

PLUG,SPARK(DPR9EA-9)

€ 4.00

32-6

0948200331111
ref: 32-6
OPT

SPARK PLUG X27EPR-U9

€ 4.00

33

1117538A11
ref: 33

CAP,INSPECTION INTAKE

€ 13.50

34

1117638A11
ref: 34

CAP,INSPECTION EXHAUST

€ 14.00

35

1117738A00
ref: 35

GASKET,INSPECTION CAP (NAS)

€ 4.00

36-1

0154706207
ref: 36-1
MODEL V

BOLT

€ 1.50

36-2

0154706203
ref: 36-2
MODEL W

SCREW

€ 2.00

37-1

0142106168
ref: 37-1
MODEL V

STUD 6X16

€ 2.50

37-2

0142106163
ref: 37-2
MODEL W

STUD BOLT

€ 2.50

38

0831320067
ref: 38

NUT

€ 1.50

39

1118145C10
ref: 39

UNION,WATER OUTLET

€ 33.00

40

1118238A00
ref: 40

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

41

0932013015
ref: 41

CUSHION

€ 2.00

42

0924130004
ref: 42

PLUG(OD:30)

€ 5.00

43

0930108007
ref: 43

BUSH

€ 4.00

44-1

1311038E01
ref: 44-1

PIPE,INTAKE,FRONT

€ 79.00

44-2

1311045C01
ref: 44-2
E18

PIPE COMP,INTAKE,FRONT

€ 87.00

45

0928040003
ref: 45

O-RING (D:2.4 ID:39.7)

€ 3.00

46

0155006163
ref: 46

BOLT

€ 2.50

47

0940252501
ref: 47

CLAMP

€ 8.00

48

1117938A00
ref: 48

PLATE,HEAD COVER RR

€ 7.50

49-1

1140148840
ref: 49-1

GASKET SET (NAS)

€ 189.00

49-2

1140148850
ref: 49-2
E18

GASKET SET (NAS)

€ 172.50

alle samenstellingen
