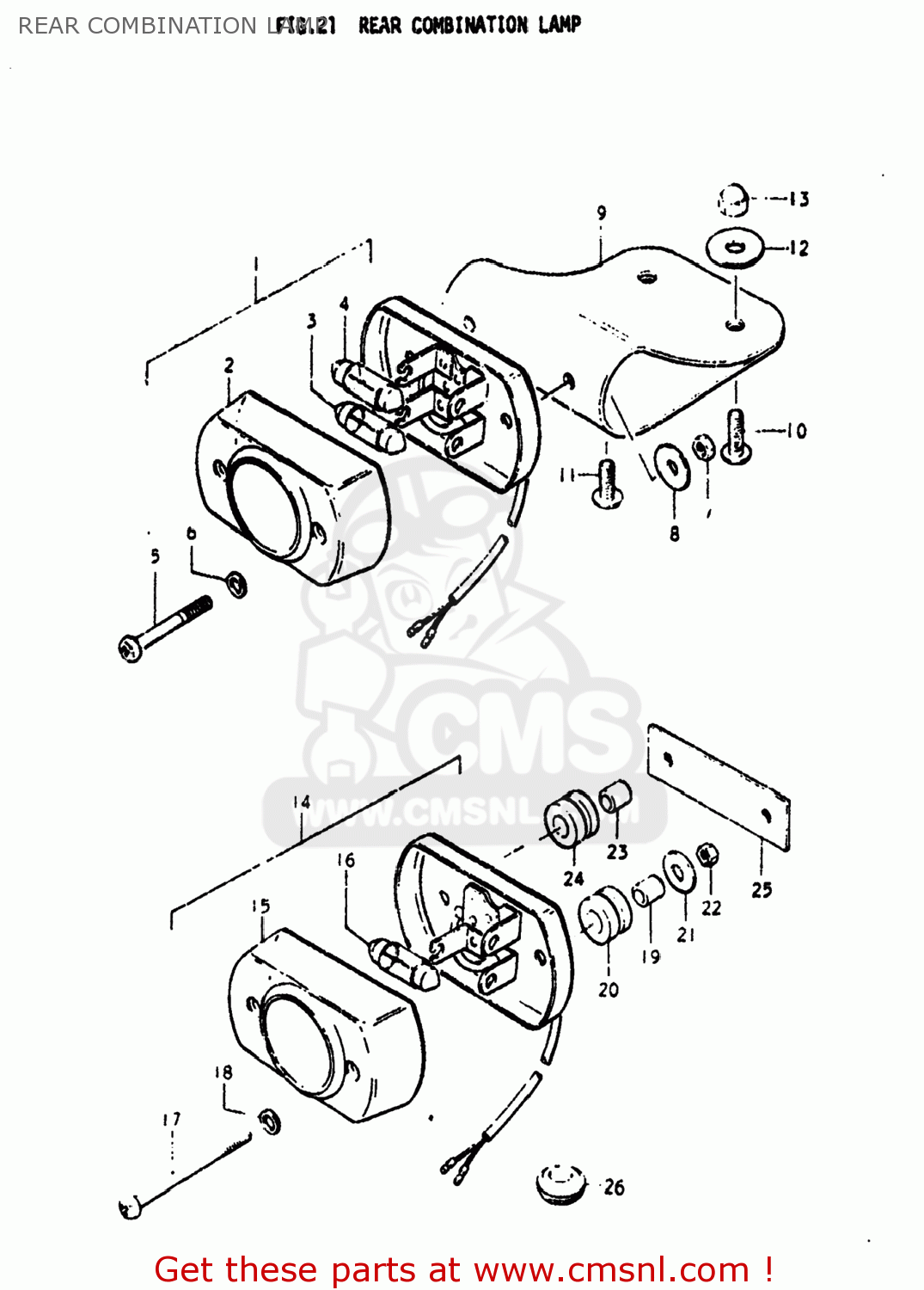

REAR COMBINATION LAMP

ref

onderdeelnr

omschrijving

hoeveelheid

1

3571041600
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 19.50

2

3571241410
ref: 2

LENS,REAR COMBINATION LAMP

€ 18.50

3

0947106012
ref: 3

BULB

€ 2.00

4

0947106007
ref: 4

BULB

€ 1.50

5

3572303621
ref: 5

SCREW,REAR COMBINATION LAMP LENS

€ 3.00

6

3572703010
ref: 6

WASHER,REAR COMBINATION LAMP

€ 1.50

7

0831011048
ref: 7
08310-00047

NUT

€ 1.50

8

0916005013
ref: 8

WASHER(5.2X16X1)

€ 1.00

9

3576441400
ref: 9
35764-41401

CUSHION,REAR COMBINATION LAMP

€ 6.50

10

0214106168
ref: 10

SCREW

€ 1.50

11

0214206127
ref: 11

SCREW 6X12

€ 1.50

12

0916006027
ref: 12
09160-06077

WASHER (6.5X20X1.2)

€ 1.50

13

0831311068
ref: 13
08313-10067

NUT

€ 1.50

14

3571041430
ref: 14

LAMP ASSEMBLY,TAIL

€ 24.50

15

3571241410
ref: 15

LENS,REAR COMBINATION LAMP

€ 18.50

16

0947106012
ref: 16

BULB

€ 2.00

17

3572341430
ref: 17

SCREW,REAR COMBINATION LAMP LENS

€ 3.00

18

3572703010
ref: 18

WASHER,REAR COMBINATION LAMP

€ 1.50

19

3578941400
ref: 19
09306-04002

BUSHING

€ 1.00

20

0932008001
ref: 20

CUSHION

€ 2.50

21

0916005013
ref: 21

WASHER(5.2X16X1)

€ 1.00

22

0831011048
ref: 22
08310-00047

NUT

€ 1.50

23

0930604002
ref: 23

BUSHING

€ 1.00

24

0932008001
ref: 24

CUSHION

€ 2.50

25

3579341400
ref: 25

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.50

26

0930808001
ref: 26

GROMMET

€ 2.00
