MAP CASE SET/COIN BOX SET (OPTIONAL)

GV1400GD 1987 (H) (E01)

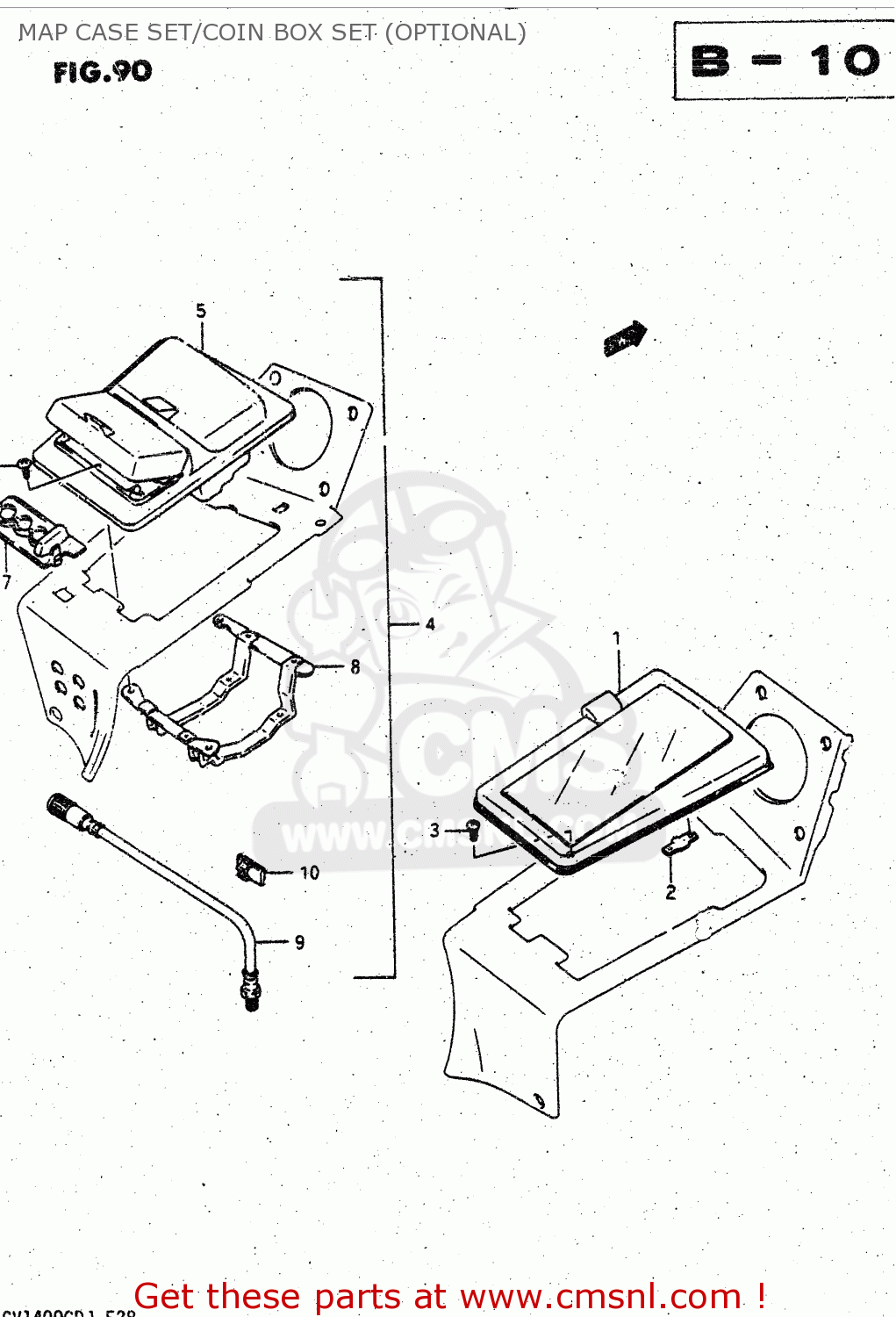

Map case set/coin box set (optional) technisch schema GV1400GD 1987 (H) (E01)

MAP CASE SET/COIN BOX SET (OPTIONAL) GV1400GD 1987 (H) (E01)
MAP CASE SET/COIN BOX SET (OPTIONAL) GV1400GD 1987 (H) (E01)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
9460024820
ref: 1
CASE SET,MAP
€ 346.00
2
9744824A00
ref: 2
PLATE,PANEL BOX BASE
€ 3.50
3
0212204165
ref: 3
SCREW
€ 2.00
4-1
9460024830
ref: 4-1
MODEL G/H
CASE SET,MAP
€ 342.00
4-2
9460024831
ref: 4-2
MODEL J
BOX SET,COIN
€ 342.00
5
9466024A00
ref: 5
BOX COMP,COWLING PANEL,LEFT
€ 209.00
6
0214205105
ref: 6
SCREW
0214205105
€ 1.50
7-1
9742024A00
ref: 7-1
MODEL G/H
CASE,COIN HOLDER
€ 77.00
7-2
9742024A01
ref: 7-2
MODEL J
CASE,COIN HOLDER
€ 77.00
8
9476024A00
ref: 8
BRACKET COMP,COWLING BOX
€ 30.50
9
6238024A20
ref: 9
HOSE,AIR VALVE
€ 0.00
10
0940800082
ref: 10
CLAMP
€ 5.00
