OIL PAN-OIL PUMP

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

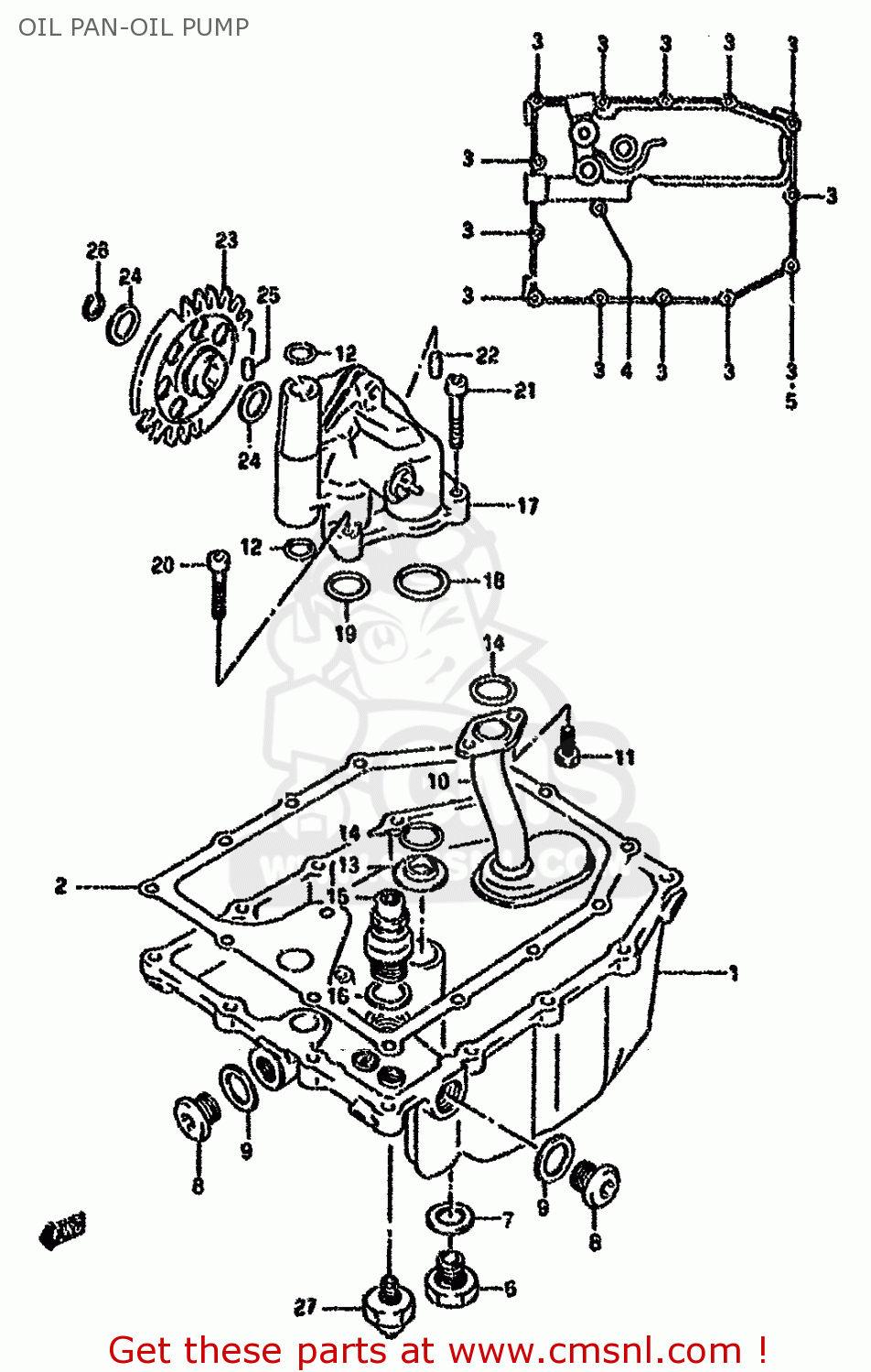

Oil pan-oil pump technisch schema GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

OIL PAN-OIL PUMP GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
OIL PAN-OIL PUMP GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
1151117E00
ref: 1
PAN,OIL
1151117E00
€ 254.00
2-1
1148917E00
ref: 2-1
MODEL N/P/R
GASKET,OIL PAN
€ 17.50
2-2
1148917E01
ref: 2-2
MODEL S
GASKET,OIL PAN (NAS)
1148917E01
€ 17.50
3-1
0154706257
ref: 3-1
MODEL N/P
BOLT
0154706257
€ 1.50
3-2
0154706253
ref: 3-2
MODEL R/S
SCREW
0154706253
€ 2.00
4-1
0154706307
ref: 4-1
MODEL N/P
BOLT
0154706307
€ 2.00
4-2
0154706303
ref: 4-2
MODEL R/S
BOLT,G/S SWITC
0154706303
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 1.50
6
0924714001
ref: 6
PLUG
0924714001
€ 4.00
7
0916814004
ref: 7
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.00
8
0924816010
ref: 8
PLUG
0924816010
€ 3.50
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
0916816002
€ 1.50
10
1652017E00
ref: 10
STRAINER COMP,ENGINE OIL
€ 44.00
11
0912806039
ref: 11
SCREW
€ 2.00
12
0928012012
ref: 12
O RING(D:2.4,ID:11.8)
0928012012
€ 4.00
13
1652927A01
ref: 13
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
14
0928018009
ref: 14
O RING(D:3.2,ID:17.8)
0928018009
€ 6.50
15
1644017C00
ref: 15
VALVE ASSEMBLY,OIL RELIEF
€ 66.00
16
0916816002
ref: 16
GASKET(16X22X2) (NAS)
0916816002
€ 1.50
17
1640017E00
ref: 17
PUMP ASSY,ENGINE OIL
€ 264.00
18
0928026005
ref: 18
O RING(D:2.4,ID:26.2)
0928026005
€ 2.00
19
0928018009
ref: 19
O RING(D:3.2,ID:17.8)
0928018009
€ 6.50
20-1
0711006307
ref: 20-1
MODEL N/P
BOLT
0711006307
€ 3.00
20-2
0713006303
ref: 20-2
MODEL R/S
BOLT
0713006303
€ 3.00
21-1
0711006357
ref: 21-1
MODEL N/P
BOLT
€ 3.00
21-2
0713006353
ref: 21-2
MODEL R/S
BOLT
€ 3.00
22
0421109129
ref: 22
PIN
0421109129
€ 1.50
23
1633219C00
ref: 23
GEAR,OIL PUMP DRIVEN(NT:37)
1633219C00
€ 56.00
24
0822112205
ref: 24
SHIM
0822112205
€ 1.50
25
0926105006
ref: 25
PIN(5X18)
0926105006
€ 1.50
26
0833131126
ref: 26
CIRCLIP,12 MM
0833131126
€ 1.50
27
3782033D00
ref: 27
SWITCH ASSEMBLY,OIL PRESSURE
€ 28.00
