FRONT DAMPER (MODEL W)

GSXR600 2000 (Y)

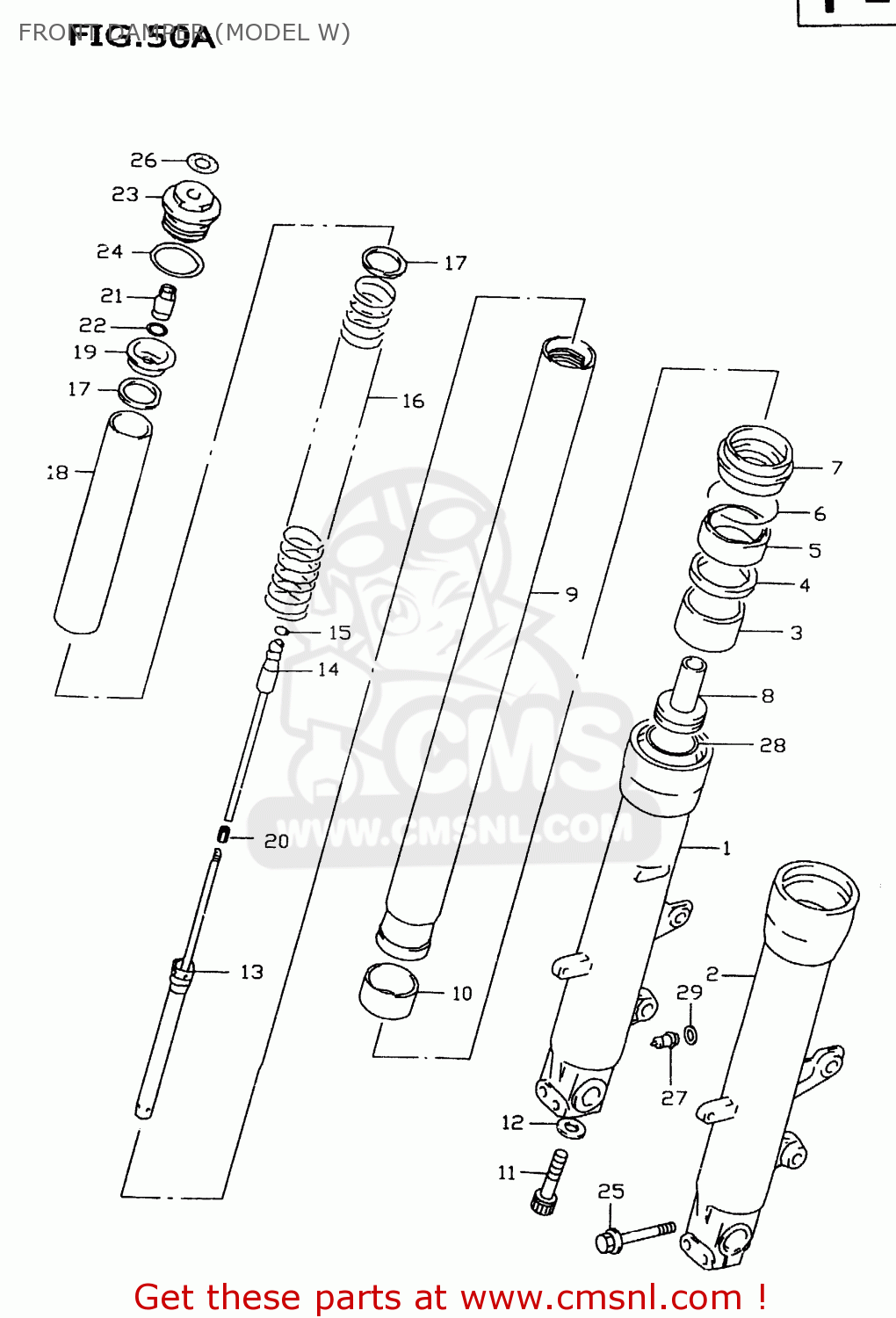

Front damper (model w) technisch schema GSXR600 2000 (Y)

FRONT DAMPER (MODEL W) GSXR600 2000 (Y)
FRONT DAMPER (MODEL W) GSXR600 2000 (Y)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
0
5110334E20
ref: 0
DAMPER ASSY,FR FORK,R
€ 1,208.50
0
5110434E20
ref: 0
DAMPER ASSY,FR FORK,L
€ 1,208.50
1
5113034E20
ref: 1
TUBE,OUTER,R
€ 491.50
2
5114034E20
ref: 2
TUBE,OUTER,L
€ 479.50
3
5115234E00
ref: 3
BUSH,GUIDE
5115234E00
€ 20.50
4
5115827C40
ref: 4
SPACER,SEAL
5115827C40
€ 5.50
5
5115334E00
ref: 5
SEAL,OIL
5115334E00
€ 14.50
6
5115627C40
ref: 6
RING,OIL SEAL STOPPER
5115627C40
€ 3.50
7
5117328E40
ref: 7
SEAL,DUST
5117328E40
€ 21.00
8
5119534E20
ref: 8
PIECE,OIL LOCK
5119534E20
€ 41.50
9
5111034E20
ref: 9
TUBE,INNER
5111034E20
€ 497.00
10
5112134E00
ref: 10
BUSH,SLIDE
5112134E00
€ 22.50
11
5114717C00
ref: 11
BOLT
5114717C00
€ 19.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 1.50
13
5211034E20
ref: 13
ROD,FRONT DAMPER
€ 367.00
14
5211134E00
ref: 14
ROD,ADJUST
€ 24.50
15
0928003002
ref: 15
O RING(D:1.9,ID:3.8)
0928003002
€ 2.00
16
5117134E20
ref: 16
SPRING,FR
€ 62.00
17
5117229EA0
ref: 17
JOINT,SPRING
5117229EA0
€ 6.50
18
5117634E00
ref: 18
COLLAR,SPRING
5117634E00
€ 10.50
19
5117217C00
ref: 19
SEAT,SPRING UPR
5117217C00
€ 11.00
20
5182727E00
ref: 20
NUT
€ 6.50
21
5118534E00
ref: 21
ADJUSTER,SPRING
€ 49.00
22
0928014011
ref: 22
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
23
5118934E00
ref: 23
BOLT,FORK
€ 62.00
24
5111729EA0
ref: 24
O RING
5111729EA0
€ 5.00
25
0155008457
ref: 25
BOLT
0155008457
€ 3.00
26
5114934E00
ref: 26
LABEL
5114934E00
€ 3.50
27
5183033E00
ref: 27
PIECE,ADJUST
€ 69.00
28
5111734E20
ref: 28
O RING
€ 3.50
29
5116942E00
ref: 29
LABEL,ADJUST PIECE LWR
€ 3.00
