FOOTREST

GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

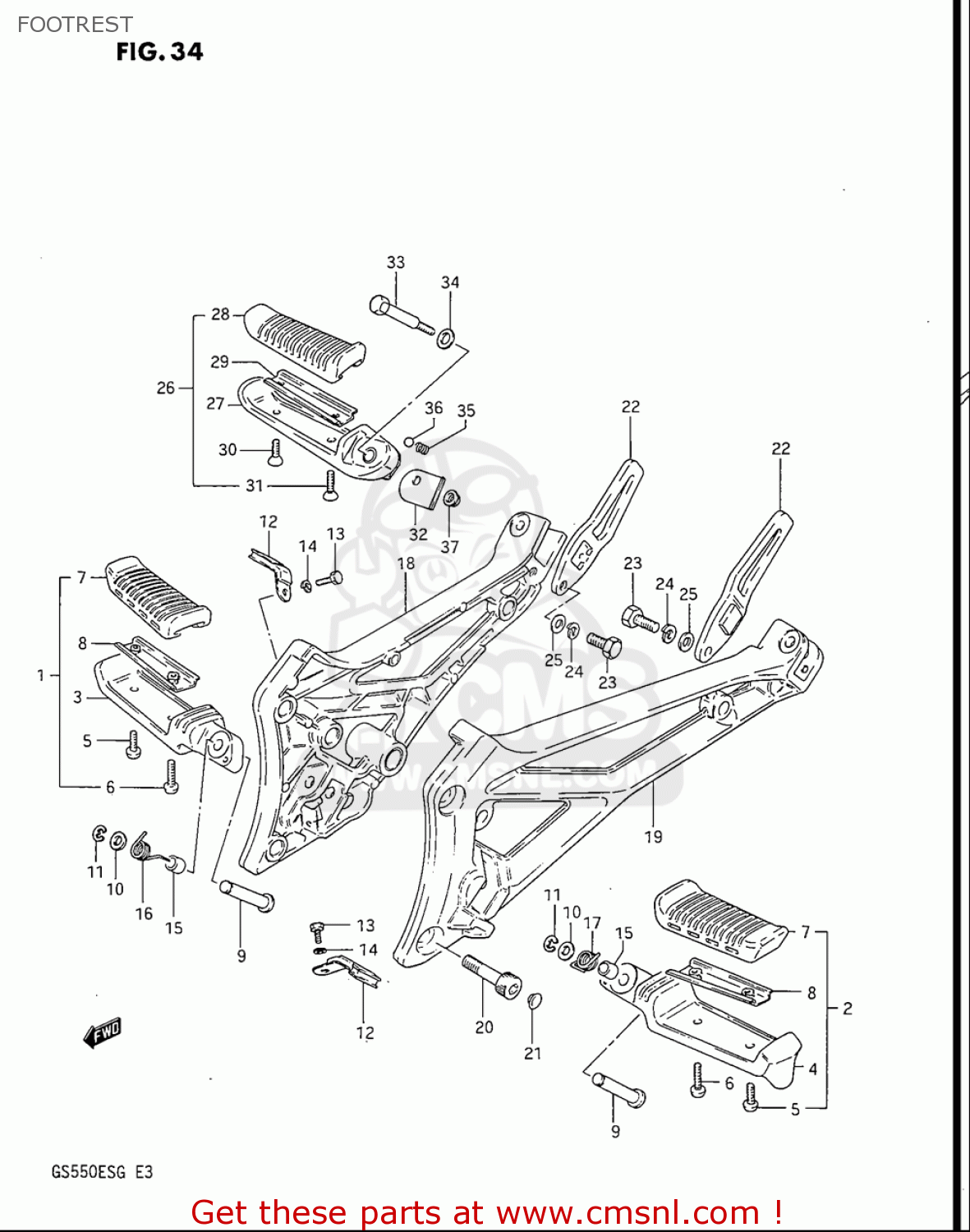

Footrest technisch schema GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)

FOOTREST GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
FOOTREST GS550ES GS550ESE GS550EF GS550ESF GS550ESG 83-86 (D-G) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
4351048B51
ref: 1
BAR,FR FOOTREST,R
4351048B51
€ 69.00
2
4350243401
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
€ 26.00
4
4352043401
ref: 4
FOOTREST,FRONT,LEFT
€ 26.00
5
0211205127
ref: 5
SCREW
0211205127
€ 1.50
6
0211205167
ref: 6
SCREW
0211205167
€ 1.50
7
4355031300
ref: 7
RUBBER,FOOTREST
4355031300
€ 22.50
8
4358033301
ref: 8
PLATE,FR FOOTREST RUBBER
4358033301
€ 4.50
9
0920808005
ref: 9
PIN
0920808005
€ 3.50
10
0918108139
ref: 10
SHIM(8.8X14X1)
0918108139
€ 1.50
11
083321106A
ref: 11
E RING
083321106A
€ 1.50
12
4357043400
ref: 12
CUSHION,FR FOOTREST
4357043400
€ 8.50
13
0150005103
ref: 13
BOLT
0150005103
€ 1.50
14
0832101057
ref: 14
WASHER,LOCK
0832101057
€ 2.00
15
0930608013
ref: 15
BUSHING
0930608013
€ 3.50
16
0944814030
ref: 16
SPRING
0944814030
€ 3.50
17
0944814031
ref: 17
SPRING
0944814031
€ 3.00
20
0910610017
ref: 20
BOLT 10X27
0910610017
€ 2.50
21
4357534500
ref: 21
CAP
4357534500
€ 2.00
23
0150008163
ref: 23
BOLT
0150008163
€ 2.00
24
0832101087
ref: 24
WASHER,LOCK
0832101087
€ 1.50
25
0832201087
ref: 25
WASHER
0832201087
€ 1.50
26-1
4360031300
ref: 26-1
FOOTREST ASSY,PILLION,R
4360031300
€ 39.50
28
4361231300
ref: 28
RUBBER,RR FOOTREST
4361231300
€ 11.00
29
4363245501
ref: 29
PLATE,RUBBER STOPPER
4363245501
€ 3.00
30
0212205127
ref: 30
SCREW
0212205127
€ 2.50
31
0212205167
ref: 31
SCREW
0212205167
€ 1.50
32-1
4363543400
ref: 32-1
PLATE,SPRING STOP,R
4363543400
€ 2.50
32-2
4373543400
ref: 32-2
PLATE,SPRING STOP,LEFT
4373543400
€ 4.50
33
0911106035
ref: 33
BOLT
0911106035
€ 4.50
34
0832201087
ref: 34
WASHER
0832201087
€ 1.50
35
0944005028
ref: 35
SPRING
0944005028
€ 2.50
36
0611108003
ref: 36
BALL
0611108003
€ 1.00
37
0831931067
ref: 37
NUT
0831931067
€ 1.50
