CYLINDER HEAD

DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

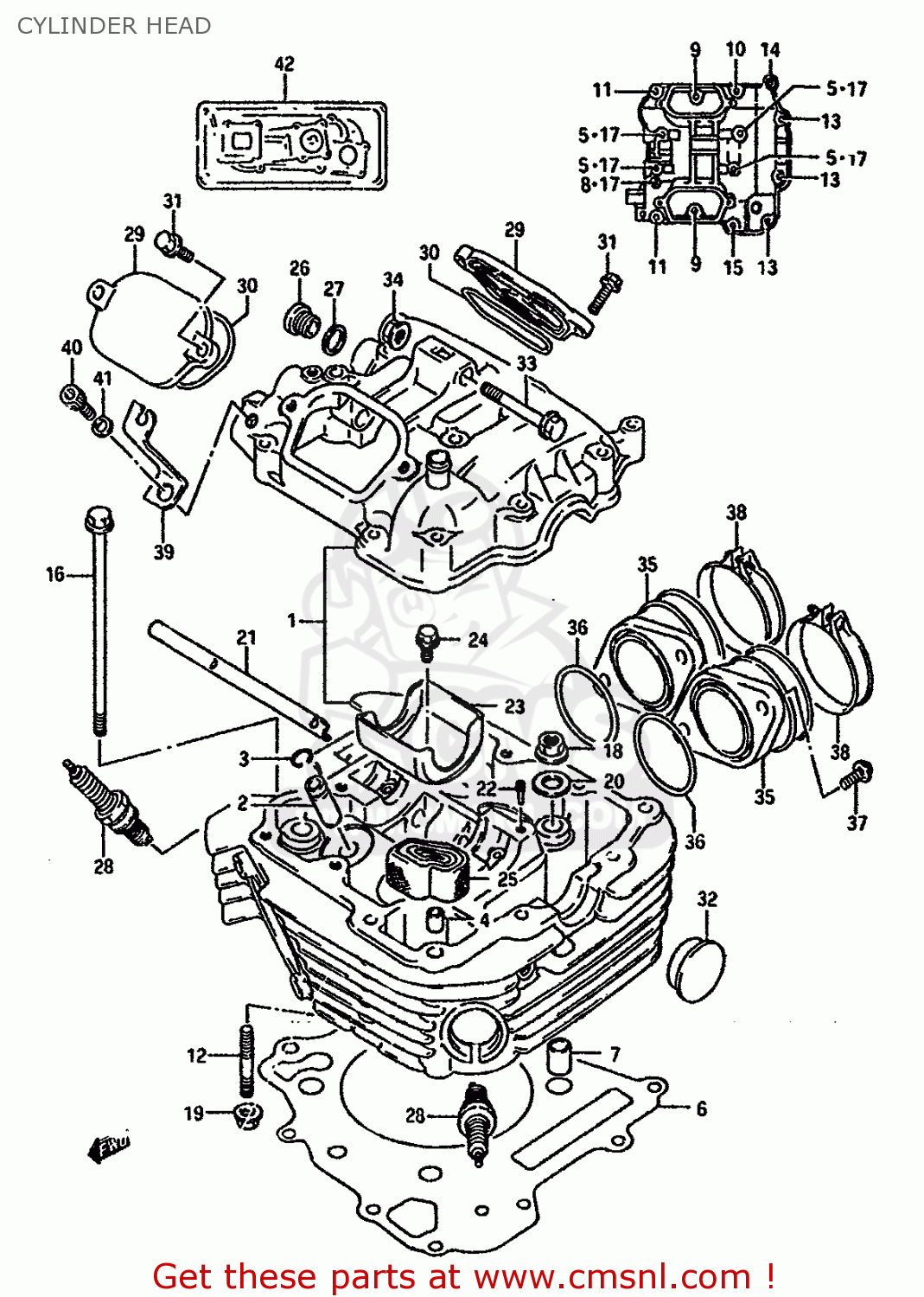

Cylinder head technisch schema DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)

CYLINDER HEAD DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
CYLINDER HEAD DR750S 1988 (J) (E04 E18 E22 E34 E75 E77)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1-1
1110044B0034U
ref: 1-1
MODEL J
HEAD ASSY,CYLINDER (BLUE)
€ 947.50
1-2
1110044B0036T
ref: 1-2
MODEL J
HEAD ASSY,CYLINDER (ORANGE)
1110044B0036T
€ 947.50
1-3
1110044B0021R
ref: 1-3
MODEL K
HEAD ASSY,CYLINDER (SILVER)
€ 947.50
2
1111544B70
ref: 2
GUIDE,VALVE
1111544B70
€ 20.50
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 1.50
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.00
6
1114144B01
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114144B01
€ 51.00
7
0920613001
ref: 7
PIN
0920613001
€ 2.00
8
0151706167
ref: 8
BOLT 6X16
0151706167
€ 2.00
9
0151706258
ref: 9
BOLT
0151706258
€ 1.50
10
0151706307
ref: 10
BOLT
0151706307
€ 2.00
11
0151706358
ref: 11
BOLT 6X35
0151706358
€ 3.00
12
0910808206
ref: 12
BOLT,STUD(8X31)
0910808206
€ 3.50
13
0910306033
ref: 13
BOLT(6X125)
0910306033
€ 3.00
14
0910306052
ref: 14
BOLT(6X115)
0910306052
€ 5.00
15
0910306067
ref: 15
BOLT(6X105)
0910306067
€ 3.50
16
0910308224
ref: 16
BOLT(8X155)
0910308224
€ 10.00
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 1.50
18
0831616108
ref: 18
NUT
0831616108
€ 2.00
19
0831616085
ref: 19
NUT 8MM
0831616085
€ 2.50
20
0916010039
ref: 20
WASHER(10.5X22X2.3)
0916010039
€ 2.00
21
1113144B01
ref: 21
PIPE,OIL
€ 12.00
22
0913406012
ref: 22
SCREW (L:19.5)
0913406012
€ 3.00
23
1113544B00
ref: 23
PLATE, OIL CHAMBER
€ 8.00
24
0151706108
ref: 24
BOLT
0151706108
€ 1.50
25
1118644B00
ref: 25
SEPARATOR,OIL
€ 8.00
26
0924814005
ref: 26
PLUG,14X12
0924814005
€ 5.00
27
0916814004
ref: 27
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.00
28-1
0948200330
ref: 28-1
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
28-2
0948200334
ref: 28-2
OPT
PLUG,SPARK(DPR8EA-9)
€ 4.00
28-3
0948200328
ref: 28-3
MODEL J E34
SPARK PLUG DP9EA-9
0948200328
€ 4.00
28-4
0948200332
ref: 28-4
MODEL J E34 OPT
SPARK PLUG DP8EA-9
€ 4.00
29
1117544B00
ref: 29
CAP,INSPECTION
1117544B00
€ 14.00
30
1117744B00
ref: 30
O-RING,INSPECTION CAP
1117744B00
€ 5.00
31
0151706207
ref: 31
BOLT 6X20
€ 2.00
32
0924130004
ref: 32
PLUG(OD:30)
0924130004
€ 5.00
33
0910308082
ref: 33
BOLT 8X50
€ 7.00
34
0831931085
ref: 34
NUT
€ 2.00
35
1311044B00
ref: 35
PIPECOMP,INT
€ 34.50
36
0928040010
ref: 36
O RING(D:2.4,ID:39.7)
0928040010
€ 3.00
37
0215206205
ref: 37
SCREW
€ 2.00
38
0940252208
ref: 38
FROM 09402-52207
CLAMP
0940252208
€ 4.50
39
1294444B00
ref: 39
HOLDER,DECOMP CABLE
€ 0.00
40
0711008165
ref: 40
BOLT
€ 3.00
41
0832221085
ref: 41
WASHER
€ 1.50
42-1
1140144830
ref: 42-1
OPT
GASKET SET
€ 129.50
42-2
1140144830H17
ref: 42-2
E17,E77 (SWEDEN) OPT
GASKET SET (NA)
€ 129.50
