TAIL LAMP

DL650 VSTROM 2004 (K4) USA (E03)

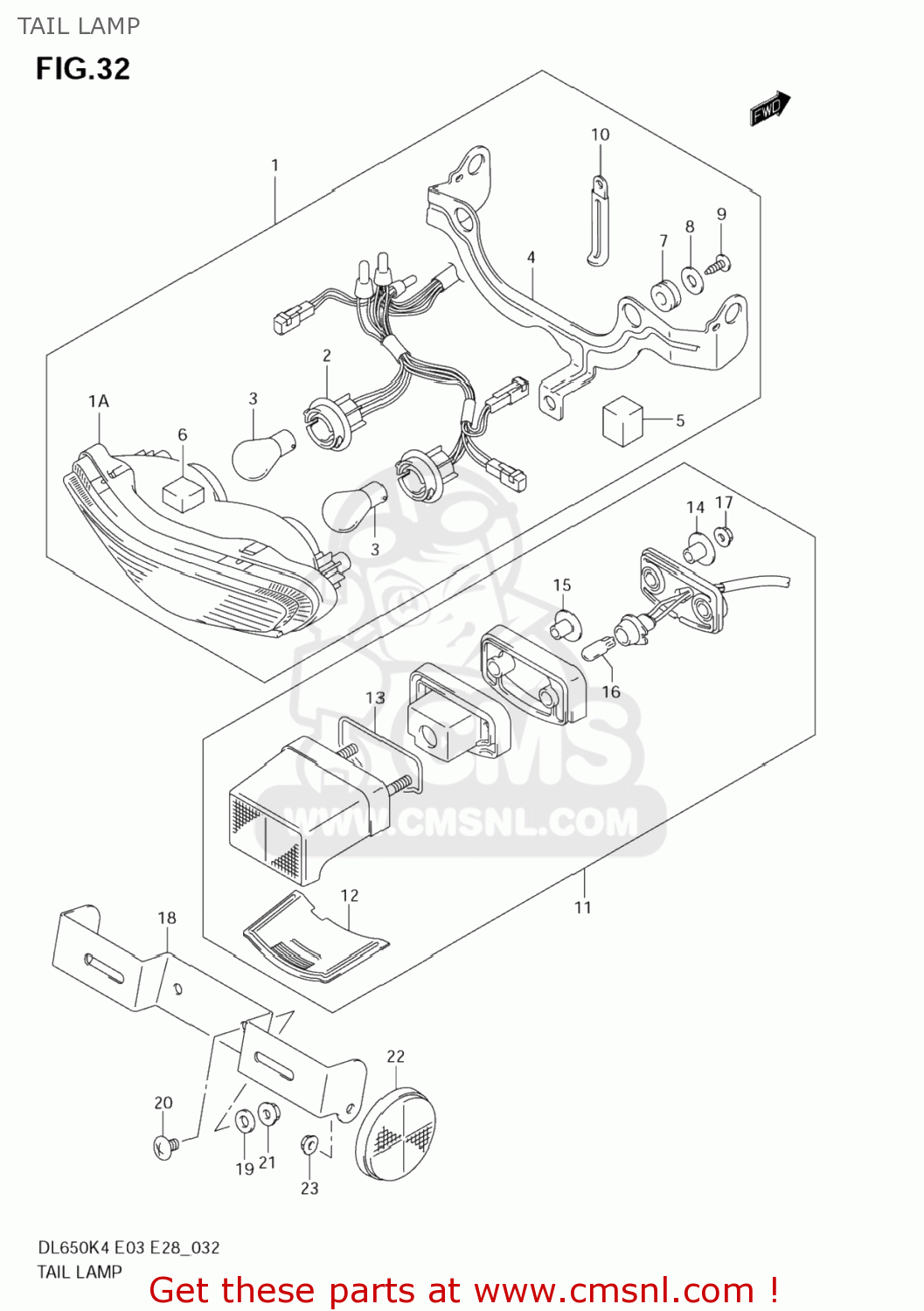

Tail lamp technisch schema DL650 VSTROM 2004 (K4) USA (E03)

TAIL LAMP DL650 VSTROM 2004 (K4) USA (E03)
TAIL LAMP DL650 VSTROM 2004 (K4) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
3571027G30
ref: 1
LAMP ASSY,RR COMBINATION
€ 145.00
1A
3572006G30
ref: 1A
UNIT
€ 58.50
2
3571827G00
ref: 2
SOCKET & CORD
3571827G00
€ 67.50
3
0947112083
ref: 3
09471-12128
BULB(12V21/5W)
0947112083
€ 5.50
4
3572627G00
ref: 4
BRACKET
€ 94.00
5
3573927G00
ref: 5
CUSHION
€ 15.50
6
3573427G00
ref: 6
CUSHION
€ 4.50
7
0932010049
ref: 7
CUSHION
0932010049
€ 2.00
8
0916005501
ref: 8
WASHER(5.5X20X1.2)
0916005501
€ 2.00
9
0324205163
ref: 9
03241-0516A
SCREW
0324205163
€ 1.00
10
0940406432
ref: 10
CLAMP(L:65)
0940406432
€ 2.00
11
3591027G30
ref: 11
LAMP ASSY,LICENSE
€ 0.00
12
3591208F00
ref: 12
LENS
3591208F00
€ 9.00
13
3591308F00
ref: 13
GASKET (NAS)
€ 112.50
14
3576627G30
ref: 14
SPACER
€ 4.50
15
3576608F00
ref: 15
SPACER
€ 5.50
16
0947112216
ref: 16
BULB(12V5W)
0947112216
€ 4.00
17
0831610063
ref: 17
08316-1006B
NUT
0831610063
€ 2.00
18
3592706G00
ref: 18
BRACKET,LICENSE PLATE
€ 0.00
19
0916006128
ref: 19
WASHER(6.5X15X1.6)
0916006128
€ 2.50
20
0214206123
ref: 20
02142-0612A
SCREW 6X12
0214206123
€ 1.50
21
0831610063
ref: 21
08316-1006B
NUT
0831610063
€ 2.00
22
3597014A20
ref: 22
REFLECTOR ASSY,RR SIDE
3597014A20
€ 11.00
23
0831610053
ref: 23
08316-1005A
NUT
0831610053
€ 2.00
