CRANKCASE

LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400

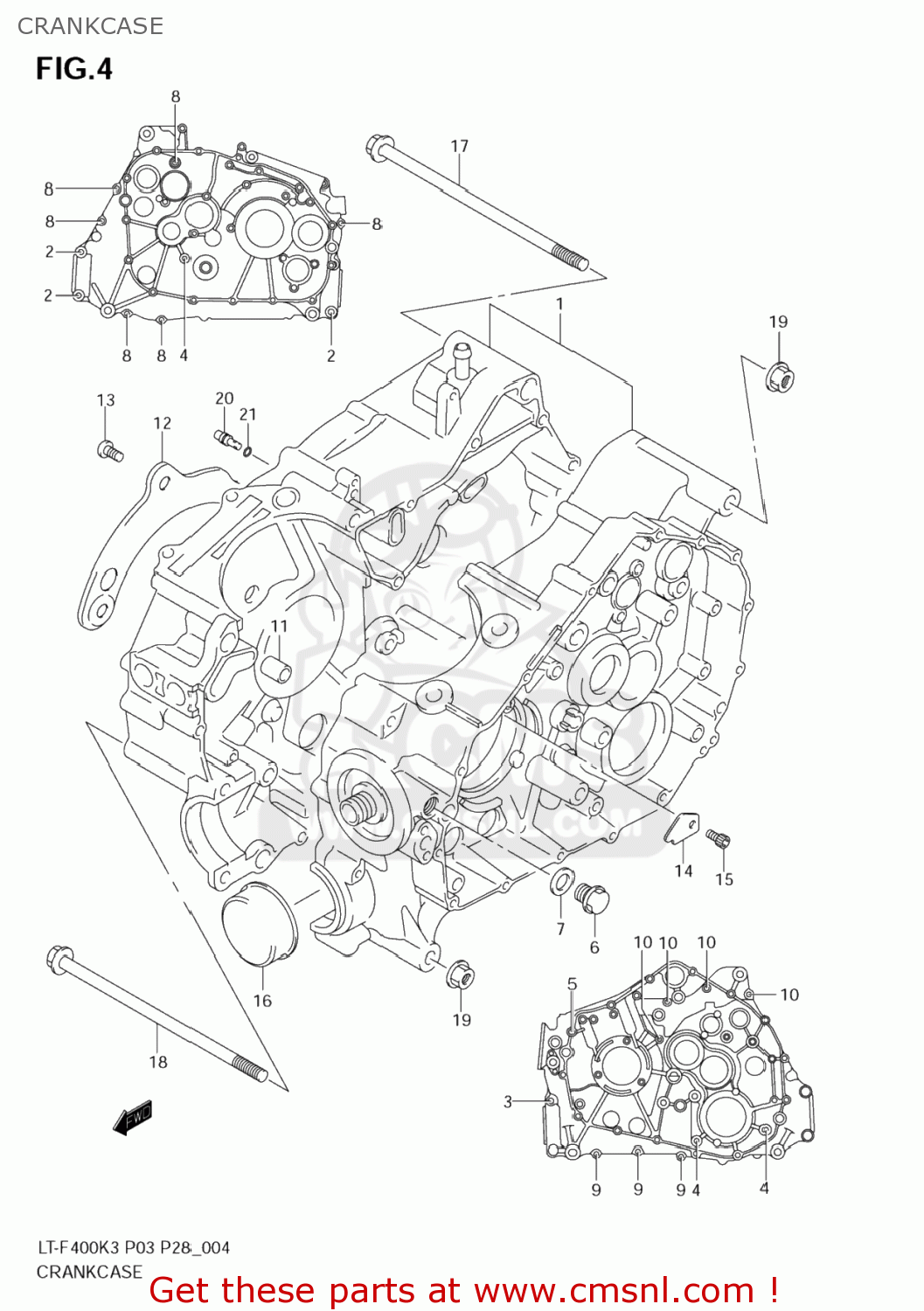

Crankcase technisch schema LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400

CRANKCASE LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400
CRANKCASE LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
1130238851
ref: 1
11302-38852
CRANKCASE SET
€ 869.50
2
0910308081
ref: 2
BOLT(8X50)
0910308081
€ 3.50
3
0910308081
ref: 3
BOLT(8X50)
0910308081
€ 3.50
4
0910308300
ref: 4
BOLT(8X85)
€ 3.00
5
0910308345
ref: 5
09103-08217
BOLT 8X60
€ 3.00
6
0924714015
ref: 6
PLUG(14X12)
0924714015
€ 2.50
7
0916814002
ref: 7
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.00
8
0154706453
ref: 8
01547-0645B
BOLT
0154706453
€ 2.00
9
0154706453
ref: 9
01547-0645B
BOLT
0154706453
€ 2.00
10
0154706703
ref: 10
01547-0670B
BOLT
€ 2.50
11
0421113189
ref: 11
PIN
0421113189
€ 2.00
12
1131738F10
ref: 12
PLATE,OIL GUIDE
€ 3.00
13
0211206123
ref: 13
02112-0612A
SCREW
0211206123
€ 1.50
14
1132338F00
ref: 14
PLATE,OIL GUIDE,L
€ 2.00
15
0211206123
ref: 15
02112-0612A
SCREW
0211206123
€ 1.50
16
1133144D00
ref: 16
PLUG,CRANKCASE
€ 15.50
17
0910310118
ref: 17
BOLT(10X195)
0910310118
€ 7.00
18
0910310053
ref: 18
BOLT(10X180)
0910310053
€ 7.00
19
0915910058
ref: 19
09159-10115
NUT
0915910058
€ 3.00
20
0949332006
ref: 20
JET,OIL GALLERY(16)
€ 8.50
21
0928004004
ref: 21
O RING(D:1.2,ID:4)
0928004004
€ 1.50
21
0928004004
ref: 21
O RING(D:1.2,ID:4)
0928004004
€ 1.50
