WATER PUMP

LT-A500XP KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

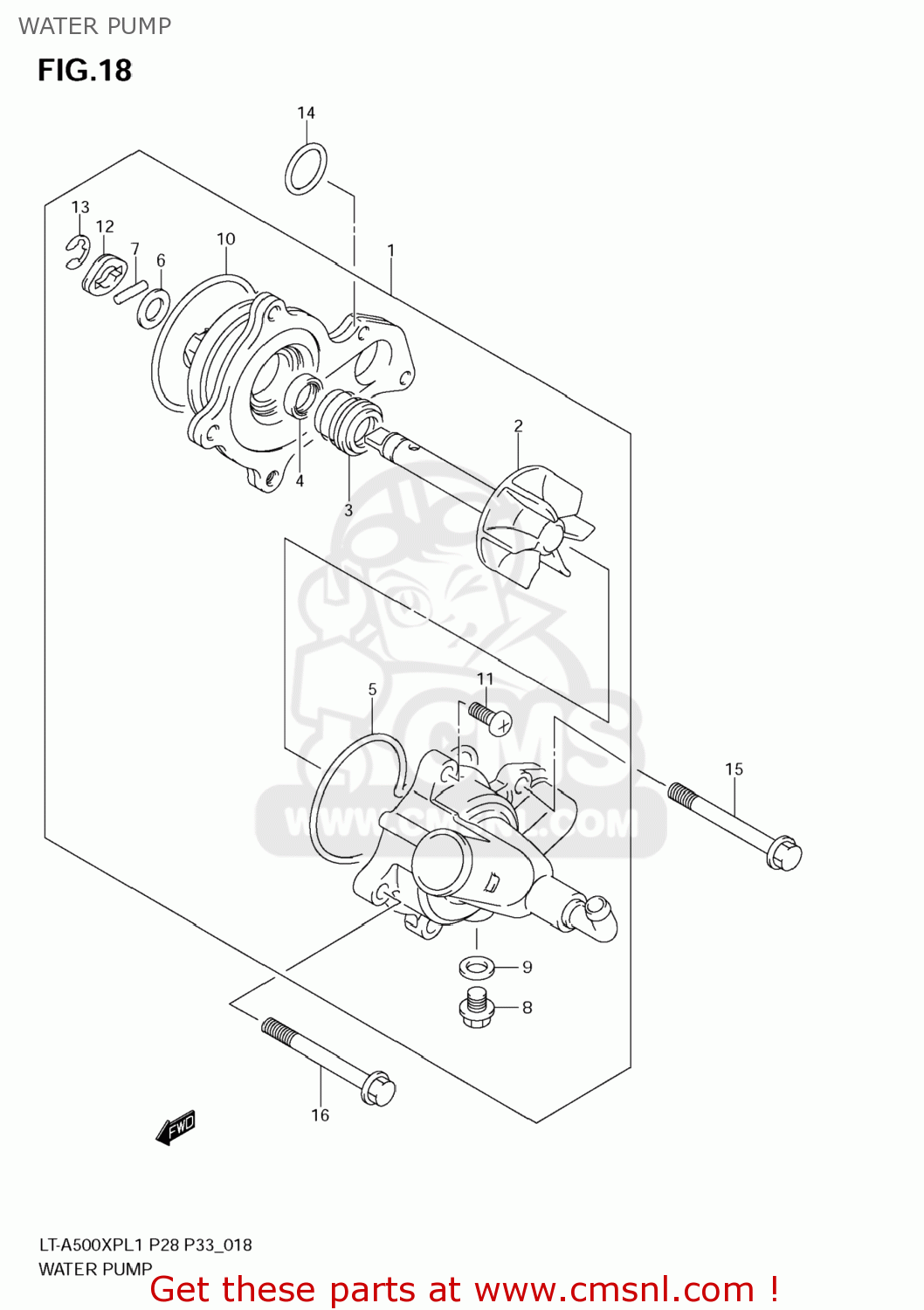

Water pump technisch schema LT-A500XP KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD

WATER PUMP LT-A500XP KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD
WATER PUMP LT-A500XP KING QUAD 2011 (L1) USA (E03) KINGQUAD KING-QUAD
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
1740011H10
ref: 1
PUMP ASSY,WATER
€ 167.50
2
1749111H00
ref: 2
IMPELLER
€ 33.00
3
1747002F01
ref: 3
SEAL,MECHANICAL
1747002F01
€ 18.00
4
1746148G00
ref: 4
SEAL,OIL
1746148G00
€ 10.00
5
1741811H00
ref: 5
O RING
1741811H00
€ 12.00
6
1743207G00
ref: 6
WASHER
1743207G00
€ 1.50
7
1748203G00
ref: 7
PIN
€ 1.50
8
1741520920
ref: 8
BOLT,DRAIN
1741520920
€ 5.00
9
0916808016
ref: 9
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
1743533400
€ 10.50
11
021120616A
ref: 11
SCREW
021120616A
€ 1.50
12
1743211H00
ref: 12
CAP
€ 8.00
13
083321108A
ref: 13
E RING
083321108A
€ 1.50
14
0928022001
ref: 14
O RING(D:2.4,ID:21.8)
0928022001
€ 1.50
15
015470630A
ref: 15
BOLT
015470630A
€ 2.00
16
015470645A
ref: 16
BOLT
015470645A
€ 2.00
