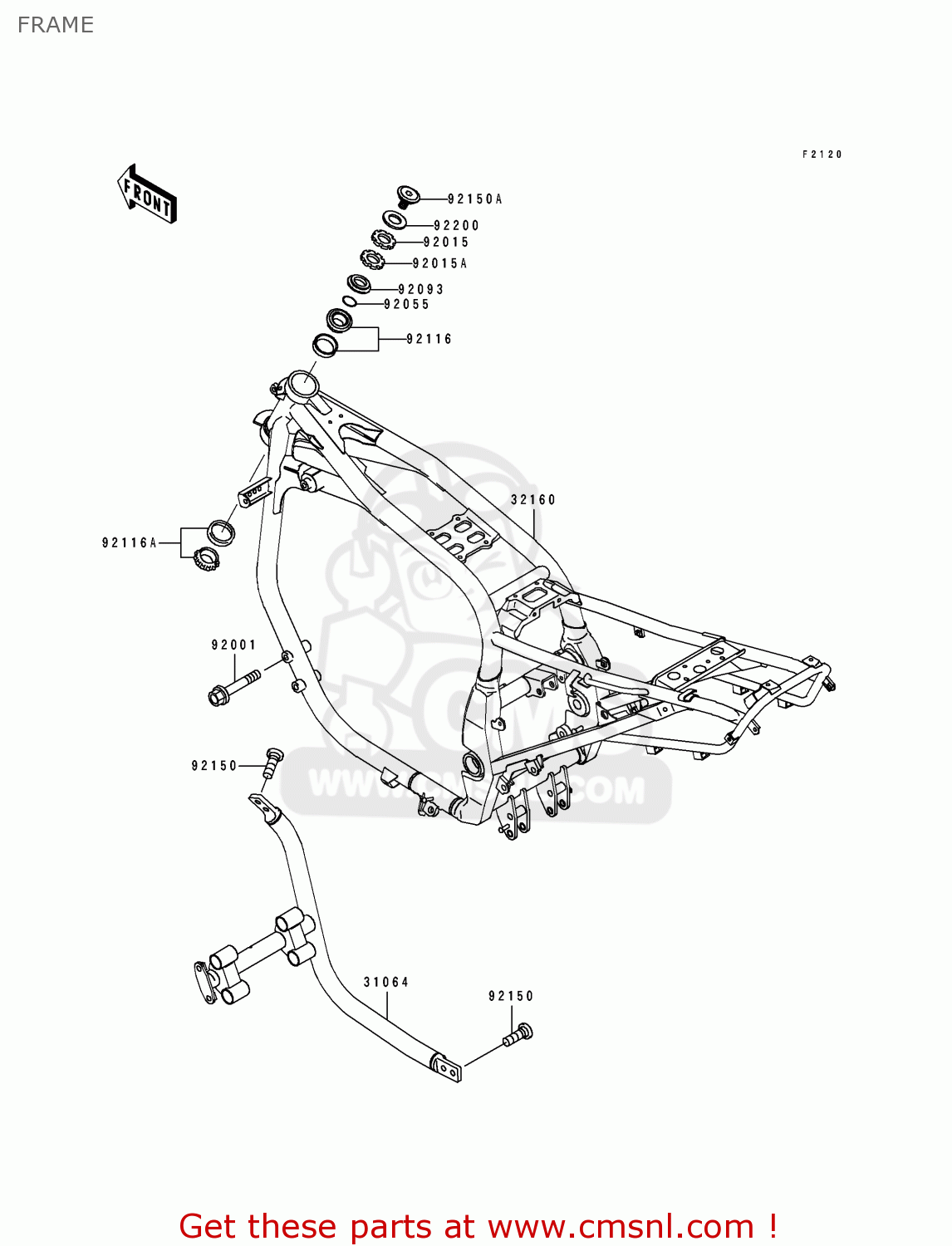

FRAME

ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA

Frame technisch schema ZX1100E1 GPZ1100 1995 USA CALIFORNIA CANADA

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

31064

310641169
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 308.00

32160

321601385
ref: 32160

FRAME-COMP

€ 2,121.50

92001

920014021
ref: 92001

BOLT,10X75

€ 5.50

92015

920151417
ref: 92015

NUT,28MM,T=6

€ 7.00

92015A

920151976
ref: 92015A

NUT,STEERING STEM,28M

€ 21.50

92055

920551470
ref: 92055

RING-O,27.5X2

€ 2.50

92093

920931383
ref: 92093

SEAL,MN036N1-A

€ 6.00

92116

921161067
ref: 92116

BEARING-ROLLER,HR320/

€ 71.50

92116A

921161069
ref: 92116A

BEARING-ROLLER

€ 65.00

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92150A

921501883
ref: 92150A

BOLT,STEERING,16X24

€ 25.00

92200

922001273
ref: 92200

WASHER,16X41X4.5

€ 7.00
