SWINGARM

VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

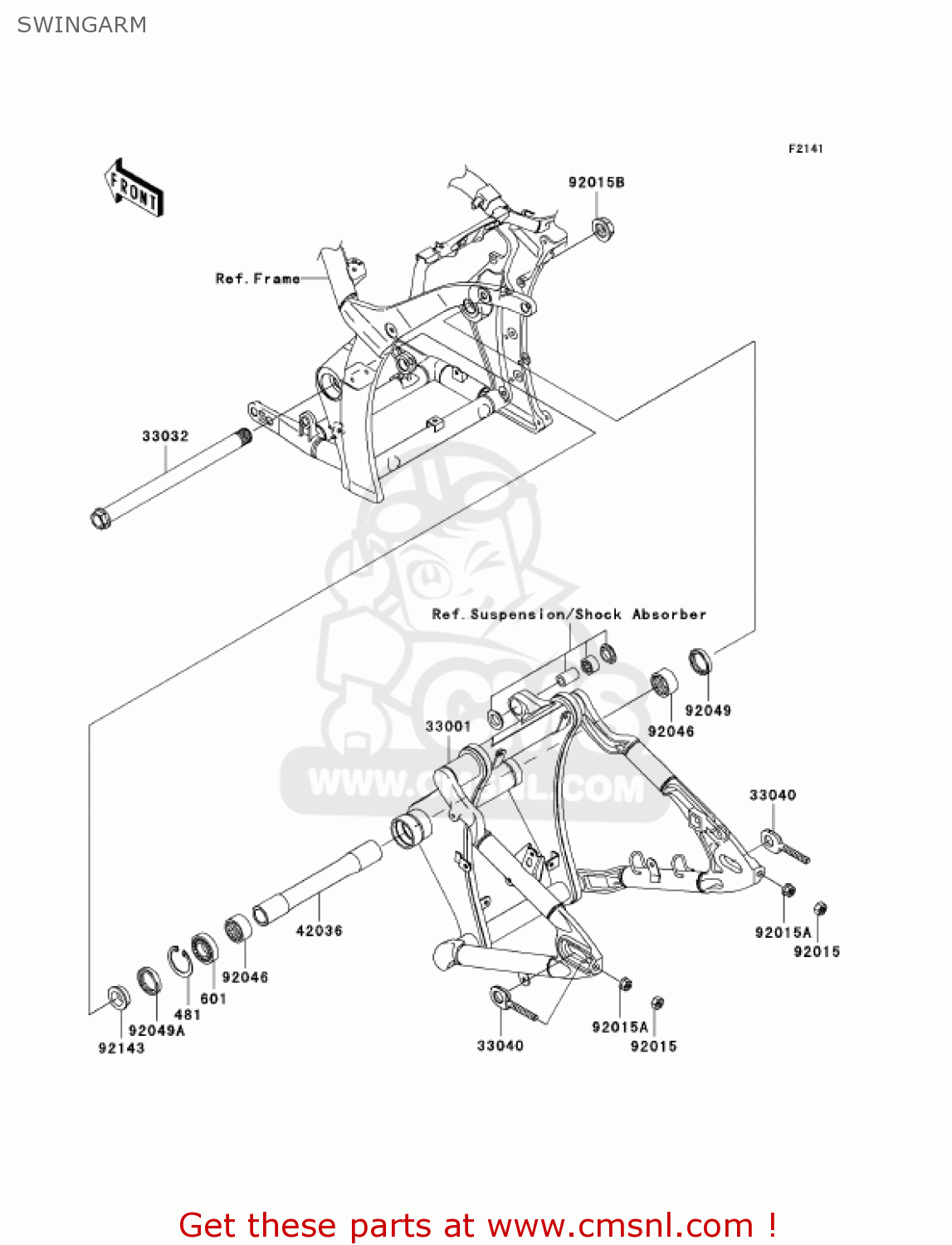

Swingarm technisch schema VN2000D6F VULCAN 2000 LIMITED 2006 USA CALIFORNIA CANADA

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

481

481J4700
ref: 481

CIRCLIP,47MM

€ 3.50

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 24.50

33001

330010078458
ref: 33001

ARM-COMP-SWING,P.SILV

€ 476.00

33032

330320004
ref: 33032

SHAFT-SWING ARM

€ 67.50

33040

330400005
ref: 33040

ADJUSTER-CHAIN

€ 28.50

42036

420360007
ref: 42036

SLEEVE,SWING ARM,L=26

€ 75.50

92015

920151494
ref: 92015

NUT,LOCK,10MM

€ 4.00

92015A

920151727
ref: 92015A

NUT

€ 2.50

92015B

920151845
ref: 92015B

NUT,FLANGED,25MM

€ 16.00

92046

920461205
ref: 92046

BEARING-NEEDLE,BM3520

€ 27.00

92049

920490017
ref: 92049

SEAL-OIL,KC35X45X6

€ 10.00

92049A

920491381
ref: 92049A

SEAL-OIL,MHA 35 47 5

€ 8.00

92143

921431481
ref: 92143

COLLAR,SWING ARM,L=12

€ 19.00
