FRAME

VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

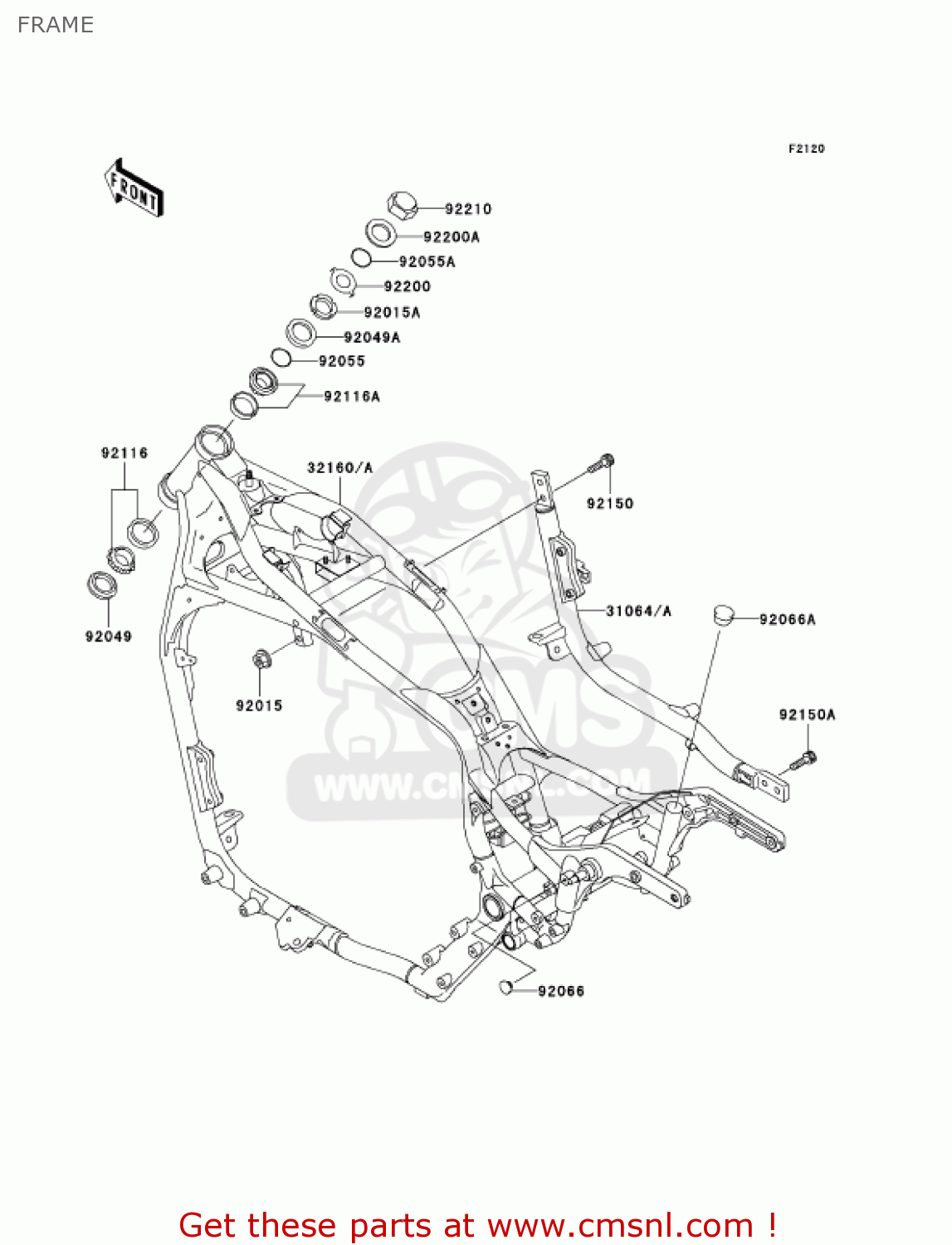

Frame technisch schema VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

31064A

310641237
ref: 31064A

PIPE-COMP,DOWNTUBE,LH

€ 450.50

32160A

321601679
ref: 32160A

FRAME-COMP

€ 1,847.50

92015

920151727
ref: 92015

NUT

€ 2.50

92015A

920151848
ref: 92015A

NUT,STEERING STEM,35M

€ 30.00

92049

920491383
ref: 92049

SEAL-OIL,XMHE 43 55 4

€ 12.00

92049A

920491483
ref: 92049A

SEAL-OIL,MX043N2

€ 12.50

92055

920551452
ref: 92055

RING-O,34.5X2.0

€ 3.00

92055A

920551459
ref: 92055A

RING-O,ID=24.5

€ 3.00

92066

920661077
ref: 92066

CAP,REAR VIEW MIRROR

€ 3.00

92066A

920661444
ref: 92066A

PLUG

€ 3.50

92116

921161072
ref: 92116

BEARING-ROLLER,32907J

€ 71.50

92116A

921161074
ref: 92116A

BEARING-ROLLER,32907J

€ 71.50

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92150A

921501942
ref: 92150A

BOLT,SOCKET,10X23

€ 4.00

92200

922001083
ref: 92200

WASHER,CLAW,25.5X40X2

€ 4.00

92200A

922001084
ref: 92200A

WASHER,25.5X42X2.3

€ 3.50

92210

922101166
ref: 92210

NUT

€ 16.00
