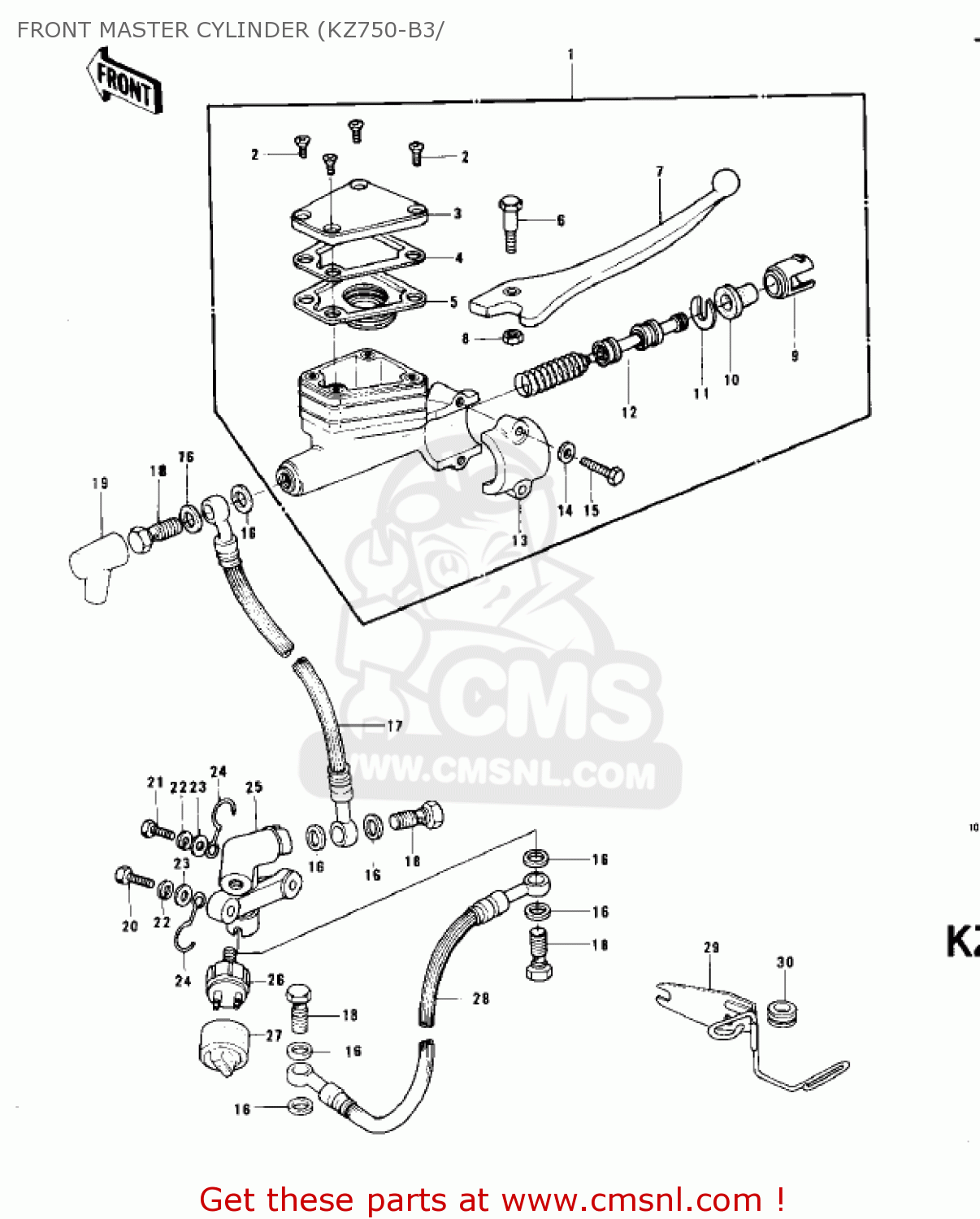

FRONT MASTER CYLINDER (KZ750-B3/

ref

onderdeelnr

omschrijving

hoeveelheid

1

430151007
ref: 1

CYLINDER ASSY,MASTER

€ 193.00

2

920011055
ref: 2

SCREW,COUNTERSUNK HED

€ 3.50

3

430261003
ref: 3

CAP-BRAKE

€ 36.00

4

430271002
ref: 4

PLATE-DIAPHRAGM

€ 4.00

5

430281002
ref: 5

DIAPHRAGM

€ 17.00

6

920011056
ref: 6

BOLT, CLUTCH LEV FITT

€ 8.00

7

460921002
ref: 7

LEVER-GRIP,FRONT BRAK

€ 20.50

8

312B0600
ref: 8

NUT,6MM

€ 0.50

9

140081007
ref: 9

LINER,PISTON

€ 7.50

10

490161010
ref: 10

COVER-SEAL,BRAKE PIST

€ 9.00

11

430221001
ref: 11

STOPPER-BRAKE,PISTON

€ 2.50

12

430201026
ref: 12

PISTON-COMP-BRAKE

€ 59.00

13

430341001
ref: 13

HOLDER-BRAKE,MASTER C

€ 19.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

110N0625
ref: 15

BOLT-HEX HEAD,6X25

€ 3.00

16

43067001
ref: 16

WASHER,10.5X15X1.5

€ 1.50

17

43059007
ref: 17

HOSE-BRAKE

€ 95.00

18

920021888
ref: 18

BOLT,OIL,L=23

€ 3.50

19

490061041
ref: 19

BOOT,DUST

€ 7.00

20

110N0632
ref: 20

BOLT,6X32

€ 2.50

21

110N0622
ref: 21

BOLT,6X22

€ 2.00

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

411B0600
ref: 23

WASHER-PLAIN,6MM

€ 0.50

24

92037092
ref: 24

CLAMP,CABLE

€ 4.50

25

43061002
ref: 25

JOINT-THREE WAY

€ 47.50

26

43065001
ref: 26

SWITCH,BRAKE,FR

€ 35.50

27

110121037
ref: 27

CAP,FRONT BRK SWITCH

€ 1.50

28

43059033
ref: 28

HOSE-BRAKE,L=464

€ 89.00

29

110341041
ref: 29

BRACKET,BRAKE HOSE,LH

€ 32.00

30

43064006
ref: 30

GROMMET,BRAKE HOSE

€ 2.50
