OIL PUMP

KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

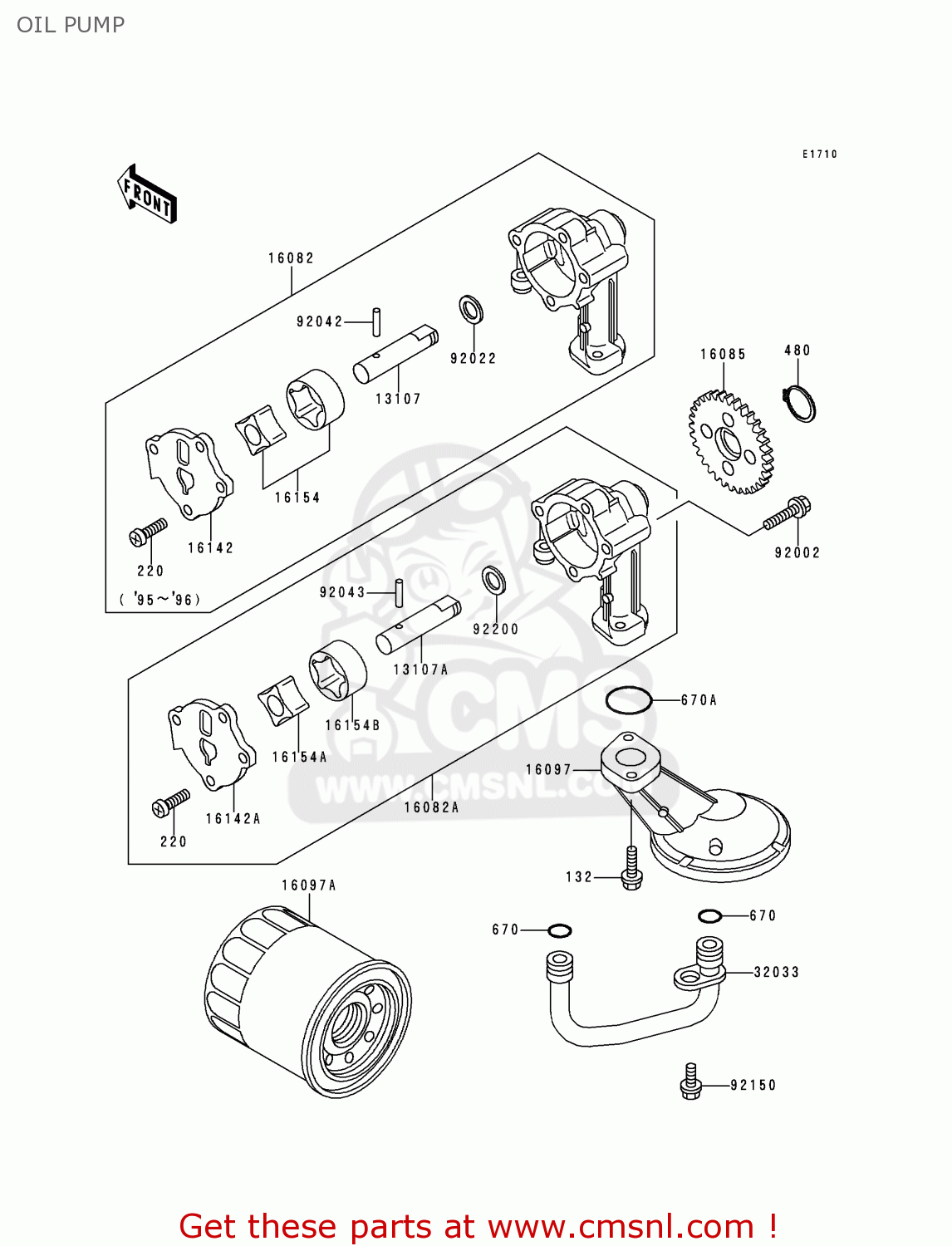

Oil pump technisch schema KLE500A9 1999 EUROPE UK FR NL AR FG GR IT NR SD SP

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.00

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00

670A

670D2022
ref: 670A

O-RING, 22M/M

€ 6.00

13107A

131071366
ref: 13107A

SHAFT,OIL PUMP

€ 18.50

16082A

160821147
ref: 16082A

PUMP-ASSY-OIL

€ 149.50

16085

160851143
ref: 16085

GEAR,OIL PUMP

€ 92.00

16097

160971056
ref: 16097

FILTER-ASSY-OIL

€ 13.00

16097A

160971066
ref: 16097A

FILTER-ASSY-OIL

€ 10.00

16142A

161421141
ref: 16142A

COVER-PUMP,OIL

€ 18.50

16154A

161541111
ref: 16154A

ROTOR-PUMP,INNER

€ 49.00

16154B

161541112
ref: 16154B

ROTOR-PUMP,OUTER

€ 49.00

32033

320331540
ref: 32033

PIPE

€ 36.00

92002

920021609
ref: 92002

BOLT

€ 3.00

92043

920431543
ref: 92043

PIN,4X15.8

€ 1.00

92150

921501826
ref: 92150

BOLT,6X12

€ 2.50

92200

922001334
ref: 92200

WASHER

€ 1.50

OIL PUMP
