De online onderdelen catalogus

MUFFLER

KL250C2 1984 USA

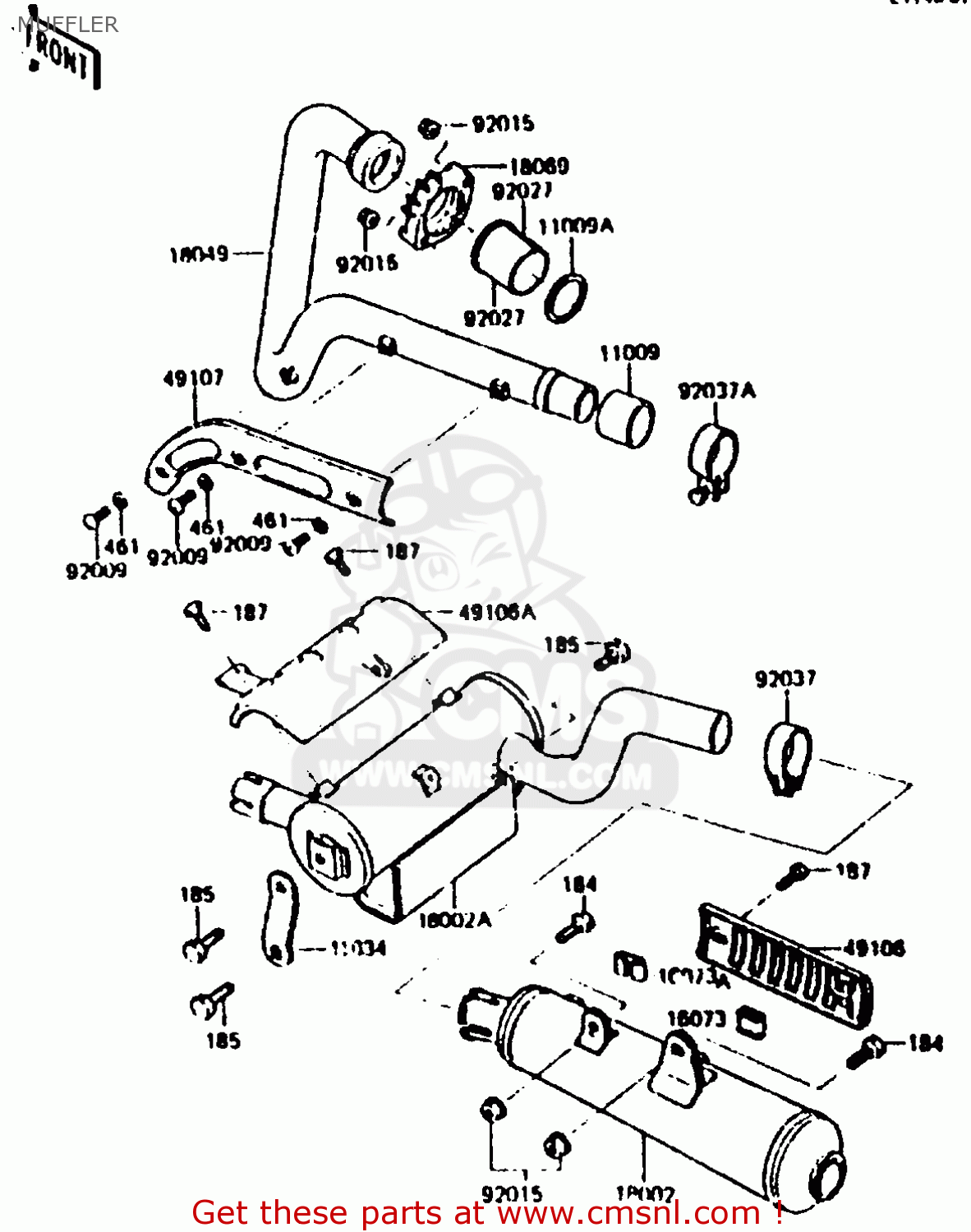

Muffler technisch schema KL250C2 1984 USA

MUFFLER KL250C2 1984 USA
MUFFLER KL250C2 1984 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
11009
110091011
ref: 11009
GASKET, MUFLER CONECT (MCA)
110091011
€ 14.00
11009A
18067004
ref: 11009A
GASKET-EXHAUST PIPE (MCA)
18067004
€ 7.00
11034
110341734
ref: 11034
BRACKET
€ 3.50
16073
18065007
ref: 16073
INSULATOR,HEAT
18065007
€ 3.00
16073A
18065010
ref: 16073A
INSULATOR,HEAT
18065010
€ 2.50
18002
180021240
ref: 18002
BODY-COMP-MUFFLER
€ 223.50
18002A
180021276
ref: 18002A
BODY-COMP-MUFFLER
€ 223.50
18049
180491184
ref: 18049
PIPE-EXHAUST
€ 92.00
18069
180691014
ref: 18069
HOLDER,EXHAUST PIPE
180691014
€ 12.00
49106
491061005
ref: 49106
COVER-MUFFLER
€ 26.50
49106A
491061006
ref: 49106A
COVER-MUFFLER
€ 14.50
49107
491071005
ref: 49107
COVER-EXHAUST PIPE
€ 14.50
92009
920091054
ref: 92009
SCREW
920091054
€ 2.00
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92027
92027264
ref: 92027
COLLAR, EXHAUST PIPE
92027264
€ 3.00
92037
920371223
ref: 92037
CLAMP
920371223
€ 8.00
92037A
920371243
ref: 92037A
CLAMP,37MM
920371243
€ 17.00
184
184G0820
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.00
185
185G0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 2.00
187
187B0612
ref: 187
BOLT-UPSET-WSP
187B0612
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
