MUFFLER ('69-'73)

G3SS 1970 USA CANADA

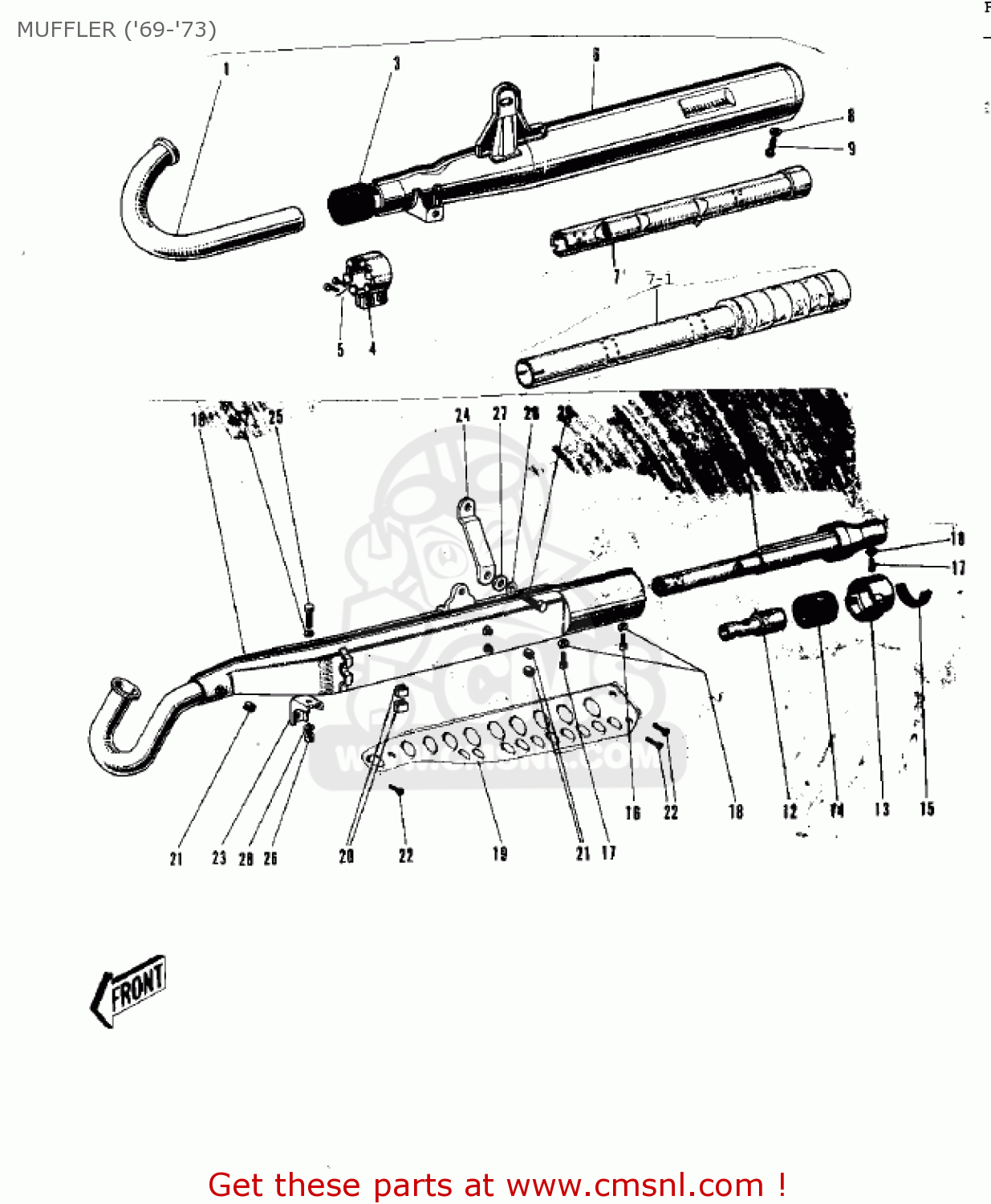

Muffler ('69-'73) technisch schema G3SS 1970 USA CANADA

MUFFLER ('69-'73) G3SS 1970 USA CANADA
MUFFLER ('69-'73) G3SS 1970 USA CANADA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
18049021
ref: 1
PIPE-EXHAUST
€ 56.50
3
18043008
ref: 3
SEAL,MUFFLER
18043008
€ 25.50
4
1804400479
ref: 4
HOLDER,MUFFLER CONECT
1804400479
€ 18.00
5
220B0625
ref: 5
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
?
18001116
ref: ?
Includes items 6 - 9
MUFFLER ASSY
18001116
€ 167.00
?
18001116
ref: ?
Includes items 6 - 9
MUFFLER ASSY
18001116
€ 167.00
7
18033026
ref: 7
FOR 18002-048
BAFFLE TUBE
€ 44.50
?
18033057
ref: ?
Includes items 7 - 1
BAFFLE TUBE
€ 40.50
8
461F0600
ref: 8
WASHER-SPRING,6MM
461F0600
€ 0.50
9
220B0608
ref: 9
SCREW-PAN HEAD,6X8
220B0608
€ 0.50
10-12
18001025
ref: 10-12
MUFFLER ASSY
€ 88.00
11
18033029
ref: 11
SPARK ARRESTER,COMPLETE
€ 66.00
12
18033028
ref: 12
BAFFLE TUBE
€ 6.50
13
18048012
ref: 13
TAIL PIECE
18048012
€ 16.50
14
18050003
ref: 14
ELEMENT-TAIL PIECE
18050003
€ 5.00
15
18068006
ref: 15
GASKET-TAIL PIECE (NAS)
18068006
€ 1.50
16
110B0606
ref: 16
UNAVAILABLE IN PRICE BOOK
€ 0.00
17
112G0610
ref: 17
BOLT,6X10
€ 0.50
18
464H0600
ref: 18
WASHER-LOCK,6MM
464H0600
€ 0.50
19
1805703521
ref: 19
COVER-MUFFLER,BLACK
1805703521
€ 17.00
20
18065007
ref: 20
INSULATOR,HEAT
18065007
€ 3.00
21
18065001
ref: 21
INSULATOR
18065001
€ 1.50
22
221E0610
ref: 22
SCREW-CNTSNK HD,6X10
221E0610
€ 2.50
23
18061019
ref: 23
BRACKET-FRONT MUFFLER
18061019
€ 4.00
24
18061024
ref: 24
MUFFLER BRACKET,REAR
18061024
€ 22.00
25
116B0816
ref: 25
BOLT-HEX HEAD,8X16
€ 0.50
26
311B0800
ref: 26
NUT,8MM
311B0800
€ 0.50
27
410B0800
ref: 27
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
28
461F0800
ref: 28
WASHER-SPRING,8MM
461F0800
€ 0.50
29
110N0816
ref: 29
BOLT-HEX HEAD,8X16
110N0816
€ 0.50
