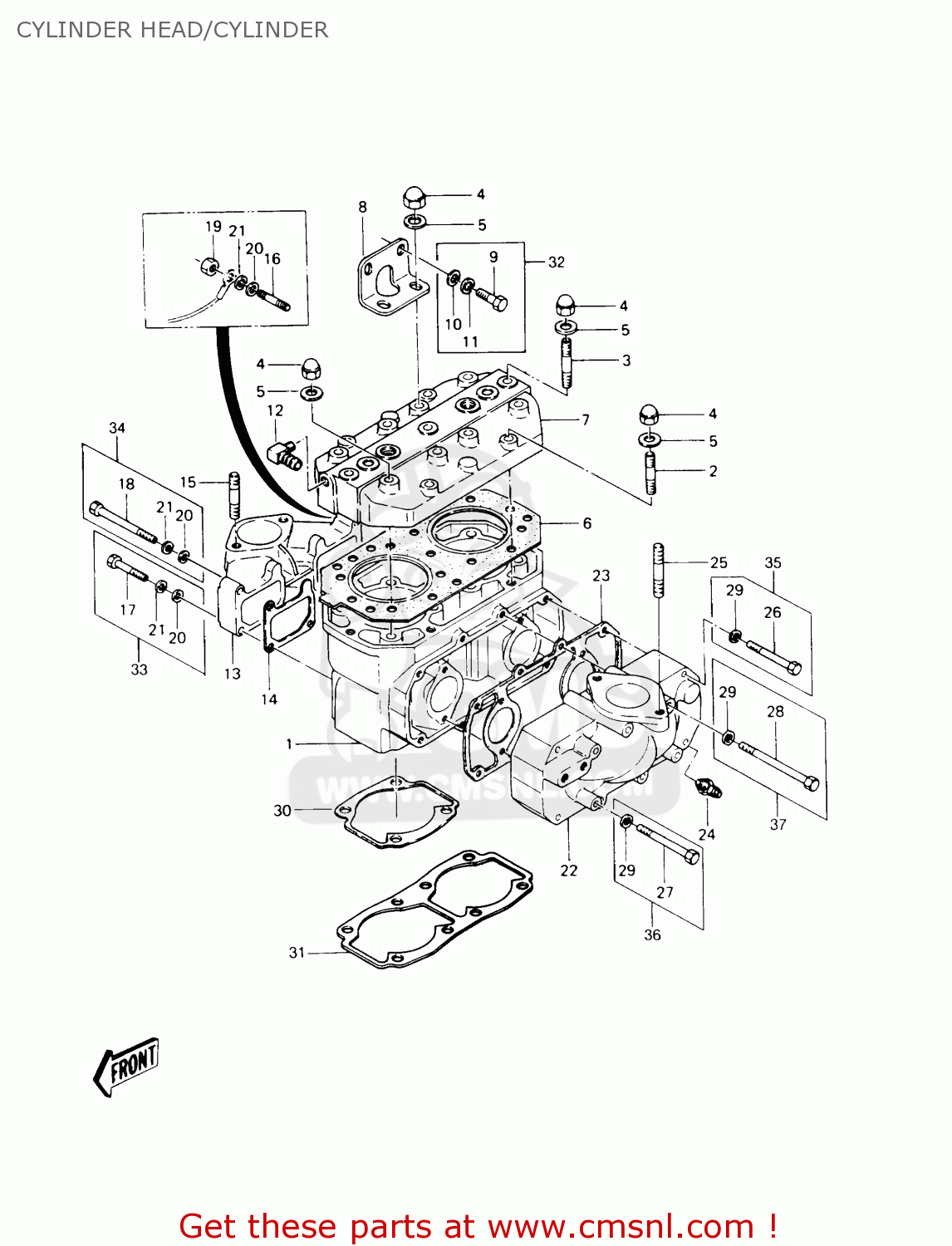

CYLINDER HEAD/CYLINDER

ref

onderdeelnr

omschrijving

hoeveelheid

1

110053025YR
ref: 1

CYLINDER-ENGINE

€ 454.00

2

920043016
ref: 2

STUD,8X42

€ 3.00

3

920043017
ref: 3

STUD,8X50

€ 3.00

4

920153003
ref: 4

NUT,CAP,8MM

€ 3.00

5

411S0800
ref: 5

WASHER

€ 1.50

6

110043019
ref: 6

GASKET-HEAD (MCA)

€ 22.50

7

110083002YR
ref: 7

HEAD-COMP-CYLINDER

€ 203.50

8

110343011
ref: 8

BRACKET

€ 16.50

9

110R0614
ref: 9

BOLT 6X14

€ 2.50

10

411S0600
ref: 10

WASHER

€ 1.00

11

461S0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

520143002
ref: 12

ELBOW-WATER HOSE

€ 21.00

13

59076505YR
ref: 13

MANIFOLD-INTAKE

€ 84.00

14

16062510
ref: 14

GASKET,INTAKE (MCA)

€ 2.50

15

172R0835
ref: 15

STUD,8X35

€ 5.00

16

171R0635
ref: 16

STUD,6X35

€ 5.00

17

110R0635
ref: 17

BOLT 6X35

€ 3.50

18

110R0670
ref: 18

BOLT,6X70

€ 5.00

19

311R0600
ref: 19

NUT,6M/M

€ 0.50

20

410S0600
ref: 20

WASHER-PLAIN-SMALL,6M

€ 0.50

21

461S0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

59081504YR
ref: 22

MANIFOLD-EXHAUST

€ 203.50

23

110093023
ref: 23

GASKET,EXHAUST (MCA)

€ 17.50

24

920053001
ref: 24

JOINT,HOSE

€ 7.00

25

172R0835
ref: 25

STUD,8X35

€ 5.00

26

110R0650
ref: 26

BOLT,6X50

€ 3.50

27

110R0670
ref: 27

BOLT,6X70

€ 5.00

28

110R0685
ref: 28

BOLT,6X85

€ 1.50

29

410S0600
ref: 29

WASHER-PLAIN-SMALL,6M

€ 0.50

30

11009505
ref: 30

GASKET,CYLINDER (MCA)

€ 11.50
