JET PUMP

JH900-A3 JETSKI900ZXI 1997 USA

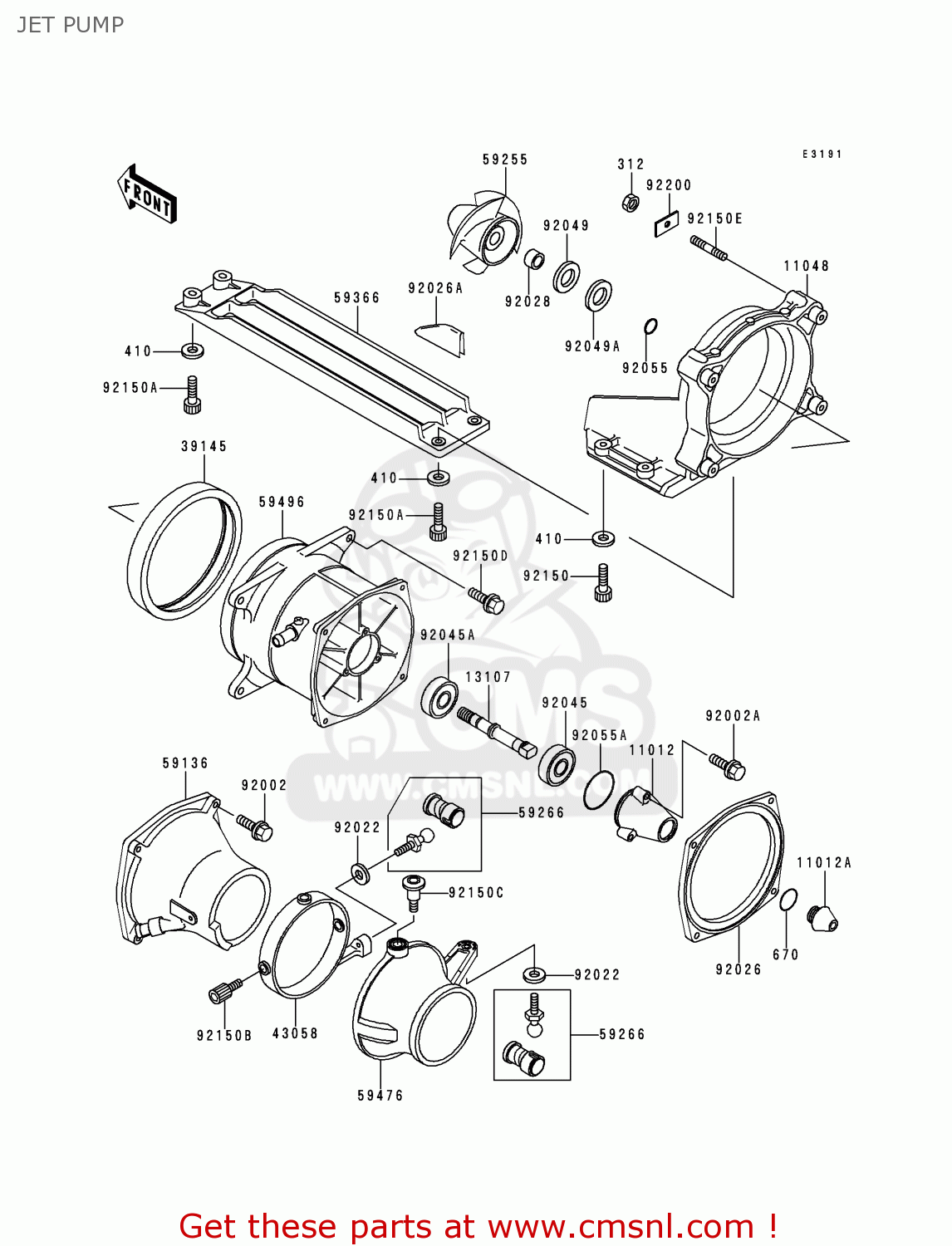

Jet pump technisch schema JH900-A3 JETSKI900ZXI 1997 USA

JET PUMP JH900-A3 JETSKI900ZXI 1997 USA
JET PUMP JH900-A3 JETSKI900ZXI 1997 USA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
312
312R0600
ref: 312
NUT-HEX,6MM
€ 0.50
410
410S0600
ref: 410
WASHER-PLAIN-SMALL,6M
410S0600
€ 0.50
670
670B2020
ref: 670
O RING,20MM
670B2020
€ 1.00
11012
110123771
ref: 11012
CAP
€ 50.50
11012A
110123772
ref: 11012A
CAP
€ 6.50
11048
110483763
ref: 11048
BRACKET
€ 334.50
13107
131073737
ref: 13107
SHAFT,JETPUMP
131073737
€ 56.00
39145
391453742
ref: 39145
TRIM-SEAL
391453742
€ 30.50
43058
430583709
ref: 43058
RING
430583709
€ 110.50
59136
591363738
ref: 59136
NOZZLE-PUMP
€ 231.00
59255
592553709
ref: 59255
IMPELLER-COMP
592553709
€ 707.00
59266
592663707
ref: 59266
JOINT-BALL
592663707
€ 46.00
59366
593663712
ref: 59366
GRATE
€ 124.00
59476
594763724RA
ref: 59476
NOZZLE-STRG,GRAY
€ 64.00
59496
594963713
ref: 59496
VANE-GUIDE
€ 1,000.00
92002
920023716
ref: 92002
BOLT
920023716
€ 3.50
92002A
920023726
ref: 92002A
BOLT,6X30
920023726
€ 3.00
92022
92022567
ref: 92022
WASHER
92022567
€ 2.00
92026
920263730
ref: 92026
SPACER
€ 30.50
92026A
920263731
ref: 92026A
SPACER
€ 8.00
92028
920283750
ref: 92028
BUSHING
920283750
€ 21.50
92045
920453721
ref: 92045
BEARING-BALL,62022RD
920453721
€ 18.00
92045A
920453722
ref: 92045A
BEARING-BALL,6303-132
920453722
€ 26.50
92049
920493717
ref: 92049
SEAL-OIL
920493717
€ 17.50
92049A
920493718
ref: 92049A
SEAL-OIL
920493718
€ 19.00
92055
920551021
ref: 92055
RING-O,13X1.9
920551021
€ 4.50
92055A
920553741
ref: 92055A
RING-O
920553741
€ 2.00
92150
921503748
ref: 92150
BOLT
€ 2.00
92150A
921503775
ref: 92150A
BOLT
921503775
€ 3.00
92150B
921503808
ref: 92150B
BOLT
921503808
€ 10.00
92150C
921503827
ref: 92150C
BOLT
€ 11.00
92150D
921503828
ref: 92150D
BOLT,8X30
€ 3.50
92150E
921503829
ref: 92150E
BOLT
€ 3.50
92200
922003740
ref: 92200
WASHER
€ 3.00
