De online onderdelen catalogus

TAILLIGHT/REAR FENDER (B/E/F/IT/N/PO)

SH50D SCOOPY 1995 (S) NORWAY KPH

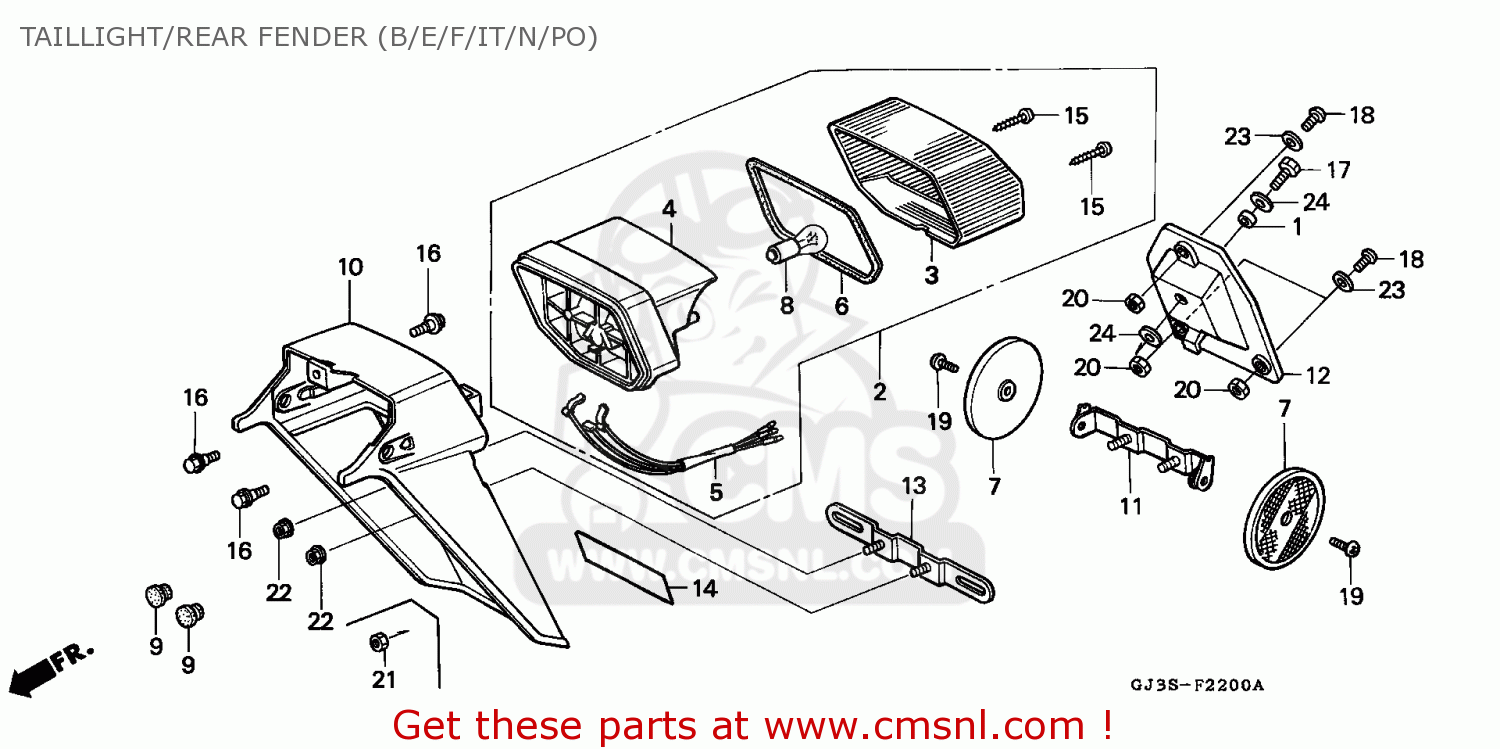

Taillight/rear fender (b/e/f/it/n/po) technisch schema SH50D SCOOPY 1995 (S) NORWAY KPH

TAILLIGHT/REAR FENDER (B/E/F/IT/N/PO) SH50D SCOOPY 1995 (S) NORWAY KPH
TAILLIGHT/REAR FENDER (B/E/F/IT/N/PO) SH50D SCOOPY 1995 (S) NORWAY KPH
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
2
33701GJ4760
ref: 2
UNIT TAILLIGHT
33701GJ4760
€ 37.50
3
33702GJ4711
ref: 3
LENS TAIL STOP
33702GJ4711
€ 28.00
4
33703GJ4711
ref: 4
BASE TAILLIGHT
33703GJ4711
€ 12.50
5
33705GJ4760
ref: 5
CORD COMP.,TAILLI
33705GJ4760
€ 12.00
6
33709GJ4711
ref: 6
PACKING TAILLIGHT
33709GJ4711
€ 2.50
8
34911634611
ref: 8
BULB (12V21W-5W)
34911634611
€ 4.50
10
80105GJ3600
ref: 10
FENDER A,RR.
80105GJ3600
€ 14.50
13
84701GJ3600
ref: 13
PLATE,NUMBER SETT
84701GJ3600
€ 7.00
15
90105GJ4711
ref: 15
SCREW TAPPING 3.5X35
90105GJ4711
€ 1.50
16
90112GC3000
ref: 16
BOLT,SPECIAL,5MM
90112GC3000
€ 2.50
22
9405005000
ref: 22
NUT,FLANGE,5MM
9405005000
€ 1.00
