STEERING STEM (1)

XR200R 1990 (L) GENERAL EXPORT / KPH

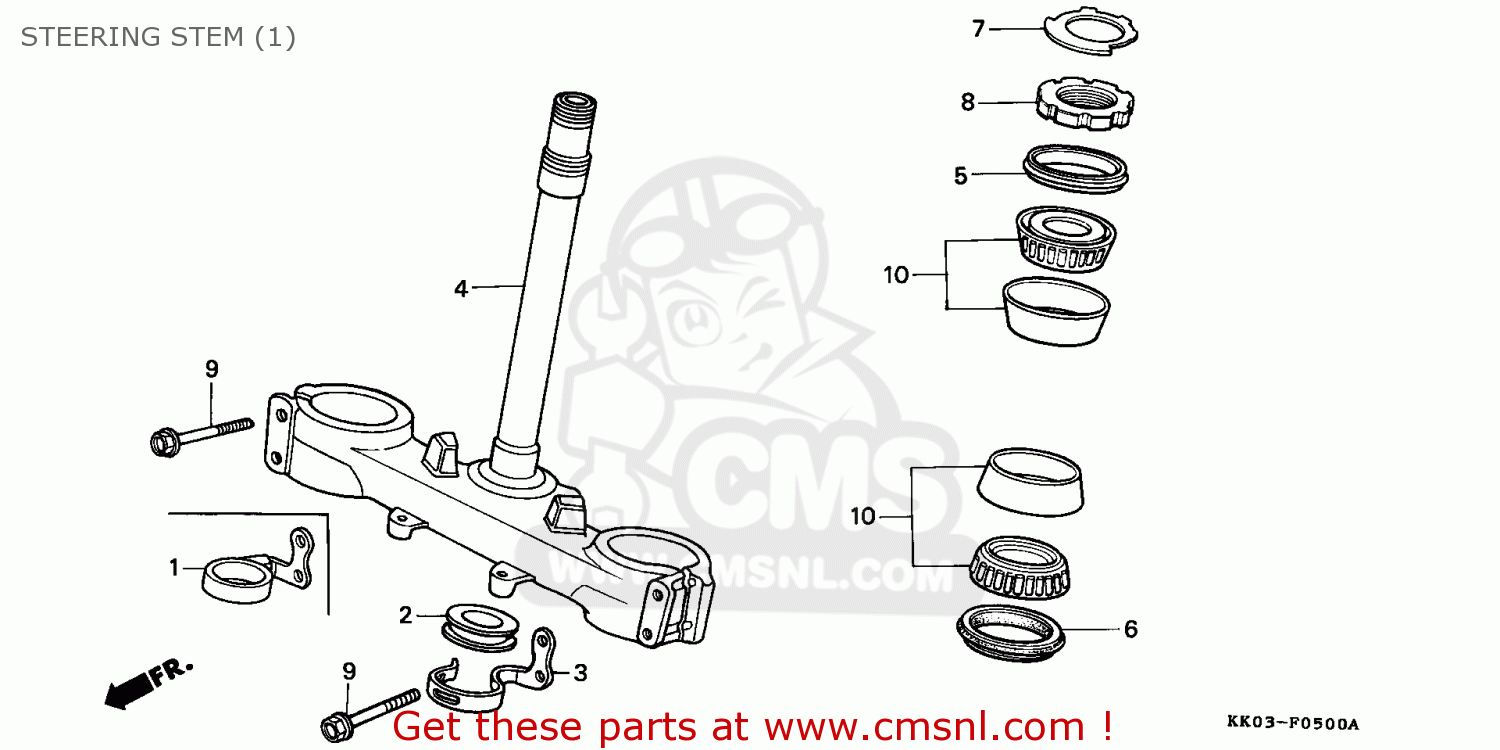

Steering stem (1) technisch schema XR200R 1990 (L) GENERAL EXPORT / KPH

STEERING STEM (1) XR200R 1990 (L) GENERAL EXPORT / KPH
STEERING STEM (1) XR200R 1990 (L) GENERAL EXPORT / KPH
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
2
45466KA4000
ref: 2
INN,CABLE GUIDE
45466KA4000
€ 5.50
3
45468KK0000
ref: 3
GUIDE,BRK.CABLE
€ 20.00
4
53200KT0830
ref: 4
STEM COMP.,STEERI
€ 274.00
5
53214KA3732
ref: 5
DUST SEAL,STRG.
53214KA3732
€ 7.00
6
53214KA4701
ref: 6
DUST SEAL,STRG.HD
53214KA4701
€ 7.00
7
53228KN5000
ref: 7
WASHER,TOP THREAD
53228KN5000
€ 7.50
8
53229KN5650
ref: 8
THREAD,STEERING H
53229KN5650
€ 19.50
9
963000803500
ref: 9
BOLT,FLANGE,DR,8X
963000803500
€ 1.50
10
91015425831
ref: 10
R/BRG TAP N/COM
91015425831
€ 39.00
10
91015425832
ref: 10
R/BRG TAP N/COM
91015425832
€ 39.00
