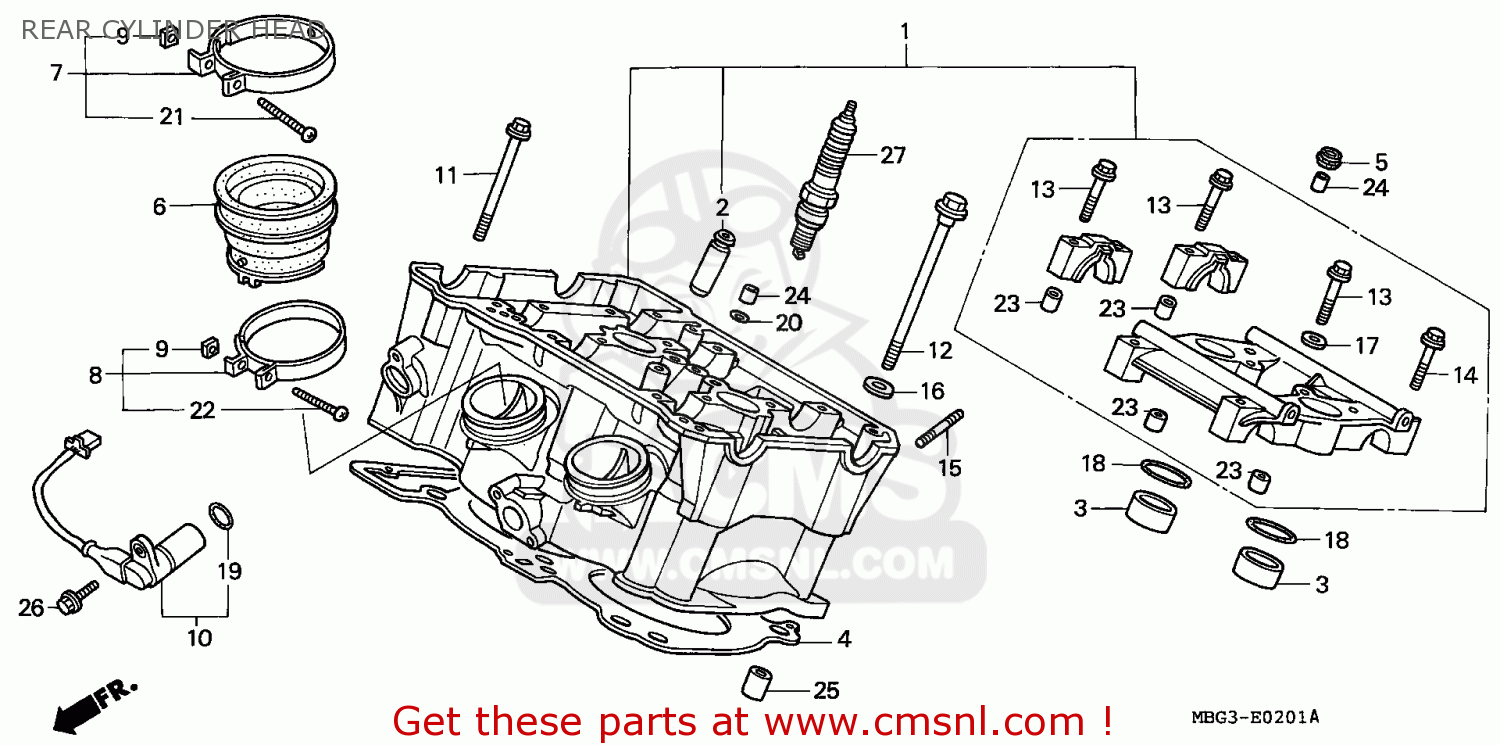

REAR CYLINDER HEAD

ref

onderdeelnr

omschrijving

hoeveelheid

1

12020MBG000
ref: 1

HEAD ASSY,REAR

€ 1,371.50

2

12204MW4305
ref: 2

GUIDE,VALVE OSZ

€ 20.00

3

12217MBG000
ref: 3

COLLAR,25MM

€ 9.00

4

12252MW4000
ref: 4

GASKET,REAR HEAD (NAS)

€ 62.00

5

12396MBG000
ref: 5

GASKET C,HEAD COV (NAS)

€ 6.00

6

16211MBG000
ref: 6

INSULATOR,THROT B

€ 25.00

7

16217MBG000
ref: 7

BAND,INSULATOR

€ 6.50

8

16218MV9670
ref: 8

BAND B,INSULATOR

€ 8.00

9

16222MV4300
ref: 9

NUT,SQUARE,5MM

€ 2.00

10

36140MBG003
ref: 10

PULSER ASSY,CAM .

€ 220.50

11

90004PR0000
ref: 11

BOLT,FLANGE 6X77

€ 5.00

12

90008ML7920
ref: 12

BOLT,FLANGE,9X98

€ 11.00

13

90018425000
ref: 13

BOLT,FLANGE 6X48

€ 10.00

14

90019MA6000
ref: 14

BOLT,FLG.,6X39.5

€ 3.00

15

90035MW4000
ref: 15

BOLT STUD,6X22

€ 2.50

16

90445MM4000
ref: 16

WASHER,9MM

€ 3.00

17

90463ML7000
ref: 17

WASHER,SEALING,6.

€ 5.50

18

91307PY4003
ref: 18

O RING,24.5X1.9

€ 3.50

19

91309PX4003
ref: 19

O-RING 16X2.1

€ 4.50

20

91317P4V004
ref: 20

O-RING, 9.8X1.9

€ 2.50

21

93500050250H
ref: 21

SCREW,PAN,5X25

€ 2.00

22

93500050280G
ref: 22

SCREW,CROSS 5X28

€ 1.00

25

9430112200
ref: 25

DOWEL,PIN,12X20

€ 2.00

26

957010601807
ref: 26

BOLT FLANGE 6X18

€ 1.50

27

9805959916
ref: 27

PLUG,SPARK(CR9EH9

€ 9.50

27

9805959926
ref: 27

PLUG,SPARK(U27FER

€ 19.00

27

9805958916
ref: 27

PLUG,SPARK(CR8EH9

€ 9.50

27

9805958926
ref: 27

PLUG,SPARK(U24FER

€ 19.00
