CBR1000F 1994 (R) BRAZIL
current:
SEAT/REAR COWL
SEAT/REAR COWL
CBR1000F 1994 (R) BRAZIL

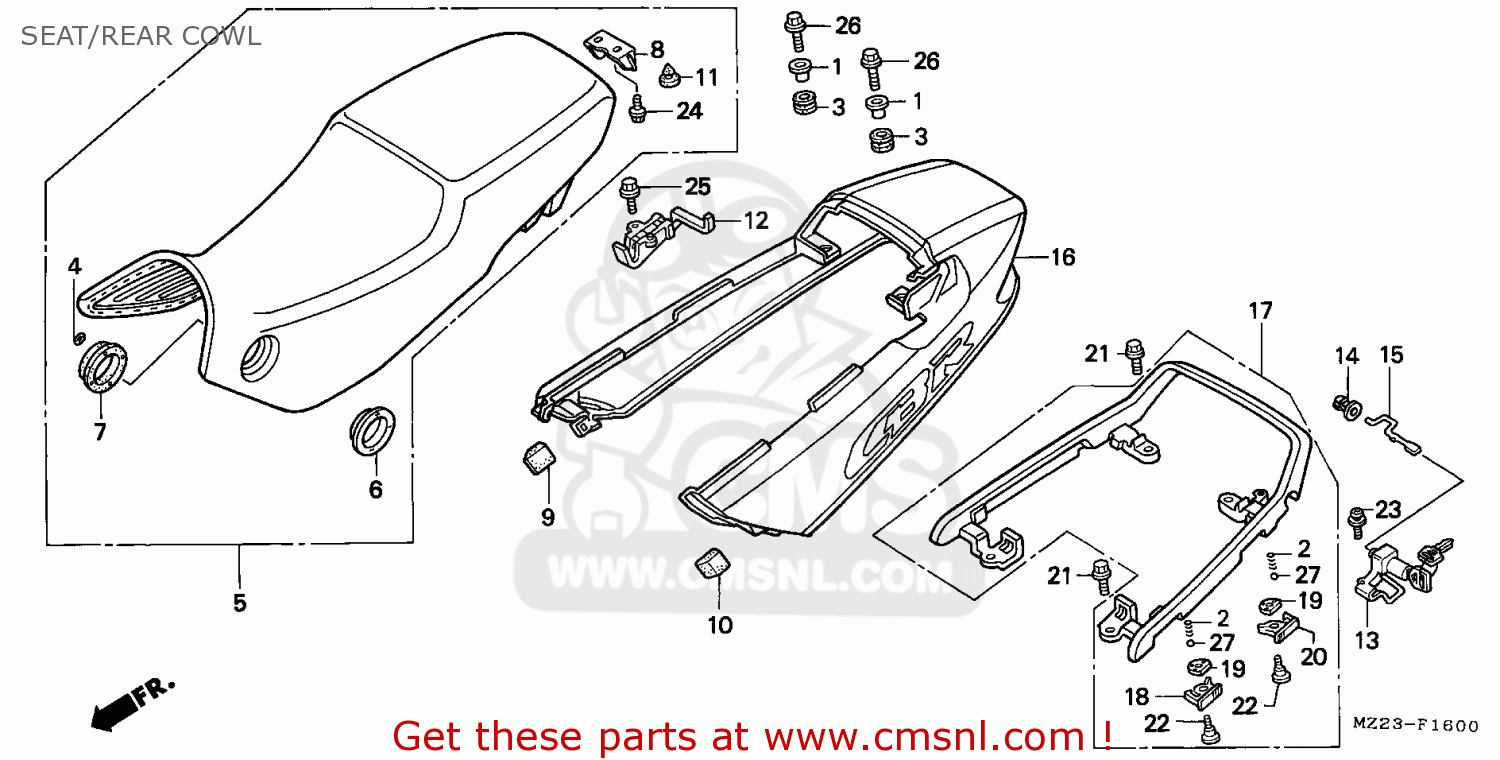

Seat/rear cowl technisch schema CBR1000F 1994 (R) BRAZIL
SEAT/REAR COWL CBR1000F 1994 (R) BRAZIL
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
17535KE7000
ref: 1
COL,FUEL TANK SET
€ 4.00
2
22431121880
ref: 2
SPRING CLUTCH SUB
€ 2.00
3
61103357000
ref: 3
RUBBER,FR-FEND.MT
€ 4.00
4
64206MJ0000
ref: 4
NUT,SPEED,4MM
€ 2.00
5
77200MS2670ZC
ref: 5
SEAT ASSY.,*NH1L*
€ 465.50
5
77200MS2670ZA
ref: 5
SEAT ASSY*NH123L*
€ 465.50
6
77201MS2000
ref: 6
GARNISH A
€ 14.00
7
77202MS2000
ref: 7
GARNISH B
€ 9.50
8
77203MS2000
ref: 8
BRACKET,SEAT LOCK
€ 11.50
9
77211MM5000
ref: 9
RUBBER,R.RR.COWL
€ 4.00
10
77212MM5000
ref: 10
RUBBER,L.RR.COWL
€ 3.50
11
77215GC2000
ref: 11
RUBBER SET STOP
€ 5.00
12
77220MZ2000
ref: 12
HOOK SEAT CACTH
€ 26.00
13
77225MS2003
ref: 13
HOLDER ASSY.,HELM
€ 39.50
14
77231MS2003
ref: 14
HOLDER,ROD
€ 1.50
15
77232MM5770
ref: 15
BAR,SEAT LOCK
€ 5.50
16
77260MZ2890ZA
ref: 16
SET ILLUS*TYPE16*
€ 250.00
16
77260MZ2890ZB
ref: 16
SET ILLUS*TYPE17*
€ 254.50
16
77260MZ2890ZC
ref: 16
SET ILLUS*TYPE18*
€ 211.50
17
77300MS2670ZE
ref: 17
RAIL ASSY.,R*NH1*
€ 334.00
17
77300MS2670ZF
ref: 17
RAIL ASSY*NH193P*
€ 334.00
18
84120MS2670ZE
ref: 18
HOOK A,LAGGA*NH1*
€ 19.50
18
84120MS2670ZF
ref: 18
HOOK A,LA*NH193P*
€ 18.50
19
84121MS2000
ref: 19
PLATE,HOOK SET
€ 3.00
20
84130MS2670ZE
ref: 20
HOOK B,LAGGA*NH1*
€ 19.50
20
84130MS2670ZF
ref: 20
HOOK B,LA*NH193P*
€ 18.50
21
90004PE0000
ref: 21
BOLT,SPECIAL,8X18
€ 4.50
22
90112MS2000
ref: 22
SCREW,PAN,6X22
€ 3.50
23
938920501608
ref: 23
SCREW-WASHER,5X16
€ 0.50
25
957010602008
ref: 25
BOLT,FLANGE,6X20
€ 1.00
26
960010602500
ref: 26
BOLT,FLANGE,SH,6X25
€ 1.50
27
9621107000
ref: 27
BALL,STEEL.,7
€ 0.50
