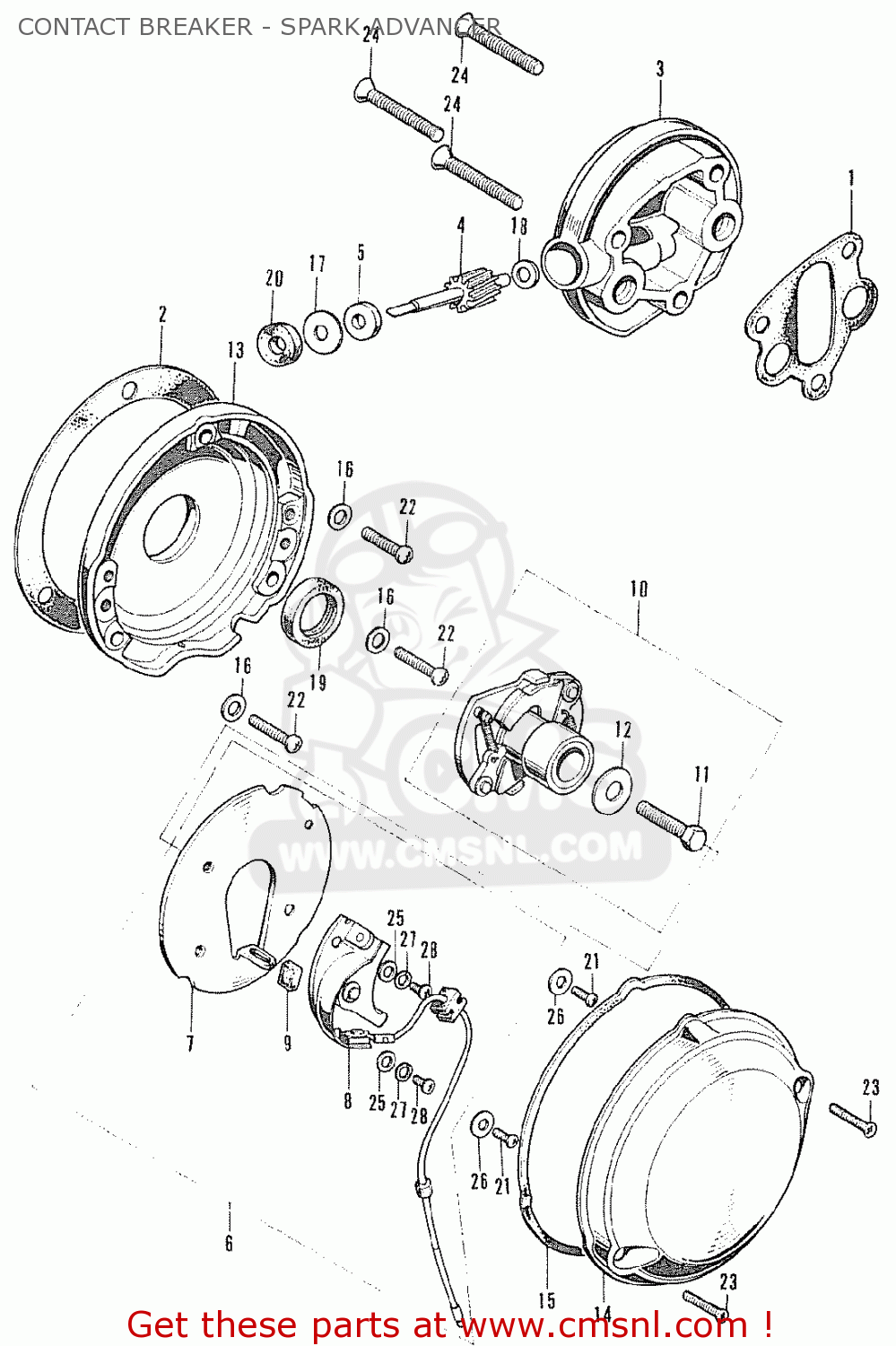

CONTACT BREAKER - SPARK ADVANCER - CB125K5 GENERAL EXPORT / MPH

ref

onderdeelnr

omschrijving

hoeveelheid

1

12394246020
ref: 1

GASKET,GEAR BOX (MCA)

€ 7.00

2

12396246020
ref: 2

GASKET,POINT BASE (MCA)

€ 3.50

3

12411304000
ref: 3

BOX,TACH GEAR

€ 40.00

4

12431246000
ref: 4

GEAR,TACHOMETER

€ 30.00

5

12435246000
ref: 5

COLLAR,TACHOMETER

€ 10.50

6

30200303003
ref: 6

BREAKER,CONTACT

€ 112.00

6

30200303004
ref: 6

BREAKER,CONTACT

€ 112.00

6

30200303154
ref: 6
5024446

BREAKER,CONTACT

€ 64.50

7

30201246003
ref: 7

PLATE,BREAKER

€ 29.50

7

30201246004
ref: 7

BASE PLATE

€ 27.00

8

30202028003
ref: 8

BREAKER, CONTACT

€ 22.50

8

30202216004
ref: 8

BREAKER,CONTACT

€ 49.00

8

30202107004
ref: 8

BREAKER,CONTACT

€ 49.00

9

30205205003
ref: 9

FELT,OIL

€ 4.00

9

30205205014
ref: 9

FELT OIL

€ 2.50

10

30220303014
ref: 10

ADVANCER,SPARK

€ 173.50

10

30220303154
ref: 10
5024446

ADVANCER,SPARK

€ 149.50

11

30225246004
ref: 11

BOLT,ADVANSER

€ 3.50

12

30226246004
ref: 12

WASHER,ADVANSER

€ 1.00

13

30361246030
ref: 13

BASE,POINT

€ 38.50

14

30371246300
ref: 14

BODY,POINT COVER

€ 55.50

15

30372246300
ref: 15

GASKET,POINTCOVER (MCA)

€ 2.50

16

90441028010
ref: 16

WASHER, SEALING

€ 2.00

17

90458286000
ref: 17

WASHER THRUST

€ 3.50

18

90539011000
ref: 18

WASHER PINION

€ 3.50

19

91201246003
ref: 19

OIL-SEAL,15X24X5

€ 13.50

20

91201246005
ref: 20
5021614

OIL-SEAL,15X24X5

€ 13.50

20

91211286003
ref: 20

OIL-SEAL 4.8X14.5

€ 3.50

21

93500050080A
ref: 21

SCREW,CROSS 5X8

€ 0.50

22

9350006020
ref: 22

SCREW,CROSS 6X20

€ 1.00

23

93700050160A
ref: 23

SCREW,OVAL,5X16

€ 1.00

24

9370006032
ref: 24

SCREW,CROSS,6X32

€ 1.00

25

9410104000
ref: 25

WASHER,4MM

€ 1.00

26

9410105000
ref: 26

WASHER,PLAIN,5MM

€ 1.00

27

9411104000
ref: 27

WASHER,SPG.,4MM

€ 1.00

28

99500040060A
ref: 28

SCREW 4X6

€ 0.50

CONTACT BREAKER - SPARK ADVANCER
