HEADLAMP (GSX1100EE/EF/EG)

GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

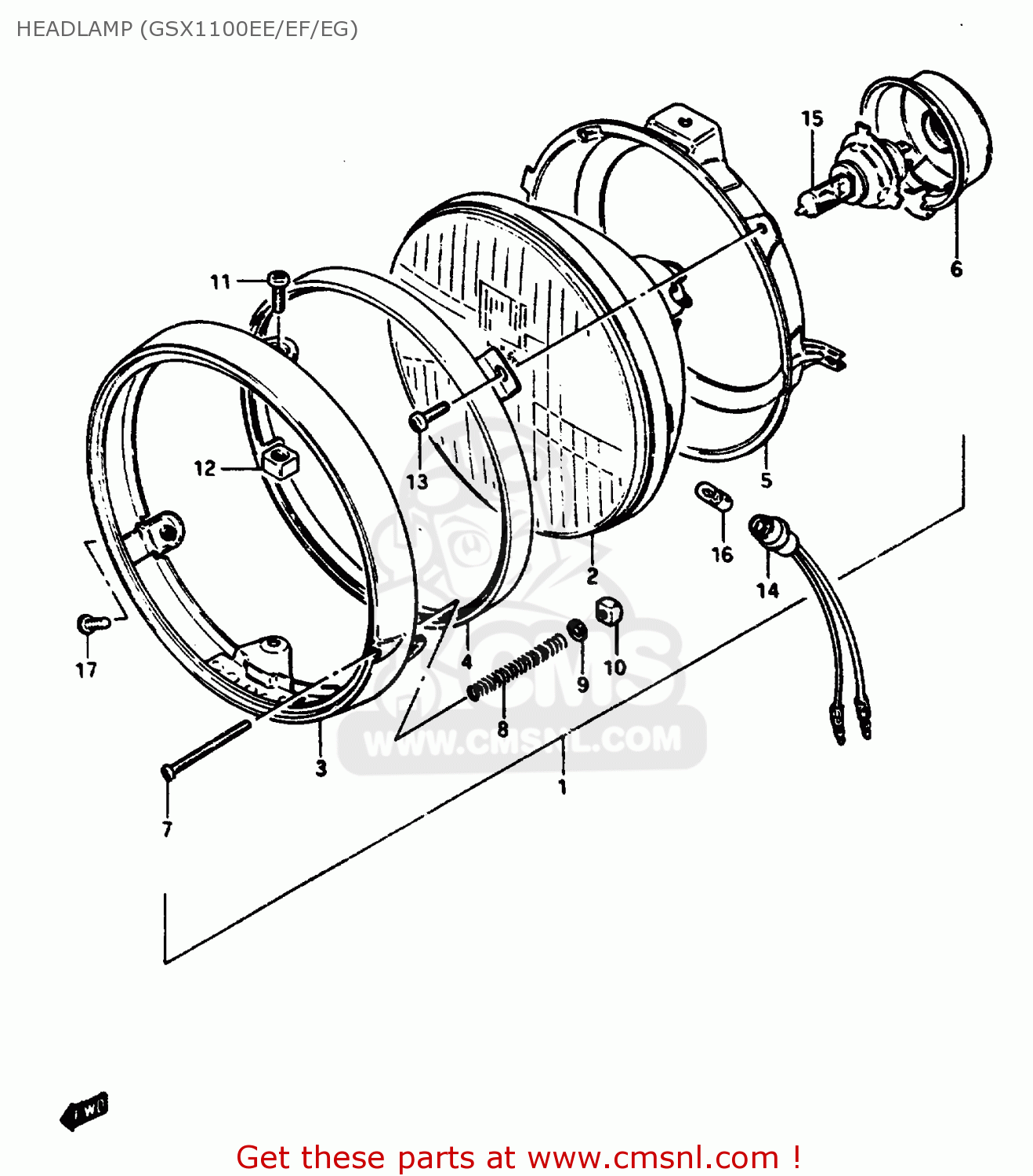

Headlamp (gsx1100ee/ef/eg) スキーマ GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

HEADLAMP (GSX1100EE/EF/EG) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)
HEADLAMP (GSX1100EE/EF/EG) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)
価格は EUR 単位です
参照
パーツ番号
説明
量
1-1
3510000A30999
参照: 1-1
E1,E6,E24
LAMP ASSEMBLY,HEAD
€ 0.00
1-2
3510000A20999
参照: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
3510000A40999
参照: 1-3
E4
HEADLAMP ASSY
€ 245.50
1-4
3510000A50999
参照: 1-4
E21,E22
HEADLAMP ASSY
€ 245.50
2-1
3512145930
参照: 2-1
E1,E6,E24
LAMP UNIT
3512145930
€ 143.50
2-2
3512145920
参照: 2-2
E2
UNIT
€ 156.50
2-3
3512145950
参照: 2-3
E4,E21,E22
LAMP UNIT
3512145950
€ 162.50
3
3511100A20
参照: 3
RIM,HEADLAMP
€ 66.00
4
3512745900
参照: 4
RETAINER
3512745900
€ 29.00
5
3513045900
参照: 5
RING,MOUNTING
3513045900
€ 126.00
6
3517349200
参照: 6
COVER,HEADLAMP SOCKET
3517349200
€ 13.00
7
3515145900
参照: 7
SCREW
3515145900
€ 4.00
8
3515445900
参照: 8
SPRING,HEADLAMP ADJUST
€ 3.50
9
3515727630
参照: 9
WASHER
3515727630
€ 2.50
10
3513545600
参照: 10
NUT
3513545600
€ 3.00
11
0211205128
参照: 11
SCREW
€ 1.50
12
3513545900
参照: 12
NUT
3513545900
€ 2.50
13
0211204088
参照: 13
SCREW
€ 1.00
14
3611845900
参照: 14
E2,E4,E21,E22
SOCKET,PARKING
3611845900
€ 12.00
15-1
0947112060
参照: 15-1
BULB(12V60/55W,H4)
0947112060
€ 7.50
15-2
0947112061
参照: 15-2
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
16
0947112063
参照: 16
E2,E4,E21,E22
BULB(12V4W)
0947112063
€ 5.50
17
0213205124
参照: 17
SCREW
€ 2.00
