Radiator

KAF950-FBF MULE4010 2011 USA / DIESEL 4X4

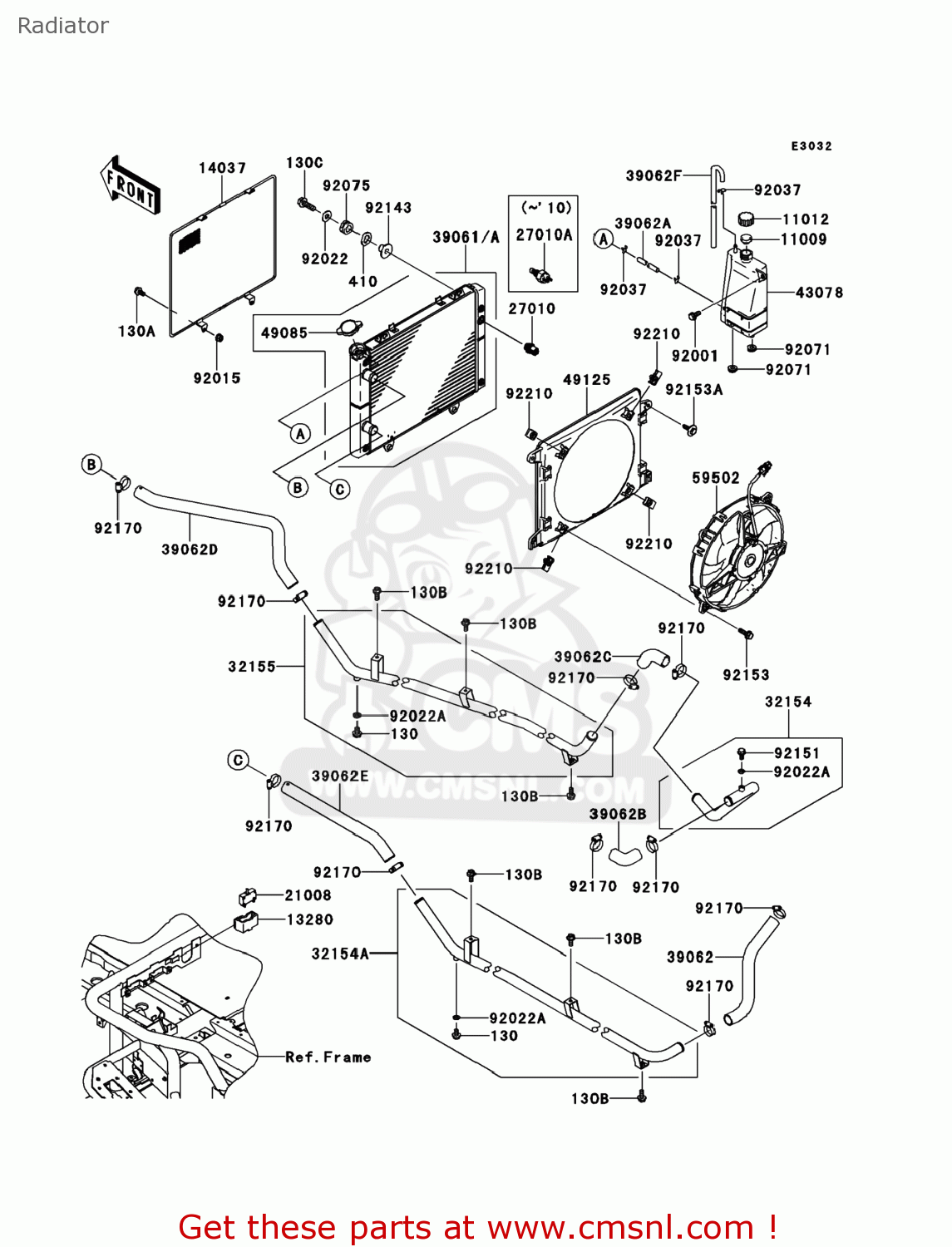

Radiator スキーマ KAF950-FBF MULE4010 2011 USA / DIESEL 4X4

Radiator KAF950-FBF MULE4010 2011 USA / DIESEL 4X4
Radiator KAF950-FBF MULE4010 2011 USA / DIESEL 4X4
価格は EUR 単位です
参照
パーツ番号
説明
量
11009
110091145
参照: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
参照: 11012
CAP
110121084
€ 1.50
130
130BB0610
参照: 130
BOLT-FLANGED,6X10
130BB0610
€ 1.50
130A
130BB0612
参照: 130A
BOLT-FLANGED,6X12
130BB0612
€ 1.50
130B
130BB0614
参照: 130B
BOLT-FLANGED,6X14
130BB0614
€ 1.50
130C
130BB0825
参照: 130C
BOLT-FLANGED,8X25,BLA
130BB0825
€ 2.50
13280
132800082
参照: 13280
HOLDER,BREAKER
132800082
€ 3.50
14037
140377506
参照: 14037
SCREEN
€ 120.00
21008
210080005
参照: 21008
BREAKER,FAN MOTOR
€ 17.50
27010
270100125
参照: 27010
SWITCH,FAN
€ 76.00
32154
321547608
参照: 32154
PIPE
€ 45.50
32154A
321547620
参照: 32154A
PIPE
€ 121.00
32155
321550006
参照: 32155
PIPE,RH FR
€ 122.00
39061A
390610205
参照: 39061A
RADIATOR-ASSY
€ 557.50
39062
390620032
参照: 39062
HOSE-COOLING
390620032
€ 24.00
39062A
390620266
参照: 39062A
HOSE-COOLING,5.5X10.5
€ 4.00
39062B
390627503
参照: 39062B
HOSE-COOLING
€ 8.50
39062C
390627504
参照: 39062C
HOSE-COOLING
€ 15.00
39062D
390627505
参照: 39062D
HOSE-COOLING
€ 30.50
39062E
390627506
参照: 39062E
HOSE-COOLING
€ 26.50
39062F
390627507
参照: 39062F
HOSE-COOLING,DRAIN
€ 28.00
43078
430780062
参照: 43078
RESERVOIR
430780062
€ 35.50
49085
490857501
参照: 49085
CAP-ASSY-PRESSURE
490857501
€ 19.50
49125
491250035
参照: 49125
SHROUD
€ 104.00
59502
595027501
参照: 59502
FAN-ASSY
€ 858.50
92001
920011860
参照: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92015
920151367
参照: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221317
参照: 92022
WASHER,8.5X20X1.6,BLA
920221317
€ 2.00
92022A
92022304
参照: 92022A
WASHER,PLAIN
92022304
€ 2.50
92037
92037147
参照: 92037
CLAMP,CHAIN OILER
92037147
€ 4.00
92071
920711115
参照: 92071
GROMMET,RESERVOIR TAN
920711115
€ 3.00
92075
92075294
参照: 92075
DAMPER RUBBER,HORN MT
92075294
€ 2.50
92143
921431946
参照: 92143
COLLAR
921431946
€ 3.50
92151
921511832
参照: 92151
BOLT,6X10
€ 1.50
92153
921537505
参照: 92153
BOLT
€ 2.50
92153A
921537506
参照: 92153A
BOLT
€ 2.50
92170
921701284
参照: 92170
CLAMP,CABLE
921701284
€ 7.00
92210
922101331
参照: 92210
NUT
€ 5.00
