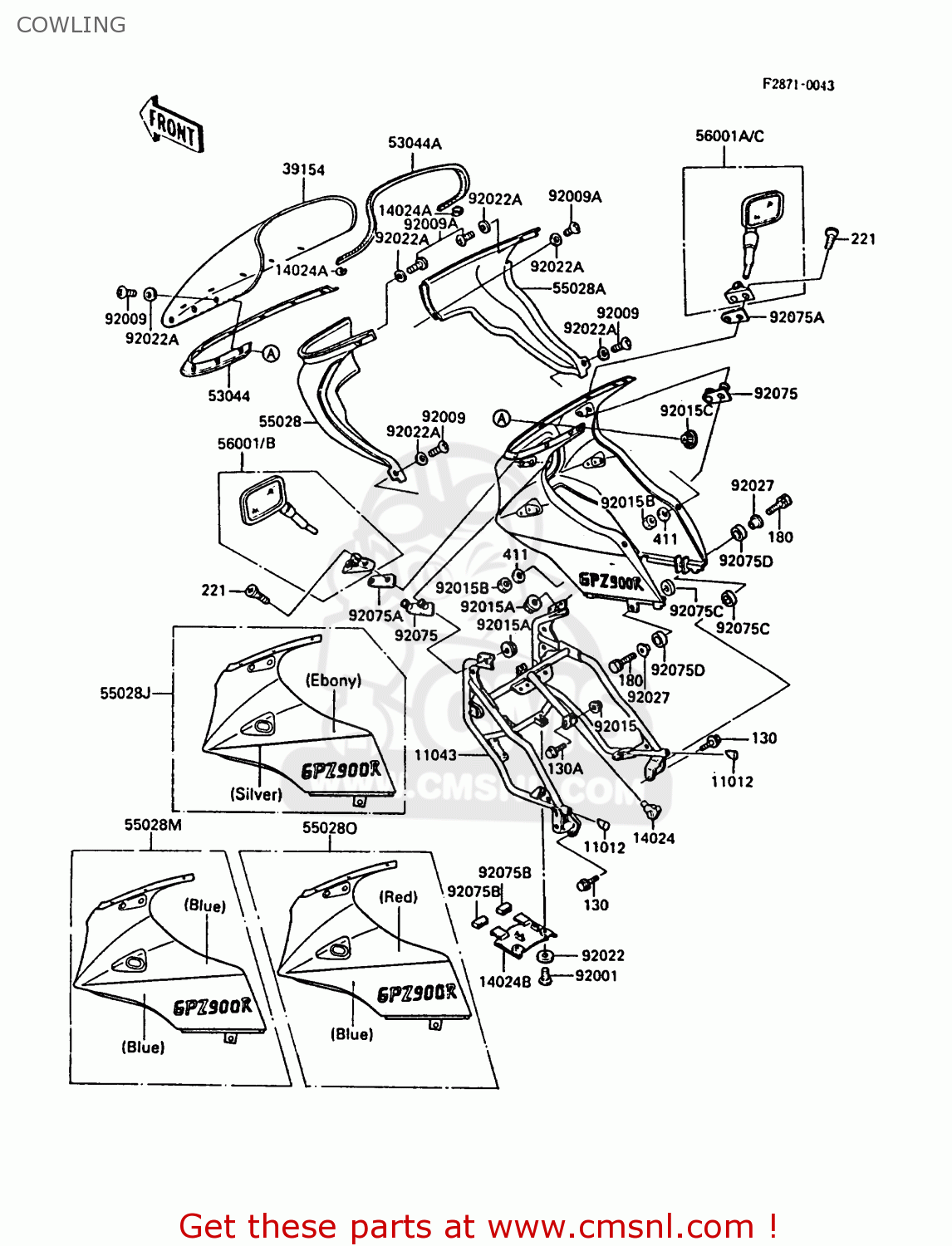

COWLING

ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST

Cowling スキーマ ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST

COWLING ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST
COWLING ZX900A3 GPZ900R 1986 EUROPE UK FG FR GR NR SD SP ST
価格は EUR 単位です
参照
パーツ番号
説明
量
11012
110121401
参照: 11012
CAP,COWLING BRACKET
110121401
€ 6.00
11043
110431452
参照: 11043
BRACKET,COWLING BODY
110431452
€ 280.50
14024
140251718
参照: 14024
COVER,COWLING BRACKET
140251718
€ 9.00
14024A
140251756
参照: 14024A
COVER,TRIM END
140251756
€ 4.50
14024B
140251823
参照: 14024B
COVER,HEAD LAMP
140251823
€ 25.00
39154
391541051
参照: 39154
WINDSHIELD
€ 211.00
53044
530441119
参照: 53044
TRIM,INNER COWLING
530441119
€ 37.00
53044A
530441120
参照: 53044A
TRIM,WINDSHIELD
530441120
€ 19.50
55028
550281066
参照: 55028
COWLING,UPP,INNER,LH
550281066
€ 50.00
55028A
550281067
参照: 55028A
COWLING,UPP,INNER,RH
550281067
€ 43.00
55028J
550285171S7
参照: 55028J
EUGRNRSDSPUK
COWLING,UPP,OUTER,EBO
€ 517.50
55028M
550285204S9
参照: 55028M
COWLING,UPP,OUTER,BLU
€ 504.00
55028O
550285215R5
参照: 55028O
EUFGFRNRSDSPST
COWLING,UPP,OUTER,RED
€ 741.50
56001
560011221
参照: 56001
FRUK
MIRROR-ASSY,LH
560011221
€ 58.50
56001A
560011222
参照: 56001A
FRUK
MIRROR-ASSY,RH
€ 58.50
56001B
560011224
参照: 56001B
EUFGGRNRSDSPST
MIRROR-ASSY,LH
560011224
€ 58.50
130
130J0812
参照: 130
BOLT-FLANGED
130J0812
€ 0.50
130A
130J0830
参照: 130A
BOLT-FLANGED,8X30
130J0830
€ 2.50
180
180B0625
参照: 180
BOLT-UPSET-WS
180B0625
€ 2.50
221
221C0630
参照: 221
SCREW-CSK-CROS,6X30
221C0630
€ 1.00
411
411B0500
参照: 411
WASHER-PLAIN,5MM
411B0500
€ 0.50
56001C
560011225
参照: 56001C
EUFGGRNRSDSPST
MIRROR-ASSY,RH
560011225
€ 58.50
92001
920011782
参照: 92001
BOLT,6X14
920011782
€ 2.50
92009
920091301
参照: 92009
SCREW,5X16
920091301
€ 0.50
92009A
920091335
参照: 92009A
SCREW,5X10
920091335
€ 2.50
92015
920151183
参照: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151193
参照: 92015A
NUT,FLANGED,6MM
920151193
€ 0.50
92015B
920151259
参照: 92015B
NUT,FLANGED,5MM
920151259
€ 2.50
92015C
920151343
参照: 92015C
NUT,5MM,COWLING
920151343
€ 2.50
92022
920221342
参照: 92022
WASHER,6.5X16X2
920221342
€ 2.50
92022A
920221521
参照: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
92027251
参照: 92027
COLLAR,L=13.1
92027251
€ 1.00
92075
920751492
参照: 92075
DAMPER,MIRROR
920751492
€ 4.50
92075A
920751500
参照: 92075A
DAMPER,MIRROR
920751500
€ 5.00
92075B
920751602
参照: 92075B
DAMPER,COWLING
920751602
€ 3.00
92075C
92075174
参照: 92075C
DAMPER,MALE
92075174
€ 2.50
92075D
92075175
参照: 92075D
DAMPER,FEMALE
92075175
€ 2.50
